MTD Accessories Sweeper 45-03201 (190-163A000) 190-163A000 (2018) Basic machine Ricambi

BAG-GRASS

Articolo numero:

AF-48388

Posizione:

DINNORM:

48388

Modell Year:

45-03201 (190-163A000) / 2017 45-03201 (190-163A000) / 2018

295.56 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

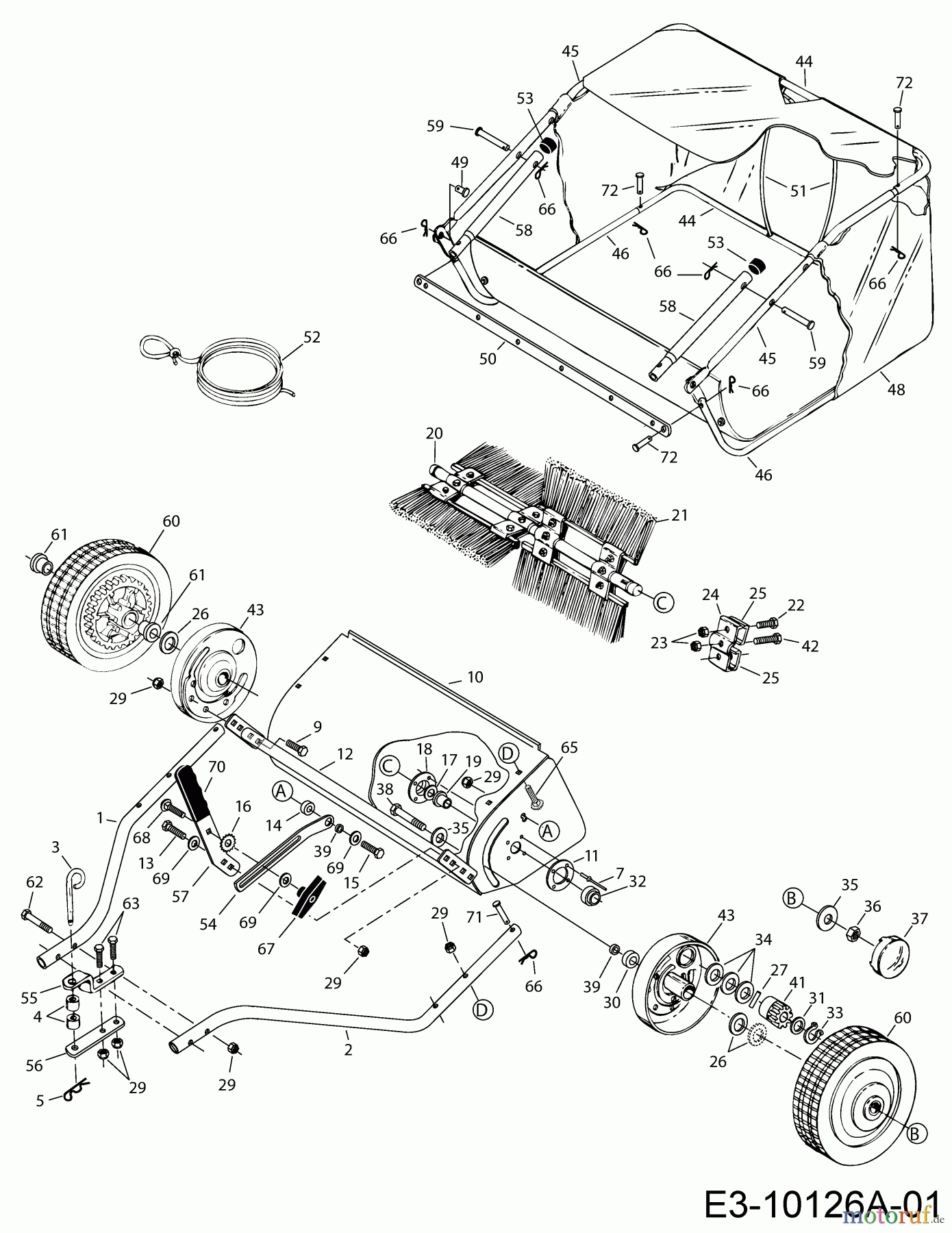

MTD Accessories Accessories garden and lawn tractors Sweeper 45-03201 (190-163A000) 190-163A000 (2018) Basic machine

Posizione	Articolo numero	Descrizione
1	AF-40614	LEG, RIGHT HAND
2	AF-40615	TUBE HITCH LH
3	AF-23353	CLEVIS PIN
4	AF-23368	SPACER
5	AF-43343	PIN-COTTER
7	AF-C-9M5732
9	AF-43182	BOLT,HX HD 5/16-18x3/4PLTD GR5
10	AF-66137	SWEEPER HOUSING ASSY. 42"
11	AF-23336	WASHER, SPECIAL
12	AF-66070	HEIGHT ADJUSTMENT TUBE
13	AF-43063	BOLT, HEX 5/16-18 x 1 GR 5
14	AF-25408	SLEEVE
15	AF-43840	BOLT,HEX HD 5/16-18x1-1/4GR5PL
16	AF-44732	WASHER, TOOTH LOOK 5/16" ID
17	AF-R19212113	WASHER,5/8" SAE
18	AF-1629-56	RETAINER-BRG
19	AF-44910	BUSHING, BRUSH SHAFT
20	AF-25850	SHAFT, BRUSH 42"HD
21	AF-48557	BRUSH 42" SWEEPER
22	AF-43012
23	AF-47189	HEX LOK NUT,NYLON UNSERT1/4-20
24	AF-23580	BRUSH RETAINER (DOUBLE)
25	AF-23581	BRUSH RETAINER (SINGLE)
26	AF-44008	WASHER FLAT
27	AF-47046	PIN DOWEL
29	AF-47810	HEX NUT
30	AF-44911	SPACER, .39 IDx1-1/4 ODx.50 LG
31	AF-42093	WASHER .59X.75X.025"
32	AF-46219	SPACER
33	AF-1650-21	RING, RETAINING .594 ID
34	AF-40001	Spacer
35	AF-141	WASHER
36	AF-1038	USE 712-0375
37	AF-2674-32	HUB CAP
38	AF-44961	BOLT ASSY-HEX
39	AF-23400	SPACER SHIFT KEY
40	AF-48652	DRIVE PINION R.H.
41	AF-48651	DRIVE PINION LH
42	AF-43661	BOLT, HEX 1/4-20x1 GR 5
43	AF-64559	Cover plate
44	AF-48587	HOPPER FRAME TUBE,REAR
45	AF-48466	AF-48466
46	AF-48726	LOWER HOPPER FRAME TUBE
48	AF-48388	BAG-GRASS
49	AF-48366	Bolt
50	AF-24949	FIXATION STRIP, OUTSIDE
51	AF-43926	ROD, HOPPER SUPT. 187x23"
52	AF-43737	ROPE, HOPPER BLK 1/4"x10'(W/
53	AF-44481	CAP, VINYL
54	AF-24979	STRAP,HT ADJUST
55	AF-23687	BRACKET, HITCH
56	AF-24192	BRACKET,HITCH(STRAIGHT)
57	AF-26243	HANDLE, HIGHT ADJUSTMENT
58	AF-40621	TUBE, CROSSOVER
59	AF-43513	CLEVIS PIN 3/8x3" PLTD
60	AF-44985	ASS`Y, WHEEL & TITE COMPLETE
61	AF-45088	BEARING, WHEEL (38" SWEEP)
62	AF-44292	BOLT ASSY-HEX
63	AF-44180	BOLT
65	AF-43681	BOLT, CARR 5/16-18x1-1/2
66	AF-43055	PIN-COTTER
67	AF-43720	KNOB, WING 5/16-18 (x-9966)
68	AF-44326	BOLT, CARR 5/16-18x1" PLTD GR5
69	AF-43081	WASHER, 5/16" STD WRT PLTD
70	AF-43943	GRIP HT. ADJ 32"/38"
71	AF-46867	PIN, CLEVIS 1/4X1-3/4
72	AF-48365	Bolt
