ASS`Y, CHANNEL SUB

Articolo numero:

AF-63284

Posizione:

DINNORM:

AF-63284

Modell Year:

für 700 Serie ab 1998 bis 2003 / 1998 für 700 Serie ab 1998 bis 2003 / 1999 für 700 Serie ab 1998 bis 2003 / 2000 für 700 Serie ab 1998 bis 2003 / 2001 für 700 Serie ab 1998 bis 2003 / 2002 für 700 Serie ab 1998 bis 2003 / 2003

non più disponibile

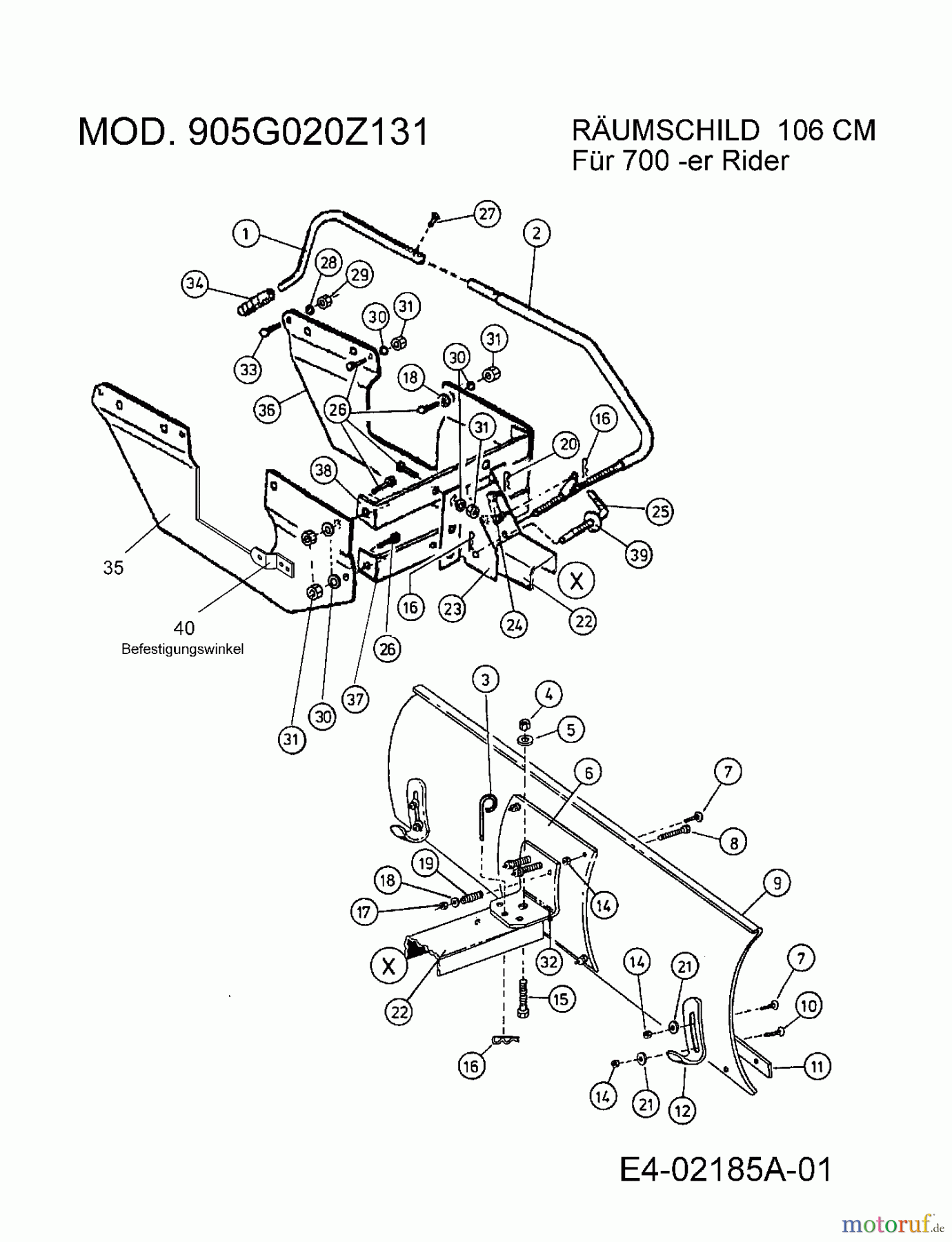

MTD Accessories Accessories garden and lawn tractors Snow blade for 700 series since 1998 to 2003 905G020Z131 (2000) Basic machine

Posizione	Articolo numero	Descrizione
1	AF-46553	HANDLE, LIFT UPPER (PAINTED)
2	AF-63283	ASS'Y, LIFT HANDLE
3	AF-43038	PIN, PIVOT LOCK 3/8 X 1-1/2
4	712-0384	NUT:HEXLK:1/2-13:GRA:CTRLK
5	736-0179	WASH:FLAT:.531x1.1250x.100
6	AF-23061	PLATE-REINFORCEMENT
7	710-0451	BOLT:CRG:5/16-18:.750 GR1
8	AF-43036	HEXAGON BOLT
9	AF-23114	BLADE-42"
10	710-0276	SCREW:CRG:SPL:5/16-18:1.00
11	AF-23117	PLATE, WEAR STRIP 42"
12	AF-23070	SKID
14	712-0158	NUT:HEXLK:5/16-18:GRA:CTRLK
15	710-0474	SCREW-HEX
16	714-0101	PIN:COT:INT:.08 X 1.42
17	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK
18	736-0258	WASHER:FLAT:.385 x 1.0 x.135
19	AF-43035	Spring
20	714-0121	PIN-COTTER
21	AF-43081	WASHER, 5/16" STD WRT PLTD
22	AF-63284	ASS`Y, CHANNEL SUB
23	AF-24023	BRACKET-PIVOT SUPPORT
24	AF-63034	BRACKET
25	AF-46065	PIN-DOWEL 1/4 X 1/2
26	710-0253	SCREW-HEX
27	AF-44818	BOLT SPINDLE
28	736-0329	WASHER:LOCK:1/4:REGULAR DUTY
29	712-0287	NUT:HEX:1/4-20:GR2
30	736-0169	WASH:LOCK:3/8:REGULAR DUTY
31	712-0798	NUT:HEX:3/8-16:GR2
32	AF-23115	PLT:ANGLE
33	712-0252	HEX. BOLT
34	720-0204	GRIP:1.0 ID x 4.7 LG
35	AF-24134	FRAME SUPPORT BRACKET (RH)
36	AF-24133	FRAME SUPPORT BRACKET (LH)
37	AF-24388	SUPPORT BRKT. (UPPER)
38	AF-24389	SUPPORT BRKT. (UPPER)
39	R19171614	FL.WASHER
40	092.48.542	BRACKET-SHIFT LEVER
