MTD REX-COMBI 51 SSL 126-3580 (1986) Basic machine Ricambi

SCR:AB

Articolo numero:
710-0841
Posizione:
35
Modell Year:
REX-COMBI 51 SSL / 1986
DINNORM:
#10-16:0.750:CSKPHI
2.63 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

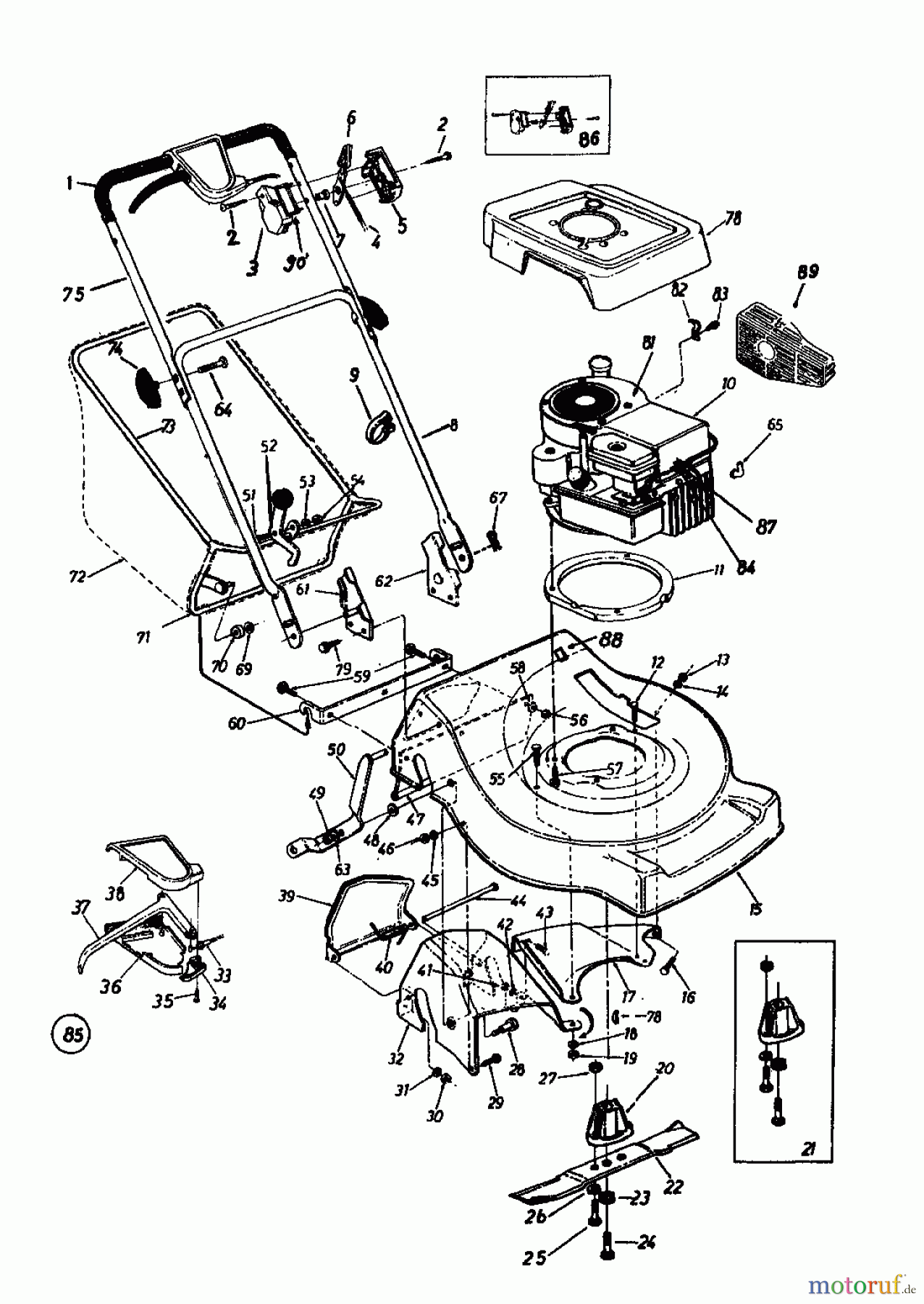

MTD Petrol mower self propelled REX-COMBI 51 SSL 126-3580 (1986) Basic machine
PosizioneArticolo numeroDescrizione
1 718-0145HANDLE SOFT GRIP(14848/14348)
2 710-0796SCREW
3 731-0526PANEL HALF-CONTROL
4 746-0633
5 731-0523PANEL HALF-CONTROL
6 731-0528
7 731-0524PIN-CONTROL DISC
8 739-0505
9 726-0192
11 13773
12 MTD SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
13 712-0287NUT:HEX:1/4-20:GR2
14 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
15 16109DECK ASSEMBLY-20IN-R
16 710-0167SCR:CRG:1/4-20:.50:
17 14014BAFFLE-CHUTE-RR-LH
18 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
19 712-0287NUT:HEX:1/4-20:GR2
20 719-0262ADAPTER-BLADE
21 753-0348KIT-BLADE ADAPTOR
22 MTD 742-0125
23 MTD WASHER:LOCK:3/8:HEAVY DUTY736-0217WASHER:LOCK:3/8:HEAVY DUTY
24 710-0331HHCS:3/8-24:2.25:GR5:STD
25 MTD HEX SCR SPECIAL710-0888HEX SCR SPECIAL
26 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
27 712-0123NUT:HEX:5/16-24:GR2
28 738-0430SHLD-SCR: .50 x .685:3/8-16
29 710-0167SCR:CRG:1/4-20:.50:
30 712-0287NUT:HEX:1/4-20:GR2
31 730-0329
32 14235BAFFLE-CHUTE-RR-RH
33 746-0463
34 731-0619
35 710-0841SCR:AB
36 731-0618
37 731-0620LVR:SHFT
38 731-0617
39 13407GUARD-CHUTE
40 732-0346SPRING-TORSION
41 712-0287NUT:HEX:1/4-20:GR2
42 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
43 710-0167SCR:CRG:1/4-20:.50:
44 738-0386PIN-HINGE
45 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
46 712-0287NUT:HEX:1/4-20:GR2
47 731-0665SHIELD-TRAIL
48 736-0219WASH:BELL:.389 x 1.120 x.030
49 712-0342NUT-HEX CENTER L-JAM
50 14931BRACKET ASSY-PIVOT
51 MTD SCR:SHLD:.435 X.178-5/16X.56738-0140SCR:SHLD:.435 X.178-5/16X.56
52 13435VERRIEGELUNGSHEBEL ZUS.
53 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
54 712-0267NUT:HEX:5/16-18:GR2
55 710-0206HHCS:1/4-20:.88:GR2:STD
56 MTD NUT:SEMS:1/4-20712-0271NUT:SEMS:1/4-20
57 710-0654
58 736-0211WASHER:FLAT:.285 x 1.250 x.060
59 MTD SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
60 14012ADAPTER-GRASSCATCHER
61 MTD USE 12296B-063712296USE 12296B-0637
62 MTD BRACKET-ASSI HDL12297BRACKET-ASSI HDL
63 MTD SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
64 710-0405USE 710-1174
65 735-0639INSULATOR-SPARK PLUG
67 MTD PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
69 726-0100CAP
70 731-0430ROLLER-PLASTIC
71 13924FRAME-LOWER
72 764-0171
73 749-0278FRAME-CATCHER-UPR
74 09966
75 749-0437USE 749-0437A
78 731-0630HOOD
79 710-0892SCR:ABSEMS:L1/4-14:0.625:HXLWS
81 726-0219SCREW-SNAP-ON
82 12894
83 710-0429HEX B-TAPP SCR #10 X .38"
84 751-0369CLAMP-CONDUIT
85 753-0362CLUTCH ASSY
86 753-0360KIT-THROTTLE CONTROL
87 MTD SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
88 731-0564PLUG
89 751-0408DUCT,HEAT SHIELD
90 779-0063
