MTD ROTOMAX 53 S 128-8720 (1988) Basic machine Ricambi

NUT:HEXLK:1/4-20:GR8:NYLON

Articolo numero:
712-0324
Posizione:
83
DINNORM:
FINISH:701-01000
Modell Year:
ROTOMAX 53 S / 1988
3.36 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

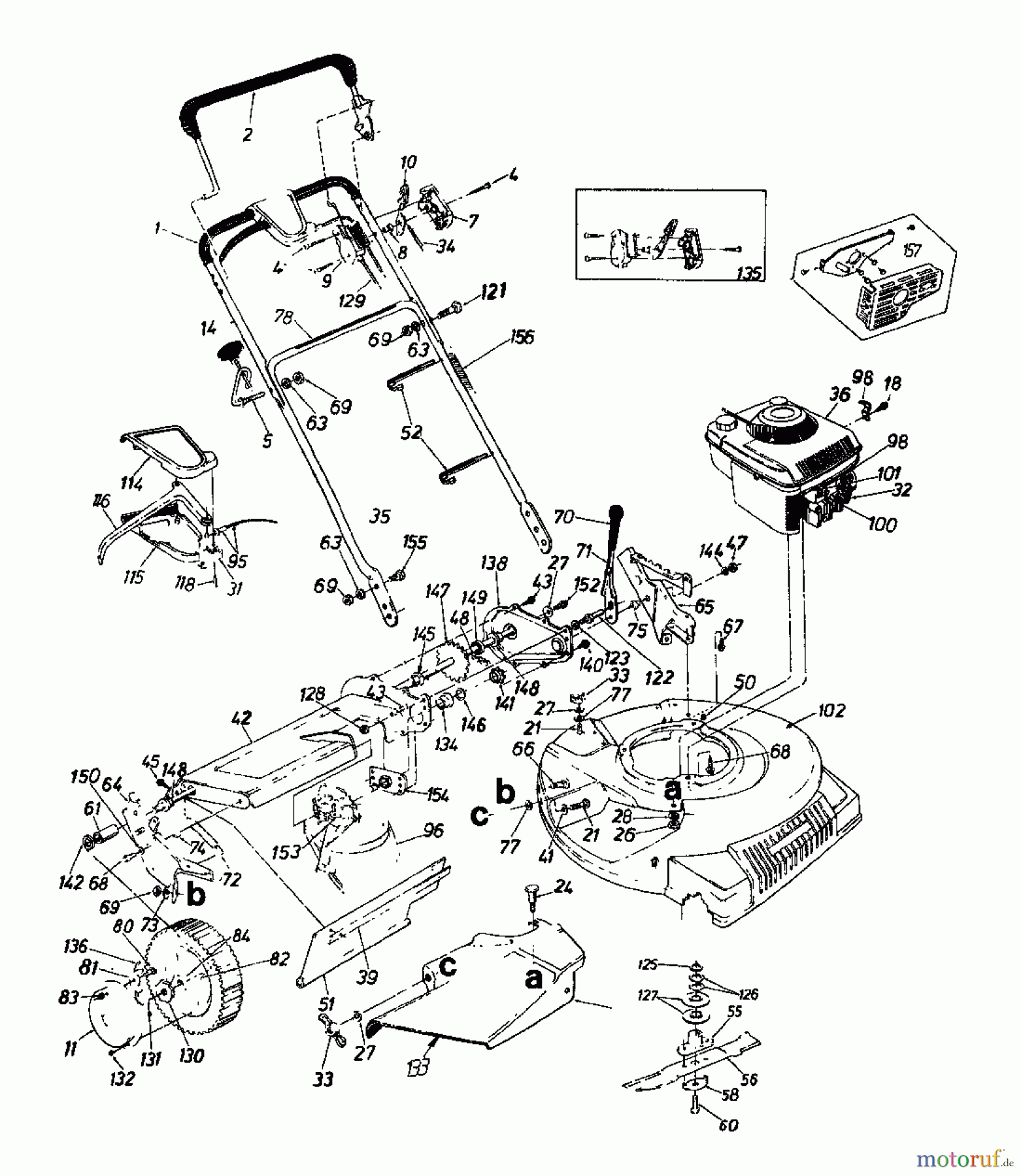

MTD Petrol mower self propelled ROTOMAX 53 S 128-8720 (1988) Basic machine
PosizioneArticolo numeroDescrizione
1 718-0145HANDLE SOFT GRIP(14848/14348)
2 731-0609BAIL-LH
4 710-0796SCREW
5 710-0842
7 731-0817
8 731-0524PIN-CONTROL DISC
9 731-0816
10 731-0528
11 10647HUB CAP
14 749-0437USE 749-0437A
18 710-0429HEX B-TAPP SCR #10 X .38"
21 MTD FLAT HEADED SCREW710-0134FLAT HEADED SCREW
24 738-0704SCREW-SHLD
26 712-0287NUT:HEX:1/4-20:GR2
27 MTD WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
28 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
31 731-0619
32 735-0639INSULATOR-SPARK PLUG
33 712-0109NUT-INS WING L
34 746-0672THROTTLE CABLE
35 749-0726HANDLE-LOWER
39 14835
41 736-0204WASH:FLAT:.344 X .620 X .033
42 17055
43 710-0352SCR:B-1/4-14:.375:HWINDWSH
45 710-0776
47 712-0296NUT:JAMLK:3/8-24
48 713-0353#48 CHAIN 1/2 PITCH
50 731-0564PLUG
51 731-0672
52 726-0240TIE:CBL:3/16:7.0 LG
55 748-0324SHOULDER SPACER
56 742-0490
58 736-0415
60 MTD SCRE.HHCS:7/16-20:1.50:GR5:STD710-0757SCRE.HHCS:7/16-20:1.50:GR5:STD
61 748-0190SPCR:.508 ID x.750 OD x.68
63 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
64 16136
65 16137
66 710-0260BOLT-CARRIAGE
67 710-0603SCR:B:5/16-12:0.500:HXINDWSH
68 710-0654
69 712-0267NUT:HEX:5/16-18:GR2
69 710-0654
70 720-0223GRIP: .5 ID x 3.45
71 732-0473
72 732-0481SPRING-EXTENSION
73 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
74 750-0526SPCR:.380 ID X .50 OD X .265
75 750-0624SPCR:SHLDR:.387IDx.50ODx1.50LG
77 726-0233NUT:PUSH:.25 ID X .50 OD
80 738-0137SCREW-SHLD
81 748-0188
82 734-1412ASS'Y, WHEEL & TIRE (A-F)
83 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
84 741-0180BEARING-BALL
95 746-0650CABLE-CLUTCH
96 MTD BELT-V754-0343BELT-V
98 12894
100 710-0436SCR:B:#10-16:0.625:HEX
101 751-0463CLAMP-CONDUIT
102 16747DECK ASSEMBLY-21IN
114 731-0617
115 731-0618
116 731-0620LVR:SHFT
118 710-0841SCR:AB
121 710-0405USE 710-1174
122 711-0805PIN:SHLD:3/8-24 x 1.43 LG
123 MTD WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
125 736-0409WASHER-SERRATED
126 736-0408
127 756-0502PULLEY HALF-SERRATED
128 MTD NUT:JAM:3/8-24:GR5712-0711NUT:JAM:3/8-24:GR5
130 MTD RATCHET WHEEL748-0318RATCHET WHEEL
131 MTD PIN:COT:SPLIT:1/8 X 1.0714-0115PIN:COT:SPLIT:1/8 X 1.0
132 710-0748SCR:AB:#12-14:0.500:PANPHI
133 731-0884DEFLECTOR-SIDE CHUTE
134 741-0413FLANGE BEARING
135 753-0430
136 10622
138 17053
140 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
141 713-0400SPROCKET-7T
142 736-0326WASH:FLAT:.510 x 1.000 x.125
144 MTD WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
145 741-0522BEARING-HEX FLANGE
146 736-0336WASH:SHIM:.625x1.000x.030:HD
147 738-0719
148 MTD BRG:FLG:HEX:.506 IDX .590LG741-0324BRG:FLG:HEX:.506 IDX .590LG
149 736-0160WASH:FLAT:.530x.930x.050
150 MTD WASHER:FLAT:.385 x 1.0 x.135736-0258WASHER:FLAT:.385 x 1.0 x.135
152 710-0751HHCS:1/4-20:.620:GR5:STD
153 717-0417
154 16500
155 710-0323SCREW
156 731-0759CDT:CNVLT:.625 I.D.
