Spareparts

NUT:HEXLK:M6-1:NYLON:DIN 985

Articolo numero:

712-0691

Posizione:

Description:

M6 DIN 985

Modell Year:

SP 48 HWO / 2007 4845 SPHO / 2007 SP 48 De Luxe / 2007 SP 48 De Luxe / 2008 SP 48 GHWT / 2007 SP 48 HWM / 2007 SP 48 HWM / 2008 SP 48 HWM-HQ / 2008 SP 48 HWMO-HQ / 2008 SP 48 HWO / 2007 SP 48 HWO / 2007 SP 48 HWO / 2008 SP 48 HWO 55 / 2007 SP 48 HWO / 2

DINNORM:

MTD SPEC-100015 24.1426.14

2.63 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

in magazzino

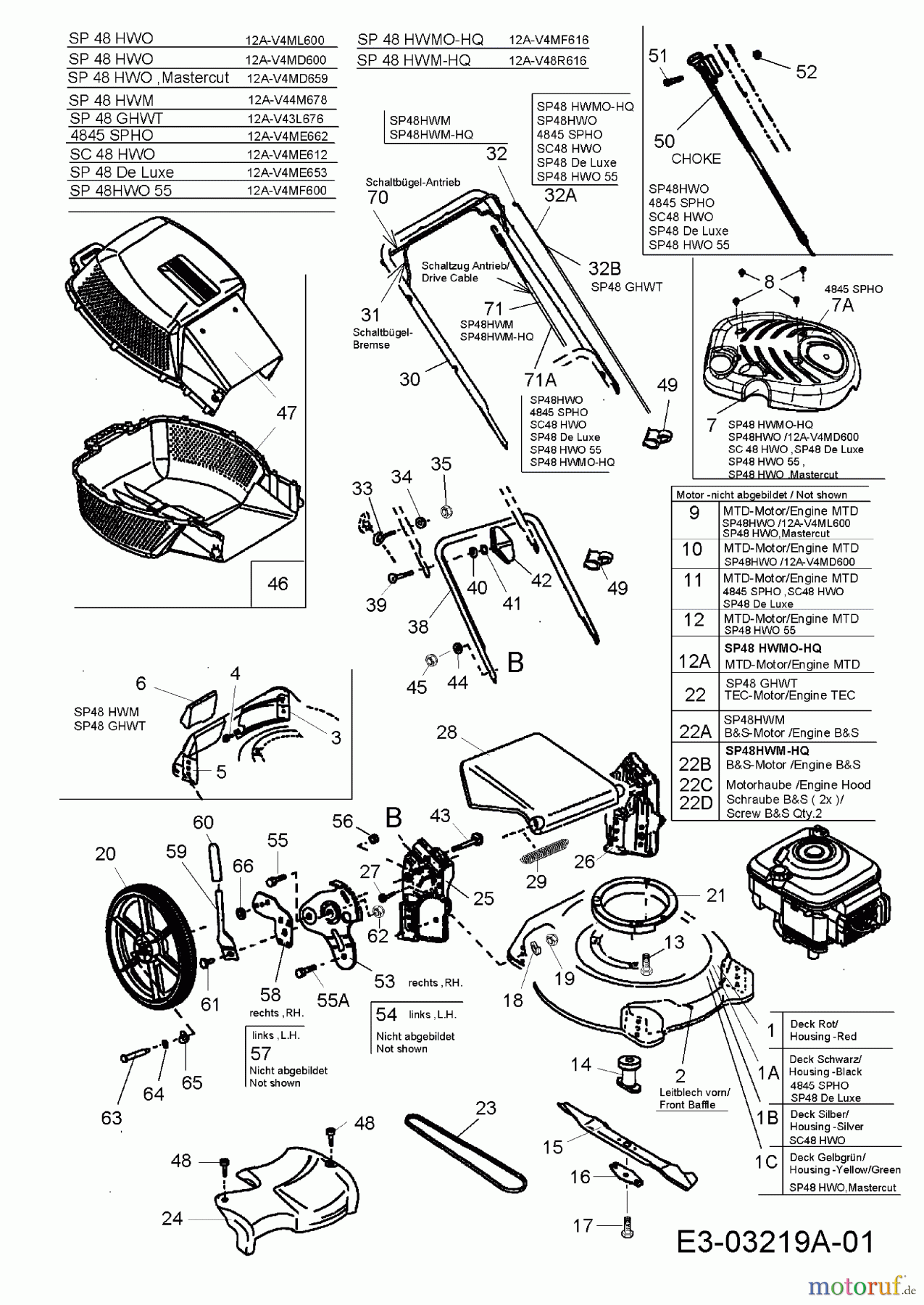

MTD Petrol mower self propelled SP 48 HWMO-HQ 12A-V4MF616 (2008) Basic machine

Posizione	Articolo numero	Descrizione
1	782-0357638	MOWER HOUSING 19"
1A	782-0357691	MOWER HOUSING 19"
1B	782-0357-SM
1C	782-0357696	MOWER HOUSING 19"
2	782-5025637	FRONT BAFFLE
3	782-5026637	REAR BAFFLE
4	710-1017	TAP SCREW:1/4-14:.625:TRUSTRXI
5	782-5004637	REAR MULCH BAFFLE
6	731-2386	REAR MULCHING PLUG
7	731-05400	SHRD:ENG:M1 BLACK
7A	731-05982	SHRD:ENG:M1 OYSTER GRAY EU
8	710-04577	SCR:MACH:M4-.7:10.00 PANPHI
9	752Z1P61MH	ENGINE MTD
10	752Z1P61FHA	ENGINE 123 CC OHV VERTIC SHAFT
11	752Z1P65FHA	ENGINE MTD
12	752Z1P70FHA	ENGINE 173 CC OHV VERTIC SHAFT
12A	752Z1P70MH	173 CC OHV VERTIC SHAFT
13	710-1008	SCR:TTSEMS:3/8-16:1.875:HXLWSH
14	748-04015A	ADAP:BLADE:21" ONE PIECE
15	742-04018A	BLADE:48cm:V-DECK GAS
16	736-0524B	BLADE BELL SUPP. SPRING STEEL
17	710-1257	HHCS:3/8-24:2.50:GR8:SPEC
18	736-0757	LOCK WASHER
19	712-0690	NUT:HEX:M8-1.25 DIN 934
20	734-1864	REAR WHEEL ASSY.
21	631-0142	SPCR ASM:ENG:RING
22	752T362076	B-MTR TEC LV195 EA 500-362076
22A	752B0193B1	ENGINE B&S
22B	752B1960B1	ENGINE B&S QUANTUM
22C	751B698269	HOOD, ENGINE
22D	751B095050	SCREW B&S
23	754-0346	V-BELT 3/8 x 30.0 - BLACK
24	731-2406	TRANSMISSION COVER
25	731-2382A	HANDLE BRKT. R.H.
26	731-2381A	HANDLE BRAKET L.H.
27	710-1017	TAP SCREW:1/4-14:.625:TRUSTRXI
28	731-2380637	REAR FLAP/DEFLECTOR
29	732-0910	SPRING
30	749-04083C	HNDL:UPR:EXPORT
31	747-1161A637	BRAKE BAIL
32	746-1113	CBL:CONT:37.750 LG
32A	746-04300	CBL:CONT:ERS:52.0"
32B	746-04082	BRAKE CABLE 52.36"
33	782-7627A	BOLT:EYE:M6
34	736-0668	WASH: FLAT: 6.4x12x1.6
35	712-0691	NUT:HEXLK:M6-1:NYLON:DIN 985
38	749-04314	HNDL:LWR:EXPORT
39	710-1719	BOLT:CRG:M8x1.25x50 DIN 603
40	736-0700	WASH:FLAT:8.4 x 16 x 1.60
41	736-0689	WASH:LOCK:B 8.4:DIN 6798
42	720-0368	WING NUT
43	710-1718	SCR:CRG:M8-1.25:35 LG
44	736-0451	WASH:SDL:.320 x.93 x.060
45	712-0692	NUT:HEXLK:M8-1.25 NYLON DIN985
46	818-61137	GRASS CATCHERCPL.
47	731-2379637	GRASSBAG: HALF PART
48	710-1650	FLANGE SCREW .30X.46XTT:#12-24
49	731-2422	CABLE GUIDE
50	746-04313A	CHOKE CABLE:39.0
51	710-0606	SCREW HHCS:1/4-20:1.50:GR5:STD
52	712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
53	782-0653637	ADJUST. PLATE R.H.
54	782-0652637	BAR:PIVOT:LH HI-WHEELER
55	710-1681	HHCS:M8-1.25:20.00:GR8.8:STD
55A	710-1682	SCR:M8-1:25.00 LG:DIN 933
56	712-0692	NUT:HEXLK:M8-1.25 NYLON DIN985
57	14766	BAR-PIVOT-LH
58	14765	BAR-PIVOT-RH
59	732-0803A	LVR:SPR:SGL
60	720-0230	GRIP:FOAM: .50 ID X 3.54" LG
61	738-0507B	SCR:SHLDR: .500 DIA X .434
62	712-0130	NUT:HEXLK:3/8-16:GR8:NYLON
63	738-0481A	SCREW-SHLDR 0625X2.62:3/8-16
64	736-0456	WASH:FLAT:.510 x 1.373 x.048
65	736-0182	WASHER:SPR:.500 x 1.00 x.022
66	736-0105	SPRING WASHER .401 x.870 x.063
70	747-1214637	BAIL:OPER
71	746-04241	CBL:CONT:52.5:SNAP IN FWD
71A	746-04306	CBL:CONT:DRIVE:V-DECK MTD
