MTD SP 53 GHW 12A-568R678 (2004) Basic machine Ricambi

BOWDEN CABLE

Articolo numero:
746-04112
Posizione:
22
DINNORM:
746-04112
Modell Year:
SP 53 GHW / 2004
28.67 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

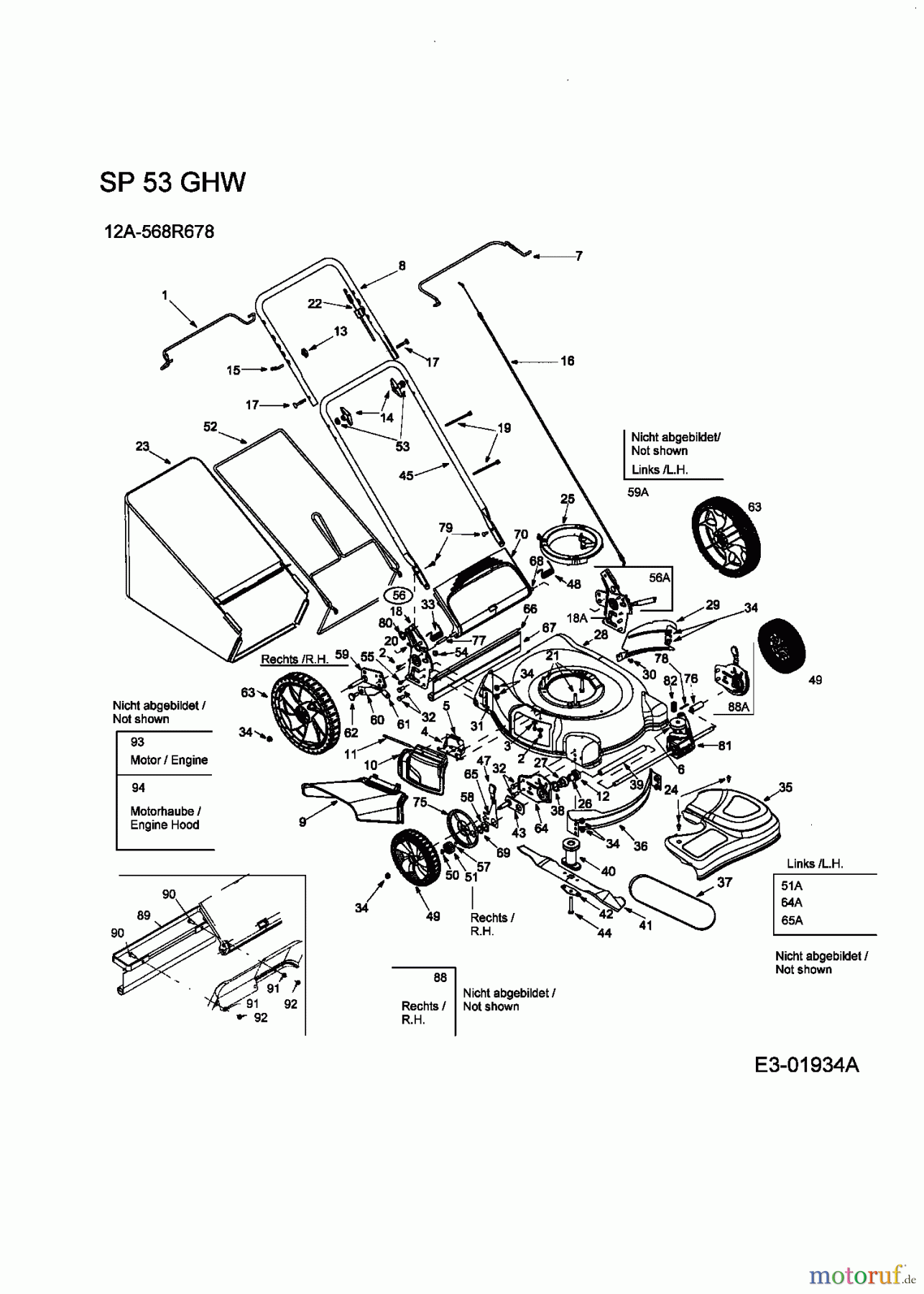

MTD Petrol mower self propelled SP 53 GHW 12A-568R678 (2004) Basic machine
PosizioneArticolo numeroDescrizione
1 747-1214BAIL:DR:22" SD DIS
2 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
3 MTD WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
4 17032AADAPTER:DEFLECTOR CHUTE
5 732-1014TORSION SPRING .290 ID x 1.68
6 756-04017PULLEY-INPUT 58MM DIA COMP.
7 747-1161ABRAKE BAIL
8 749-1092AUPPER HANDLE
9 MTD EJECTION FLAP731-04177EJECTION FLAP
10 MTD PLUG ASM:MULCH:HINGED687-02055PLUG ASM:MULCH:HINGED
11 747-0710PIN:HGE:.250 DIA x 4.8 LG
12 732-0708BEARING RETAINER
13 720-0279WING NUT
14 720-0284WING NUT
15 710-1205BOLT:EYE:1/4-20: BENT ROPE GDE
16 MTD CABLE-BRAKE CLUTCH746-1132CABLE-BRAKE CLUTCH
17 710-1174BOLT:CRG:5/16-18:2.0 CRVD
18 687-02033987-02033 s. BG 687-02057!
18A 687-02031687-02031 / 987-02031
19 726-0240TIE:CBL:3/16:7.0 LG
20 MTD PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
21 710-1008SCR:TTSEMS:3/8-16:1.875:HXLWSH
22 746-04112BOWDEN CABLE
23 664-04007GRSBG 21" 400/500 SER GENERIC
24 MTD FLANGE SCREW .30X.46XTT:#12-24710-1650FLANGE SCREW .30X.46XTT:#12-24
25 631-0075BSPCR ASM:ENG:FWD
26 741-0604ABRG:SLEV:.50ID
27 748-0355BEARING SUPPORT
28 787-01006DECK SHELL 21"TOPDIS W/O ICON
29 782-5003BAFFLE-FR
30 MTD TAP SCREW:1/4-14:.625:TRUSTRXI710-1017TAP SCREW:1/4-14:.625:TRUSTRXI
31 782-5004ALEITBLECH MULCH
32 710-0216HHCS:3/8-16:.75:GR5:STD
33 732-04090Spring
34 MTD NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
35 731-04584USE 17058A-0637
36 782-5002A
37 754-0637AV-BELT 3LX31.25
38 MTD WASH:WAVE 1.000 x 1.5000 x.029736-0447WASH:WAVE 1.000 x 1.5000 x.029
39 750-04178SPACER
40 MTD ADAP:BLADE:21" ONE PIECE748-04015AADAP:BLADE:21" ONE PIECE
41 MTD BLADE 21" MULCHING W/STAR742-0741BLADE 21" MULCHING W/STAR
42 736-0524ABLADE BELL SUPPORT
43 687-02044PLATE ASM-PIVOT HGT ADJ
44 MTD HHCS:3/8-24:2.50:GR8:SPEC710-1257HHCS:3/8-24:2.50:GR8:SPEC
45 749-0928A
47 MTD KNOB:ADJ:HEIGHT720-0426KNOB:ADJ:HEIGHT
48 732-04089Spring
49 MTD DRIVE WHEEL 8x1.8 GREY634-0190DRIVE WHEEL 8x1.8 GREY
50 716-0865RING-SNAP
51 717-1762GEAR:SPUR:14T RH
51A 717-1761GEAR:SPUR:14T LH
52 747-04080FRAME GRASSBAG
53 736-0451WASH:SDL:.320 x.93 x.060
54 712-3005NUT:FLGLK:3/8-16:GR5
55 MTD SCR:TT:1/4-20 x.625:HXINDWH710-1652SCR:TT:1/4-20 x.625:HXINDWH
56 687-02056BRKT ASM-HANDLE RH WITH ADJ
56A 687-02057BRKT ASM-HANDLE LH WITH ADJ
57 MTD DOWEL PIN:H.G.PROD. 3/16 x 3/4715-0221DOWEL PIN:H.G.PROD. 3/16 x 3/4
58 736-0474WASHER
59 687-02039ARM ASM PIVOT RH
59A 687-02040ARM ASM PIVOT LH
60 732-0866HEIGHT ADJ LEVER
61 720-0312HANDLE GRIP
62 MTD SCR:SHLDR: .500 DIA X .434738-0507BSCR:SHLDR: .500 DIA X .434
63 MTD WHEEL ASM COMP734-04082WHEEL ASM COMP
64 782-0512BHEIGHT ADJUSTING PLATE RIGHT
64A 782-0511APLT:ADJ:LH HEIGHT
65 732-0706LEVER-SPRING
65A 732-0707LH. ADJUSTING LEVER
66 732-0700LINK, PARALLEL
67 731-1236ATRAILSHIELD:4.30 x 17.66 LG
68 747-0996ROD, HOPPER BAG (42" SWEEPER)
69 716-0102RING SNAP:1.00 DIA SHAFT
70 731-04134DOOR-REAR 21"
75 782-7551WHEEL DUST CAP
76 750-1166SPACER
77 750-04162spacer
78 715-04011PIN:ROLL:5mmx26mm
79 MTD SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
80 MTD WING NUT712-0397WING NUT
81 618-0657TRANSMISSION
82 MTD COMPRESSION SPRING732-1043COMPRESSION SPRING
88 682-0512AHEIGHT ADJUSTING CPL. RIGHT
88A 682-0511AHEIGHT ADJUSTING CPL. LEFT
89 787-01137BRACKET:EXTN 21" POWDER BLACK
90 710-1667ASCREW-CSK PHIL HD
91 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
92 712-0267NUT:HEX:5/16-18:GR2
93 752B1724B1ENGINE B&S QUANTUM
94 751B281440SHROUD ENG-BLACK-TIE
