Helington H 105 HK 13AG71KN686 (2018) Hydrostatic gearbox, Belt, Pedals from 01.10.2018 Ricambi

Name: PLT:SPR:ANCHOR:HYDRO 700
Price: 8.93 EUR

PLT:SPR:ANCHOR:HYDRO 700

Articolo numero:

783-06582

Posizione:

DINNORM:

FINISH:LACKIERT

Modell Year:

220-105 TWIN H / 2018 H 105 HK / 2018

11.97 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

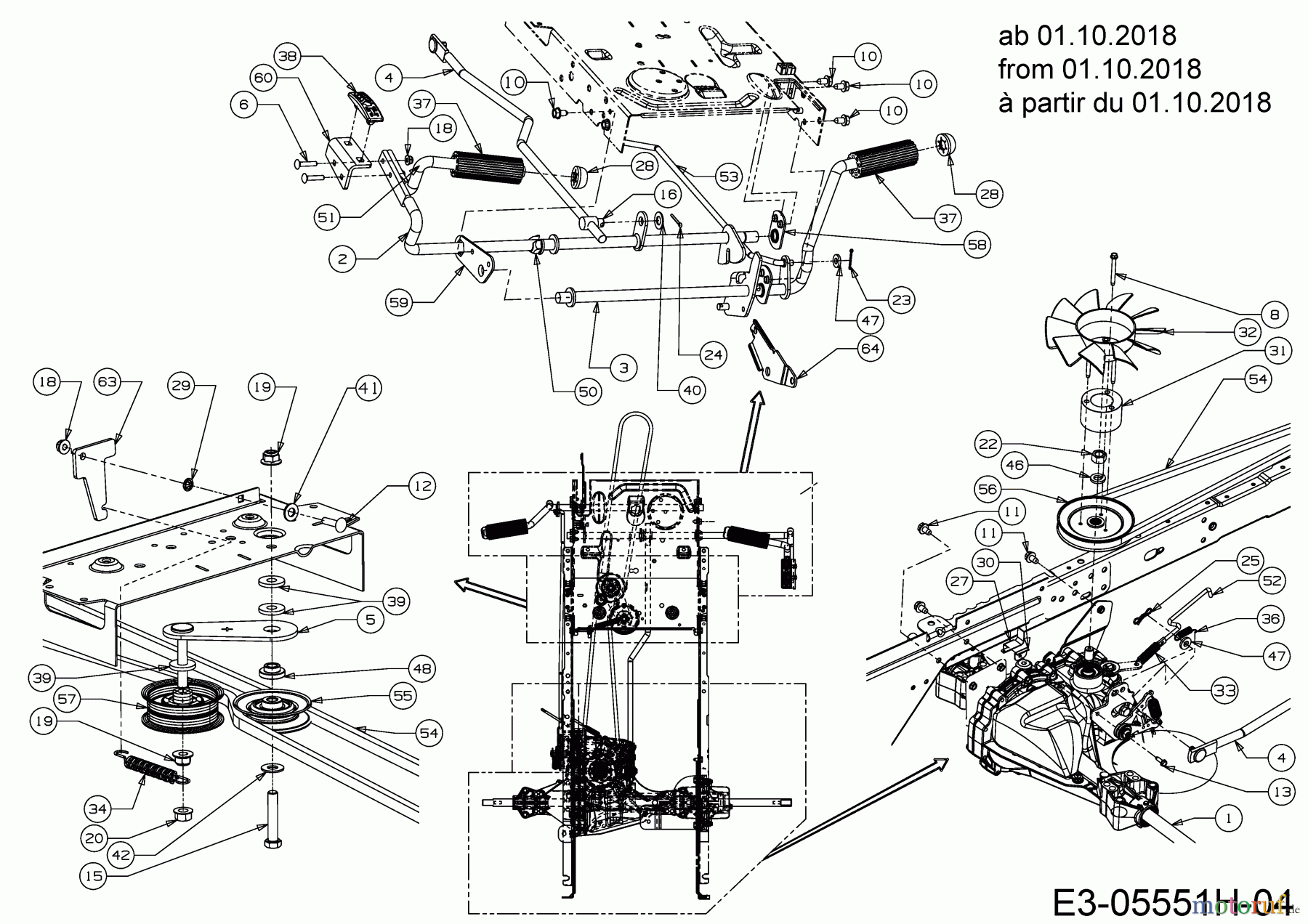

Helington Lawn tractors H 105 HK 13AG71KN686 (2018) Hydrostatic gearbox, Belt, Pedals from 01.10.2018

Posizione	Articolo numero	Descrizione
1	618-04911	TRANS:HYDRO:HG T2:700
2	647-04198B-Z	PEDAL CONTROL
3	647-04215A	ROD ASM
4	647-05061-Z	ROD:CONT:ASM:HYD:TO BE ZINCED
5	683-0604A	BRKT ASM:IDLR:DBL
6	710-0111	SCR:CRG:1/4-20:1.25
7	710-0189	HHCS:5/16-18:3.00:GR5:STD
8	710-05067	SCR:C:#12-24:2.000:HXINDWSH
9	710-0599	SCR:TT:1/4-20:0.500:HXINDWSH
10	710-0604A	SCREW:TT:5/16-18:0.625HXINDWSH
11	710-0607	SCREW:TT:5/16-18:.500:HXINDWSH
12	710-0932A	SCR:CRG:1/4-20:1.000:GR5
13	710-1003	SCR:B:#10-16:0.625:HXINDWSH:SP
14	710-1682	SCR:M8-1:25.00 LG:DIN 933
15	710-3144	HHCS:3/8-16:2.00:GR5:STD
16	711-04036	FERRULE:1/2-20 x .500 DIA
17	712-04063	FLANGED NUT 5/16-18:GRF:NYLON
18	712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
19	712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
20	712-0431	NUT:FLGLK:3/8-16:GRF:TOP LK
21	712-0714	NUT:FLGLK:M8-1.25 DIN 6926
22	712-3066	NUT:HEX:1/2-20 GR5
23	714-0111	COTTER PIN 3/32 DIA X 1.00
24	714-0115	PIN:COT:SPLIT:1/8 X 1.0
25	714-04040	PIN-COTTER
26	719-0534	SUPT:CSTG
27	725-05050	SW:SPR:SNGL MT
28	726-0214	CAP:PUSH 5/8
29	726-0233	NUT:PUSH:.25 ID X .50 OD
30	726-04089	PLT:INSL:SW
31	731-07514	SPCR:2 3/8 x 1 5/16:HYDRO:700
32	731-1449A	FAN:BLADE:10
33	732-0209	SPR:EXTN:.48 OD x 2.03
34	732-0429A	SPR:EXTN:.50 DIA X 3.97 LG
35	732-0716D	SPR:EXTN:.59 OD x 4.00 LG
36	732-3118	SPR:EXTN:.375 OD x 1.44 LG
37	735-0239	PAD:FOOT:4.0 LONG
38	735-04113	PAD:FOOT:REV
39	736-0258	WASHER:FLAT:.385 x 1.0 x.135
40	736-0272	WASHER:FL:.510 X 1.000 X .060
41	736-0275	WASH:FLAT:.344 x .688 x.065
42	736-0300	WASH:FLAT:.406 X .875 X.059
43	736-0685	WASH:FLAT:6.4 IDX18OD DIN 9021
44	736-0700	WASH:FLAT:8.4 x 16 x 1.60
46	736-0921	WASHER:LOCK:1/2:REGULAR DUTY
47	736-3008	WASH:FLAT:.344 X.750 X.120
48	738-0372B	SPCR:SHLDR:0.381X0.624X0.200
49	741-0998	BRG:BALL:19mm x 40mm OD x 12mm
50	741-3065B	BRG:HEX FLG:.628 ID:SPLIT
51	747-05265	ROD:CNTRL:REV:HYDRO
52	747-05298	ROD:CONT:BY-PASS:HYDRO:700
53	747-05313	ROD:BRAKE:700:HYDRO T2
54	754-04258	BELT:V TYP:1/2 x 84.10 LG POLY
55	756-0236	PUL:IDLER:V TYPE 3.06 OD
56	756-1052	PUL:TRANS:4.50 DIA
57	756-3054A	FLAT:IDLR:.384x2.75x.875
58	783-04536B	BRKT:PED:SUPPORT LT-5
59	783-05809B	BRKT:MT:CNTRL
60	783-05867	BRKT:MT:REV:PED:AUTOMATIC
61	783-06563	BRKT:MT:RH:HYDRO:HG T2
62	783-06577	BRKT:MT:RH:HYDRO:lHG T2 700
63	783-06582	PLT:SPR:ANCHOR:HYDRO 700
64	783-07369-Z	783-07369ZW
