SHIELD MOUNT SCREW ASSY

Articolo numero:
791-182200
Posizione:
24
DINNORM:
SCHILD / 791-182200
Modell Year:
790 M / 2004
11.76 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

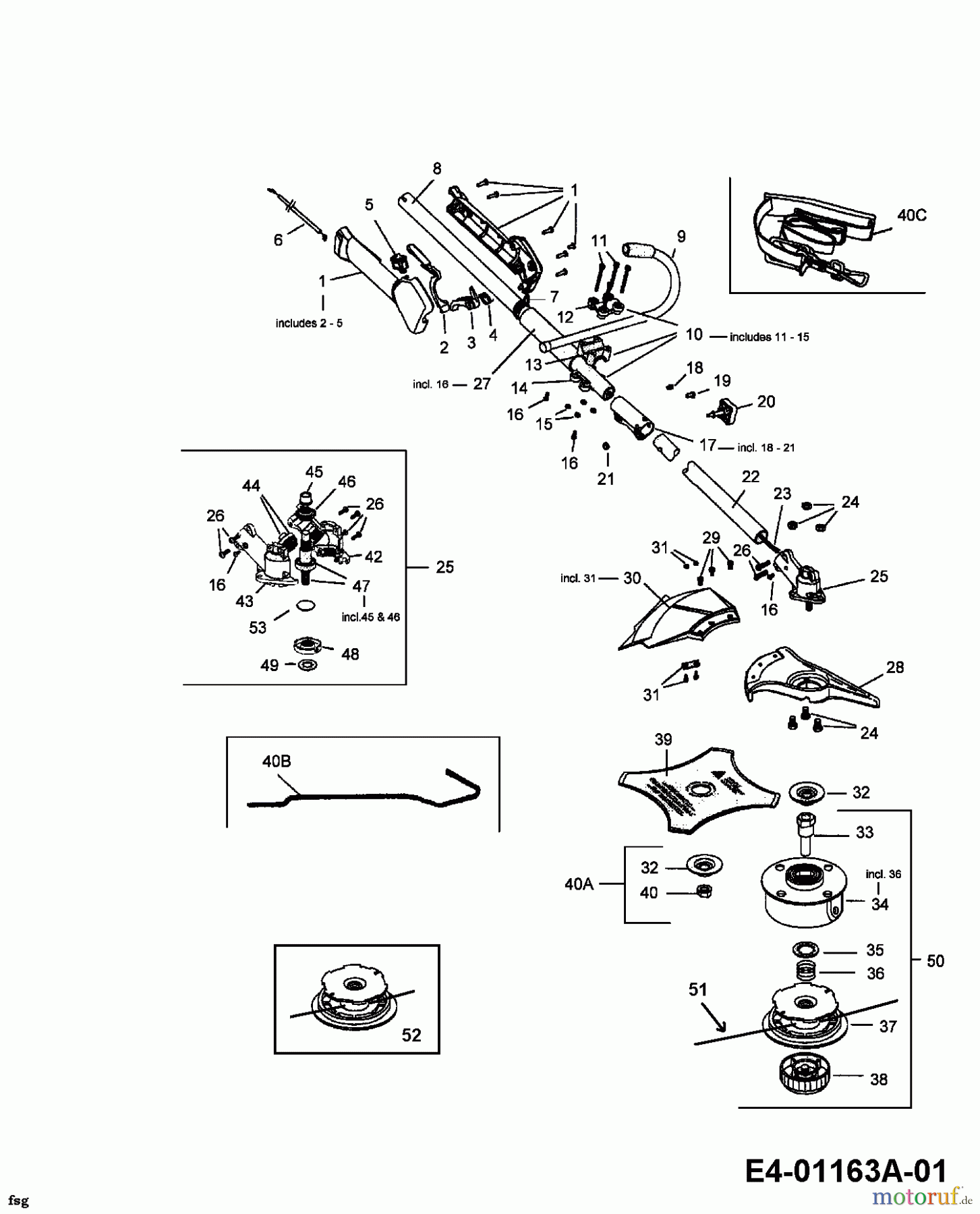

MTD Brush cutter 790 M 41DD79MC678 (2004) Basic machine
PosizioneArticolo numeroDescrizione
1 753-04739GRIP ASM THROT:BH:POS ON/OFF
2 791-00041THROTTLE TRIGGER LOCK-OUT
3 MTD LEVER, TROTTLE753-04119LEVER, TROTTLE
4 MTD THROTTLE TRIGGER SPRING791-182690THROTTLE TRIGGER SPRING
5 753-04241SW: POS ON/OFF :W/LEAD
6 791-182877TROTTLE CABLE ASSY
7 791-610327SHOULDER STRAP CLIP
8 753-04344HSG ASM:UPR W/FLEX SHF
9 791-181099J-HANDLE ASSEMBLY
10 791-683295HANDLE BRACKET ASSEMBLY
11 791-181811Screw
12 791-181812UPPER HANDLE CLAMP
13 791-181813MIDDLE HANDLE CLAMP
14 791-181814LOWER HANDLE CLAMP
15 791-181815Nut
16 MTD Screw791-145569Screw
17 753-04088EZ-LINK COUPLER
18 791-182057Screw
19 791-181617Screw
20 791-181981ADJUSTMENT KNOB SET
21 753-04386LOCKNUT
22 753-04857GEAR CASE
23 MTD LOWER FLEXIBLE DRIVE SHAFT791-181570LOWER FLEXIBLE DRIVE SHAFT
24 791-182200SHIELD MOUNT SCREW ASSY
25 791-182193GEARBOX ASSEMBLY
26 791-182195Screw
27 791-182310HANDLE LIMITER
28 791-147492HOUSING
29 791-683304GUARD MOUNTING SCREWS
30 MTD SHIELD AND BLADE ASSEMBLY791-180387SHIELD AND BLADE ASSEMBLY
31 MTD BLADE ASSEMBLY791-682061BLADE ASSEMBLY
32 MTD BLADE RETAINING WASHER791-147490BLADE RETAINING WASHER
33 791-612483ADAPTER BOLT
34 791-683301OUTER SPOOL AND EYELET ASSY.
35 791-612026washer
36 791-610636BCOMPRESSION SPRING
37 791-147495INNER REEL
38 MTD ASM, LARGE BUMP KNOB791-180814BASM, LARGE BUMP KNOB
39 MTD GUARD AND BLADE ASSEMBLY791-147245GUARD AND BLADE ASSEMBLY
40 791-181699Nut
40A 791-180014BBLADE RETAINING KIT
40B 791-613226LOCKING ROD TOOL
40C 791-682075BBELT
42 791-182191GEAR HOUSING HALF LEFT
43 791-182192RIGHT HOUSING
44 791-182194BEVEL GEAR
45 791-182199OUTPUT SHAFT BUSHING
46 791-182198OUTPUT SHAFT GEAR
47 791-182197OUPUT SHAFT ASSY
48 791-182196SLIDER
49 753-04348Lock washer
50 MTD ASM, CUTTING HEAD COMPLETE791-147498BASM, CUTTING HEAD COMPLETE
51 791-180120LINE,NYLON .95" LOOP
52 MTD CARTRIDGE, DUAL .095" LINE791-147345BCARTRIDGE, DUAL .095" LINE
53 753-1159O-RING
