MTD 140 31A-140-678 (1997) Auger housing Ricambi

AUGER ASSY. COMP.

Articolo numero:

784-5485

Posizione:

Modell Year:

140 / 1998 140 / 1999 140 / 2000 140 / 2001 140 / 2002 140 / 1997 140 / 2003 150 / 1998 150 / 1999 150 / 2000 150 / 2001 150 / 1997 150 / 1997 E 150 / 1997 E 152 / 1997

DINNORM:

984-5485-0637

220.29 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

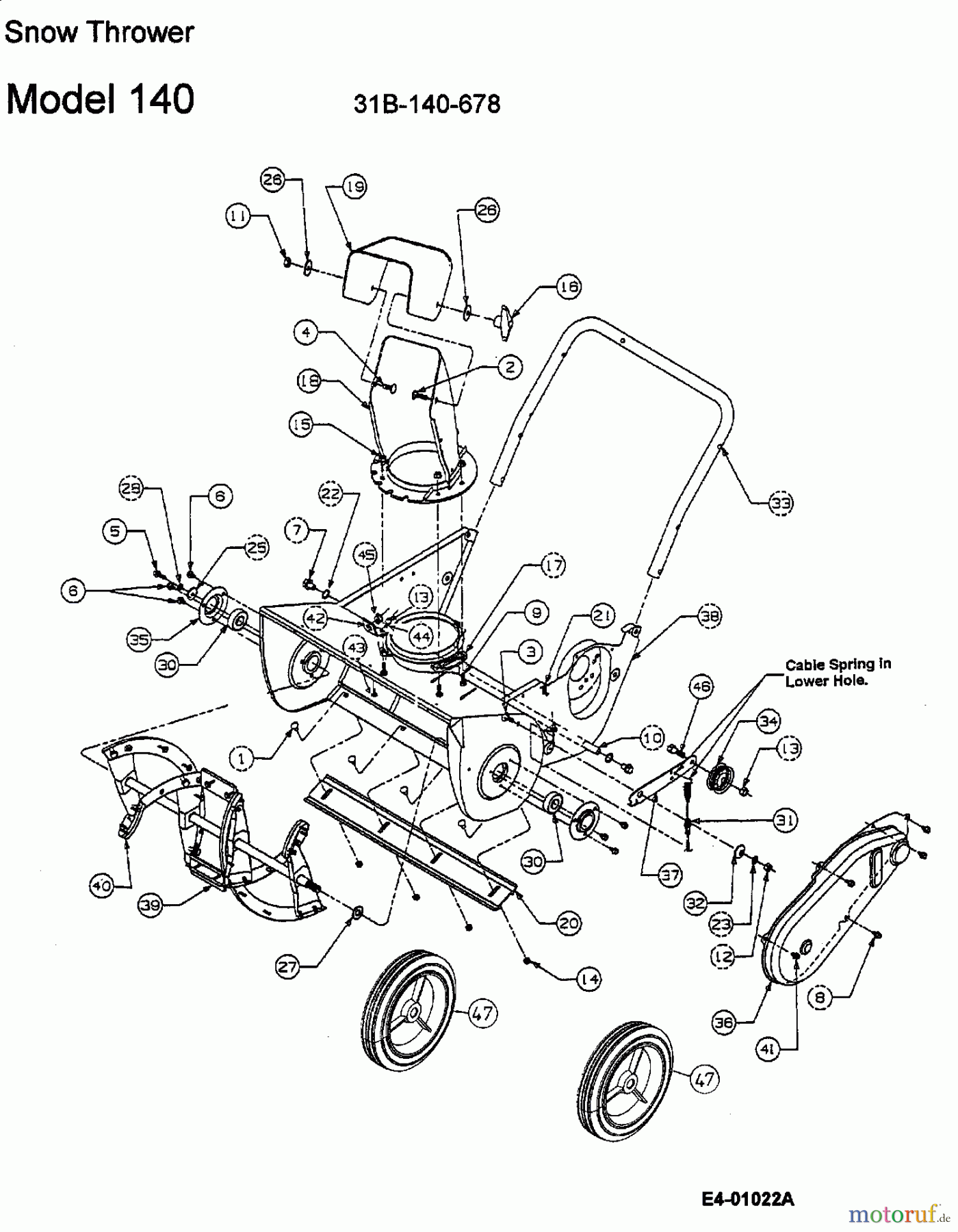

MTD Snow throwers 140 31A-140-678 (1997) Auger housing

Posizione	Articolo numero	Descrizione
1	710-0167	SCR:CRG:1/4-20:.50:
2	710-0276	SCREW:CRG:SPL:5/16-18:1.00
3	710-0323	SCREW
4	710-0451	BOLT:CRG:5/16-18:.750 GR1
5	710-0642	SCR:TT:1/4-20:.750:HXINDWSH
6	710-1005	SCR:B:1/4-14:0.500:HXINDWSH
7	710-0773	SCR:TT:3/8-16:.500:HXINDWSH
8	710-0896	SCR:AB:1/4-14:.625:HXINDWSH
9	710-3015	HHCS:1/4-20:.75:GR5:STD
10	711-0848A	AXLE-EDGER
11	712-0429	NUT:HEXLK:5/16-18:GR5:NYLON
12	712-3010	NUT:HEX:5/16-18:GR5
13	712-0116	NUT:JAMLK:3/8-24:GR2:NYLON
14	712-0298	NUT:JAM:1/4-20:GR2
15	712-3027	NUT:FLGLK:1/4-20:GRF
16	720-0284	WING NUT
17	731-0851A	FLANGE KEEPER 5.0 DIA
18	731-0915B	LOWER-CHUTE
19	731-0921	UPPER CHUTE
20	731-1033	PLATE-SHAVE
21	732-0357A	SPR:EXTN: .33 OD x 1.12
22	736-0108	WASH-FLAT:.510 x.750 x.033
23	736-0119	WASHER:LOCK:5/16:SPLT:REG
25	736-0176	WASHER:FLAT:.265 x .938 x .120
26	736-0159	WASH .349 ID X .879 OD X .063
27	736-0326	WASH:FLAT:.510 x 1.000 x.125
28	736-0329	WASHER:LOCK:1/4:REGULAR DUTY
30	741-0600	BRG:BALL:17x40x12:6203:DS
31	746-0910A	CABLE: CLUTCH
32	748-0234	SHOULDER SPACER:.315DLX1
33	749-0796B	HANDLE-LWR 21"
34	756-0313	PULLEY-IDLER-FLAT
35	784-5174	CAP-BRG ADJ
36	784-5176	GUARD-BELT
37	784-5175B	BRACKET-IDLER/BRAKE
38	684-0114B	Case
39	784-5485	AUGER ASSY. COMP.
40	753-0613	KIT-RUBBER SPIRAL
41	710-0352	SCR:B-1/4-14:.375:HWINDWSH
42	784-5720	ANGULAR FIXATION PART
43	710-0451	BOLT:CRG:5/16-18:.750 GR1
44	736-0242	WASH:BLVL:.340 x .872 x .060
45	741-0475	BRG:FLG:SNAP .385 ID
46	710-0191	HHCS:3/8-24:1.25:GR8:SPEC
47	734-1176	WHEEL ASSY W/TIRE
