NUT-HEX

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
712-0121
Posizione:
41
DINNORM:
912-0121
Modell Year:
611 D / 1998 611 D / 1999
7.13 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

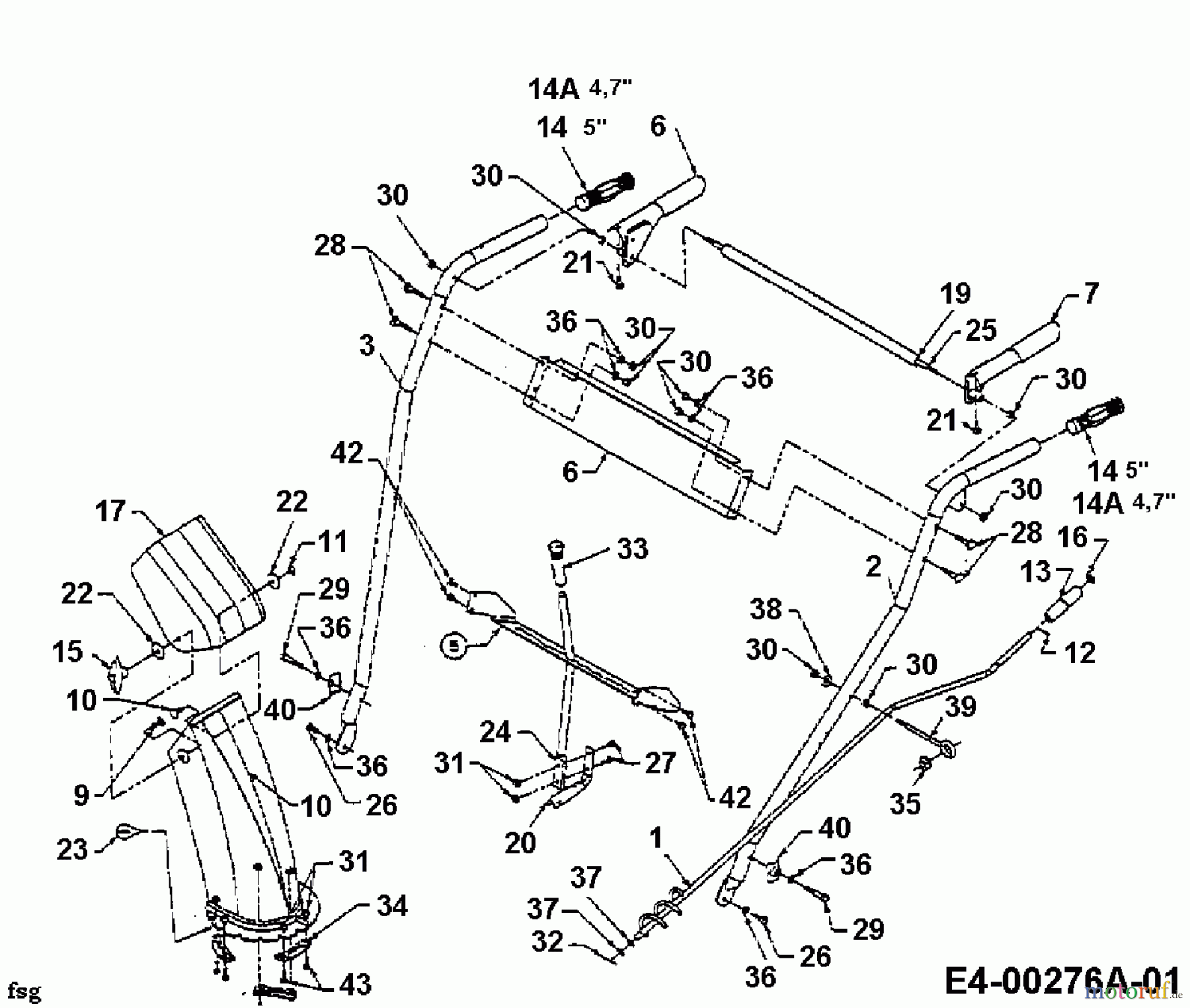

MTD Snow throwers 611 D 31A-611D678 (1999) Discharge chute, Handle
PosizioneArticolo numeroDescrizione
1 684-0022ADJUSTER-HGT CRANK 30"
2 684-0047HANDLE LH
3 684-0048USE 984-0048
4 746-0778THREADED ROD
5 705-5231PANEL-SELECT 5SP
6 705-5232COVER PLATE
7 705-5233LEVER-CLUTCH LH
8 705-5234LEVER-CLUTCH-RH
9 710-0276SCREW:CRG:SPL:5/16-18:1.00
10 MTD BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
11 MTD NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
12 715-0138USE 715-0247
13 720-0201AKNOB:CRK:1.00 DIA x 3.2 CHUTE
14 720-0274GRIP:1.0 ID x 5.0 LG
14A 720-0204GRIP:1.0 ID x 4.7 LG
15 720-0284WING NUT
16 726-0100CAP
17 731-0921UPPER CHUTE
18 731-1300ACHUTE-LOWER
19 731-1500TUBE-PIVOT ROD
20 732-0733LEVER-SPRING
21 735-0199ABUMPER-RUBBER:.62 OD x.22 THK
22 736-0159WASH .349 ID X .879 OD X .063
24 747-0904LVR:SHFT
25 747-0905ROD-PIVOT
26 MTD SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
27 MTD HHCS:1/4-20:.75:GR5:STD710-3015HHCS:1/4-20:.75:GR5:STD
28 710-0262BOLT:CRG:5/16-18:1.50:GR2
29 MTD HHCS:5/16-18:1.75:GR5:STD710-3180HHCS:5/16-18:1.75:GR5:STD
30 MTD NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
31 MTD NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
32 MTD PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
33 720-0223GRIP: .5 ID x 3.45
34 731-0851AFLANGE KEEPER 5.0 DIA
35 735-0234GROM:RUBBER:.44 IDx.94 ODx.50
36 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
37 MTD WASH-FLAT:.375x.738x.063736-0185WASH-FLAT:.375x.738x.063
38 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
39 747-0697BOLT:EYE:.70 DIA CHUTE CRANK
40 784-5599TAB-HANDLE
41 712-0121NUT-HEX
42 MTD SCR:AB:1/4-14:.625:HXINDWSH710-0896SCR:AB:1/4-14:.625:HXINDWSH
43 MTD HHCS:1/4-20:.75:GR5:STD710-3015HHCS:1/4-20:.75:GR5:STD
