MTD 611 D 31A-6ACD678 (2005) Auger housing Ricambi

SEAL-OIL

Articolo numero:
721-0327
Posizione:
57
DINNORM:
721-0327
Description:
.75x1 x.131
Modell Year:
611 D / 2005
11.24 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

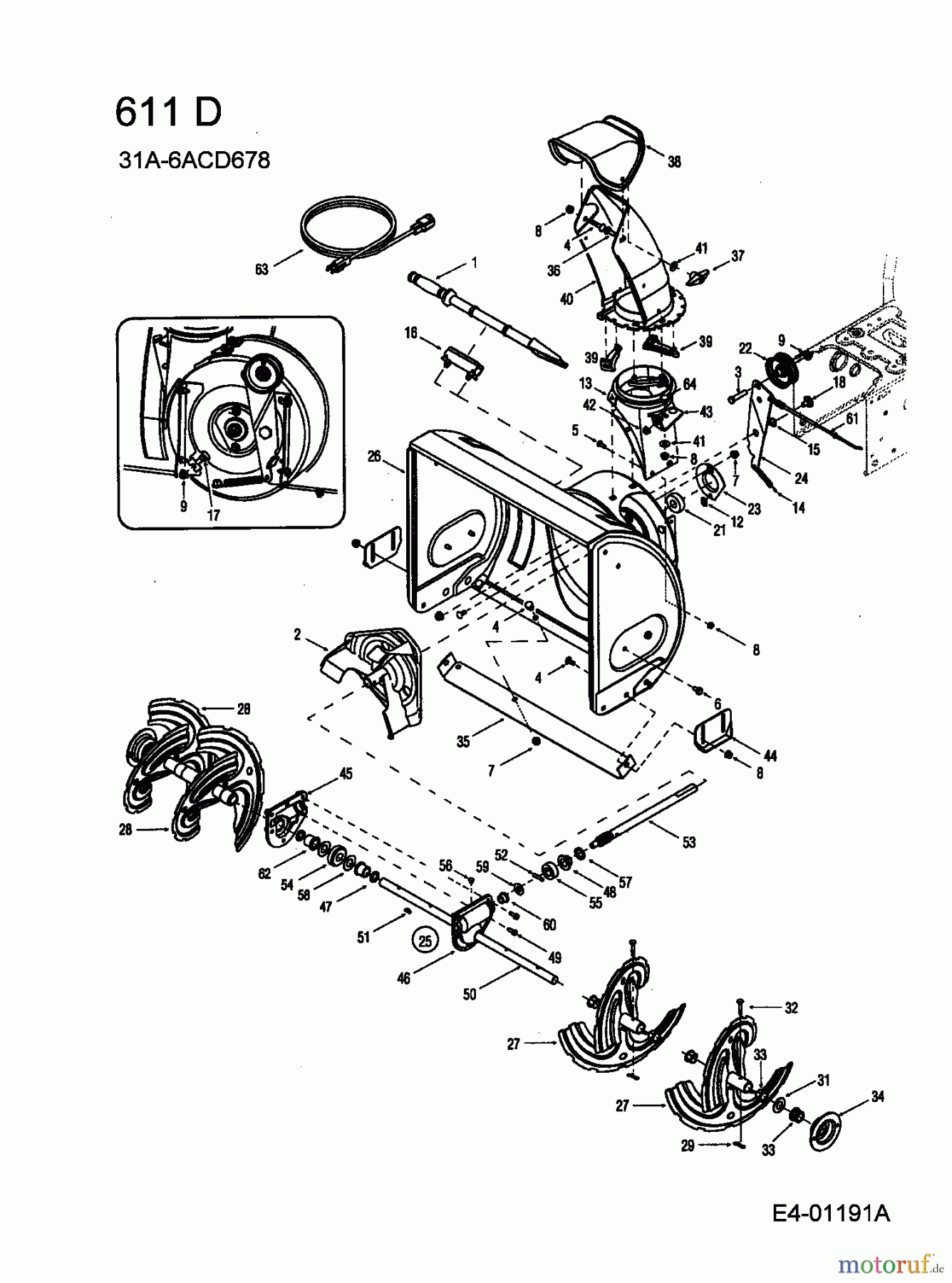

MTD Snow throwers 611 D 31A-6ACD678 (2005) Auger housing
PosizioneArticolo numeroDescrizione
1 MTD CHUTE CLEAN-OUT TOOL731-2643CHUTE CLEAN-OUT TOOL
2 684-04057
3 MTD HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
4 MTD BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
5 MTD SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
6 MTD SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
7 MTD FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
8 MTD FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
9 MTD NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
10 MTD INTERNAL COTTER PIN714-0149BINTERNAL COTTER PIN
11 725-0157CBL:TIE: 3/16 X .05 X 7.4
12 726-04012NUT:PUSH-ON:.25 DIA
13 731-04705CHUTE ADAPTER 5" DIA
14 MTD SPR:EXTN:.38 OD x 3.6 LG732-0611SPR:EXTN:.38 OD x 3.6 LG
15 MTD WASHER:WAVE:.625x.885x.015736-0174WASHER:WAVE:.625x.885x.015
16 731-2635MOUNTING BRACKET - CHUTE TOOL
17 738-0143SCR:SHLDR:.496x.336:3/8-16
18 738-0281SCR:SHLDR:.625 x.17:3/8-16
19 738-04124PIN SHEAR
20 MTD BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
21 MTD BALL BRG:.75 ID x 1.85 OD FLNG741-0309BALL BRG:.75 ID x 1.85 OD FLNG
22 756-0981tension pulley
23 790-00075BEARING HOUSING 1.85 ID
24 790-00080
25 618-04170GEARBOX AUGER 22"
26 684-04067HOUSING ASSEMBLY 22" CC?
27 684-04107SPRL ASM:LH
28 684-04108SPRL ASM:RH
29 MTD PIN-COTTER714-04040PIN-COTTER
31 MTD WASH:FLAT:.760x1.490X.060:HD736-0188WASH:FLAT:.760x1.490X.060:HD
32 738-04124PIN SHEAR
33 MTD BUSH:FLG:.800 ID x.910 OD741-0493ABUSH:FLG:.800 ID x.910 OD
34 790-00087HOUSING-BRG
35 790-00117PLT:SHAVE:2.25 x 21.66 LG
36 710-04071BOLT:CARR:5/16-18:1.000:CUSTOM
37 720-04032WING NUT
38 731-04426AUPPER CHUTE
39 731-04869KEEPER, FLANGE
40 731-04912LOWER CHUTE
41 736-0159WASH .349 ID X .879 OD X .063
42 MTD BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
43 784-5647BRACKET: CHUTE CRANK
44 784-5580SHOE:SLIDE:600 SNOW
45 719-0319
46 719-0320
47 MTD OIL SEAL 3/4 ID721-0179OIL SEAL 3/4 ID
48 741-0662BRG:HEX FLG:.628 ID:SPLIT
49 MTD SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
50 711-04286SHAFT AUGER 27.50"
51 714-0161KEY:HI-PRO:3/16 x 5/8
52 715-04021PIN-DOWEL
53 717-04126AXLE-FR
54 717-0528AGEAR-WORM
55 718-04071BUSH
56 721-0325GREASE PLUG
57 721-0327SEAL-OIL
58 736-0351WASH:SHIM:.760x1.500X.030:HD
59 MTD WASH:THRST:.510 X 1.120 X .060736-3084WASH:THRST:.510 X 1.120 X .060
60 741-0663BRG:HEX FLG:.628 ID:SPLIT
61 MTD CBL:CLU:X 44.75 AUGER746-0897CBL:CLU:X 44.75 AUGER
62 741-0661AFLANGE BEARING
63 629-0071CORD-EXTENSION
64 MTD SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
