SCR:TT:5/16-18:0.750:PANTRXI

Nota: Questo articolo è3 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
710-1611B
Posizione:
41
DINNORM:
FINISH:MTD SPEC-100015
Description:
5/16-18x1.25
Modell Year:
YARD VAC / 2007 YARD VAC / 2006 YARD VAC / 2008 YARD VAC / 2009 YARD VAC / 2010
6.41 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

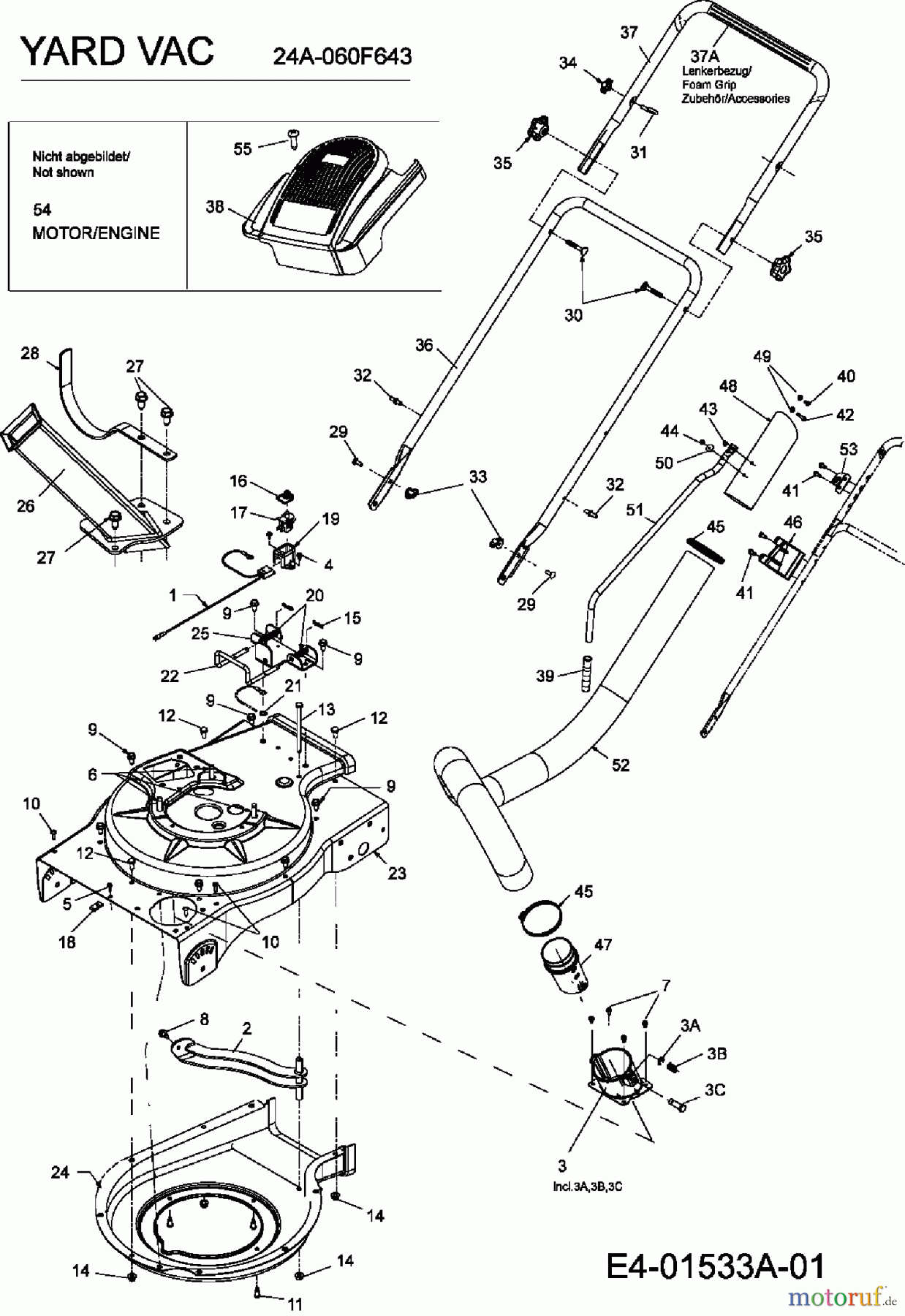

Yard-Man Leaf blower, Blower vac YARD VAC 24A-060F643 (2009) Housing, Handle, Vacuum hose, Engine
PosizioneArticolo numeroDescrizione
1 629-0920AWIRE HARNESS
2 681-0154SCREEN ASM
3 681-0195STRAIGHT FUEL FITTING 1/4"
3A Yard-Man E-RING:.500 DIA SHAFT716-0104E-RING:.500 DIA SHAFT
3B 732-3035spring
3C 711-1571Cyl. pin
4 710-0224SCR:AB:#10-16:0.500:HXINDWSH
5 710-0351SCR:B:#10-16:0.5":PANPHI
6 Yard-Man SCR:TTSEMS:3/8-16:1.250:HXLWSH710-0502ASCR:TTSEMS:3/8-16:1.250:HXLWSH
7 Yard-Man SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
8 Yard-Man SCREW:TT:5/16-18:.500:HXINDWSH710-0607SCREW:TT:5/16-18:.500:HXINDWSH
9 Yard-Man SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
10 Yard-Man SCR:HL:12-16:0.750:TRUSPHI710-1220SCR:HL:12-16:0.750:TRUSPHI
11 Yard-Man FLANGE SCREW .30X.46XTT:#12-24710-1650FLANGE SCREW .30X.46XTT:#12-24
12 Yard-Man HHCS:5/16-18:.625:GR5:STD710-3025HHCS:5/16-18:.625:GR5:STD
13 710-3195HHCS:5/16-18:4.50:GR5:STD
14 Yard-Man FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
15 Yard-Man PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
16 725-1700SWITCH COVER
17 Yard-Man SW:MT:SNAP NC725-3166SW:MT:SNAP NC
18 726-0139SPEED NUT 10Z U-TYPE
19 731-1613COVER-SWITCH
20 732-0962spring
21 736-0607WASH:LOCK:5/16 EXT TOOTH
22 747-1153BAIL
23 781-04071665UPPER HOUSING FLAIL
24 781-0721B665LOWER HOUSING
25 781-0778ABRACKET
26 681-0122CHIPPER CHUTE ASSY
27 Yard-Man SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
28 781-1058HOSE BRACKET HANGER
29 Yard-Man SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
30 710-1174BOLT:CRG:5/16-18:2.0 CRVD
31 710-1205BOLT:EYE:1/4-20: BENT ROPE GDE
32 711-1293PIN:KEEPER:BELT:1/4-20
33 Yard-Man WING NUT712-0397WING NUT
34 720-0279WING NUT
35 720-04072KNOB:STAR:5/16-18
36 749-04165
37 749-04172
37A 720-0295GRIP:FOAM:HNDL 22" W/SKIN
38 731-04212COVER-MOTOR
39 AF-7071handle
40 710-0751HHCS:1/4-20:.620:GR5:STD
41 710-1611BSCR:TT:5/16-18:0.750:PANTRXI
42 710-3288SCRE.HHCS:1/4-20:1.62:GR5:LOCK
43 Yard-Man NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
44 712-0442NUT:LOCK:CAP:1/4-20
45 723-0295CLAMP-HOSE
46 731-04911BRACKET
47 731-2292HOSE BARB-3/4 IN
48 731-2478HOSE NOZZLE
49 Yard-Man WASH:FLAT:.271 x.630 x.065736-3020WASH:FLAT:.271 x.630 x.065
50 748-0457WASHER
51 749-1270NOZZLE HANDLE
52 764-0648HOSE-SUCTION
53 781-1056BRACKET
54 752B1906B1ENGINE B&S QTM.
55 710-1256SCR:HL:#8-18:1.250:PANPHI
