Yard-Man VCS 030 D 24A-030D643 (2000) Impeller with blades, Nozzle Ricambi

SCREW HHCS:5/16-18:.75:GR5:STD

Yard-Man SCREW HHCS:5/16-18:.75:GR5:STD
Articolo numero:
710-3008
Posizione:
11
Modell Year:
VCS 030 D / 2000 VCS 030 D / 2001
DINNORM:
FINISH:MTD STD 701-01000
2.63 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

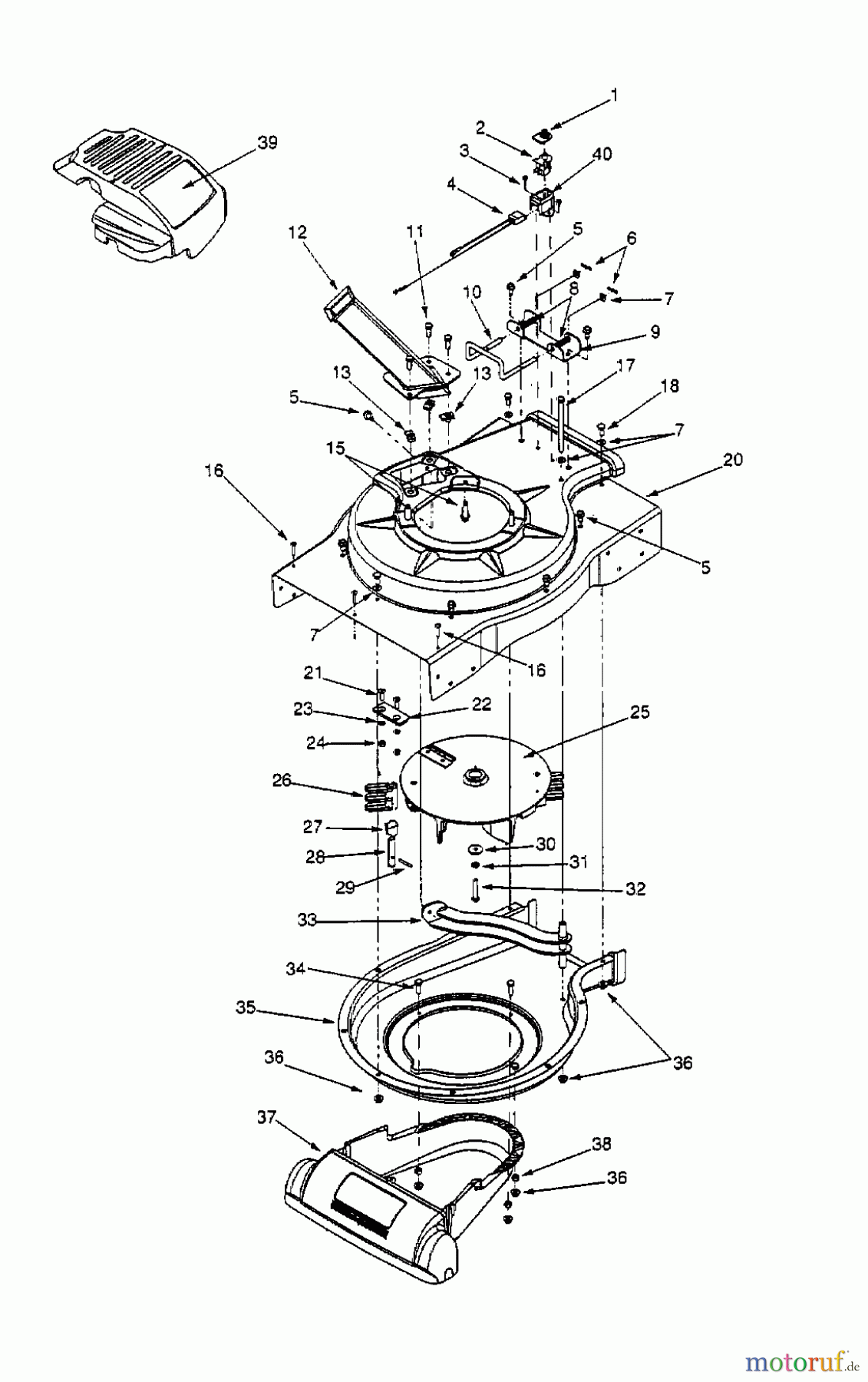

Yard-Man Leaf blower, Blower vac VCS 030 D 24A-030D643 (2000) Impeller with blades, Nozzle
PosizioneArticolo numeroDescrizione
1 725-1700SWITCH COVER
2 Yard-Man SW:MT:SNAP NC725-3166SW:MT:SNAP NC
3 710-0224SCR:AB:#10-16:0.500:HXINDWSH
4 629-0920WIRE HARNESS
5 710-0604SCREW TT:5/16-18:0.625HXINDWSH
6 Yard-Man PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
7 736-0264WASH:FLAT:.330 x.630x.0635
8 732-0962spring
9 781-0778BRACKET MOUNTING
10 747-1153BAIL
11 Yard-Man SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
12 681-0122CHIPPER CHUTE ASSY
13 726-0454NUT LOCK U-CLIP 5/16-18
15 Yard-Man SCR:TTSEMS:3/8-16:1.250:HXLWSH710-0502ASCR:TTSEMS:3/8-16:1.250:HXLWSH
16 Yard-Man SCR:HL:#12-16:1.000:TRUSPHI710-0969SCR:HL:#12-16:1.000:TRUSPHI
17 710-3195HHCS:5/16-18:4.50:GR5:STD
18 Yard-Man HHCS:5/16-18:.625:GR5:STD710-3025HHCS:5/16-18:.625:GR5:STD
20 781-0720GEHAEUSE OB.TEIL
21 710-1054SCR:MACH:5/16-24:1.000:CSK HEX
22 781-0490BLADE-CHIPPER
23 Yard-Man WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
24 Yard-Man NUT:HEXLK:5/16-24 GR8:NYLON712-0411NUT:HEXLK:5/16-24 GR8:NYLON
25 681-0152IMPELLER ASY
26 Yard-Man BLADE-FLAIL719-0329BLADE-FLAIL
27 781-0735CLIP:RET:PIN
28 711-1401Bolt
29 Yard-Man PIN:SPR:SPRL:.156 X 1.000 STD715-0166PIN:SPR:SPRL:.156 X 1.000 STD
30 736-0247WASH:FLAT:.406x1.250x.157:HD
31 Yard-Man WASHER:LOCK:3/8:HEAVY DUTY736-0217WASHER:LOCK:3/8:HEAVY DUTY
32 710-0818BOLT ASSY-HEX
33 681-0154SCREEN ASM
34 710-3038SCRE.HHCS:5/16-18:.875:GR5:STD
35 781-0721LOWER HOUSING
36 Yard-Man NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
37 731-1905COVER NOZZLE
38 712-0158NUT:HEXLK:5/16-18:GRA:CTRLK
39 751B281440SHROUD ENG-BLACK-TIE
40 731-1613COVER-SWITCH
