ROD:HNDL:DECK REL .375 DIA

Yard-Man ROD:HNDL:DECK REL .375 DIA
Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
747-1116
Posizione:
37
Modell Year:
Sprint SLX 117 S / 2000 Sprint SLX 117 S / 2001 LT 180 / 2000 AH 6180 / 2000 AH 6180 / 2001
Description:
0.375
DINNORM:
FINISH:PHOS & OIL
16.17 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

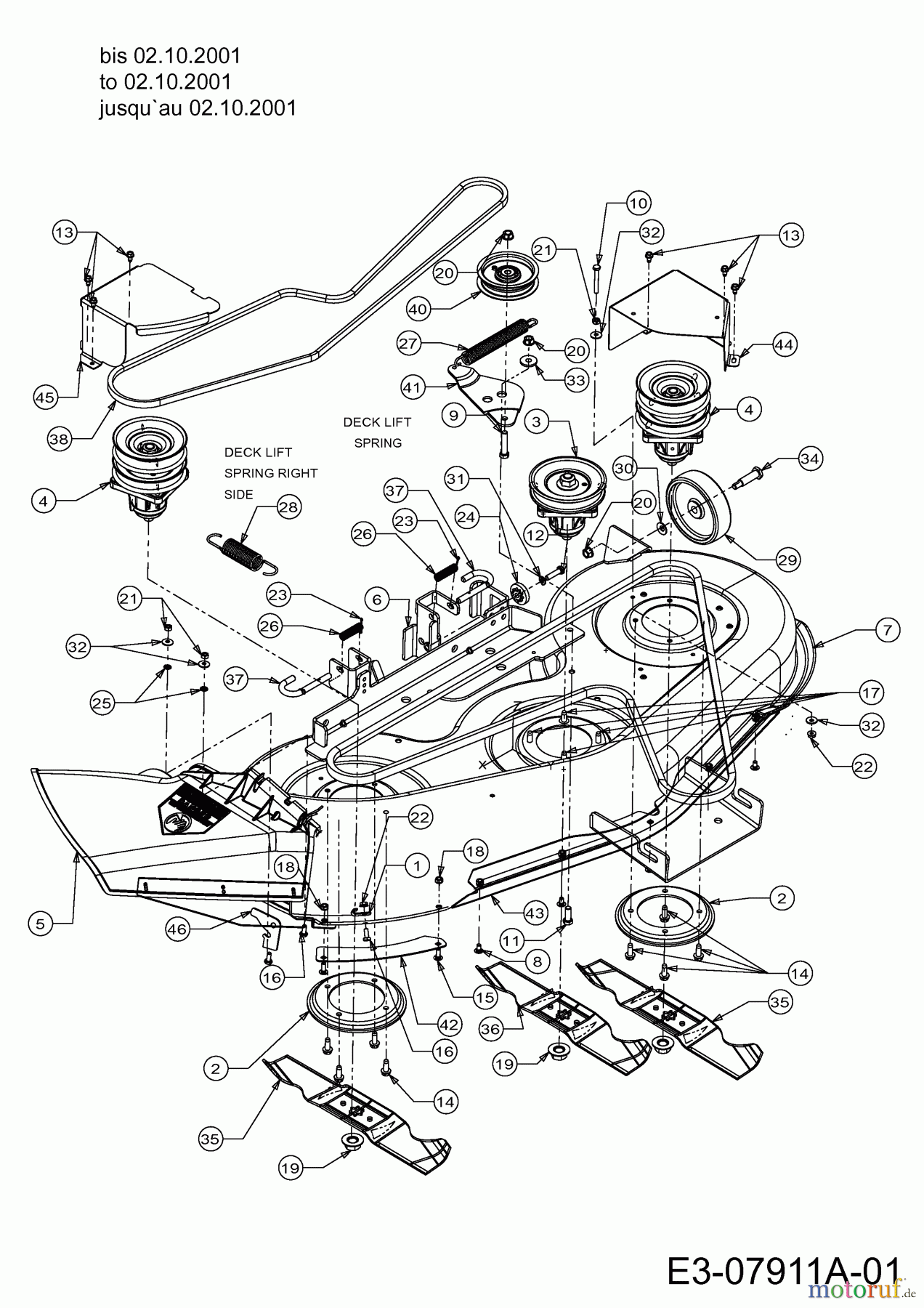

Yard-Man Lawn tractors AH 6180 13AT604H643 (2001) Mowing deck H (46
PosizioneArticolo numeroDescrizione
1 16606-ZBRKT:HOOK:RETAINER
2 17982PLATE-SPINDLE
3 618-0240CSPINDLE ASM-W/FTG 5.75"DIA PUL
4 618-0431SPINDLE ASM-DBL PUL W/FTG
5 631-0025DOOR-CHUTE
6 683-0254BRACKET-DECK ADJUSTMENT
7 683-0311
8 710-0167SCR:CRG:1/4-20:.50:
9 Yard-Man HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
10 710-0501HHCS:1/4-20:2.0:GR5:STD
11 Yard-Man HHCS:3/8-16:1.00:GR5:STD710-0514HHCS:3/8-16:1.00:GR5:STD
12 Yard-Man HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
13 Yard-Man SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
14 Yard-Man SCR:TT:5/16-18:0.875:HXINDWSH710-0650SCR:TT:5/16-18:0.875:HXINDWSH
15 Yard-Man SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
16 710-0751HHCS:1/4-20:.620:GR5:STD
17 Yard-Man SCR:TT:5/16-18:0.750:HXINDWSH710-1260ASCR:TT:5/16-18:0.750:HXINDWSH
18 Yard-Man NUT:SEMS:1/4-20712-0271NUT:SEMS:1/4-20
19 Yard-Man NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
20 Yard-Man NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
21 712-3006NUT:HEX:1/4-20:GR5
22 Yard-Man NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
23 Yard-Man COTTER PIN 3/32 DIA X 1.00714-0111COTTER PIN 3/32 DIA X 1.00
24 Yard-Man GEAR:DECK:ADJUSTMENT717-04074GEAR:DECK:ADJUSTMENT
25 726-0233NUT:PUSH:.25 ID X .50 OD
26 Yard-Man COMP.SPRING: .531 OD x 1.75 LG732-0306ACOMP.SPRING: .531 OD x 1.75 LG
27 732-0594ASPR:EXTN: .91 DIA x 7.33
28 Yard-Man SPR:EXTN:1.15 OD x 5.99 LG732-0934SPR:EXTN:1.15 OD x 5.99 LG
29 734-0973WHEEL:DECK 5.0 X 1.38
30 Yard-Man SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
31 Yard-Man WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
32 Yard-Man WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
33 Yard-Man SPCR:SHLDR:.625 ID x.169738-0347SPCR:SHLDR:.625 ID x.169
34 Yard-Man SCR:SHLDR:.496 x 1.525: 3/8-16738-0373SCR:SHLDR:.496 x 1.525: 3/8-16
35 Yard-Man THREE-IN-ONE BLADE742-0644THREE-IN-ONE BLADE
36 Yard-Man BLADE 14.88"LG.742-0645BLADE 14.88"LG.
37 Yard-Man ROD:HNDL:DECK REL .375 DIA747-1116ROD:HNDL:DECK REL .375 DIA
38 754-0349BELT:V TYPE:A x 79.10 LG POLY
40 756-0627BPUL:IDLR:3.50 DIA
41 783-0139ABRKT:IDLR:CENTER DBL
42 783-0142R.H. DECK SKIRT
43 783-0264ROD
44 783-0747COVER,BELT LEFT
45 783-0805ACOVER-RH BELT
46 783-1025STOP:CHUTE
