Yard-Man FH 125 13A-526-643 (2000) Cutting drive Ricambi

PULLEY

Articolo numero:
756-1058
Posizione:
35
Modell Year:
FH 125 / 1999 FH 125 / 1999 FH 125 / 2000 FH 125 / 2000
DINNORM:
L027-0002-0001 / MAESTRO F125
non più disponibile

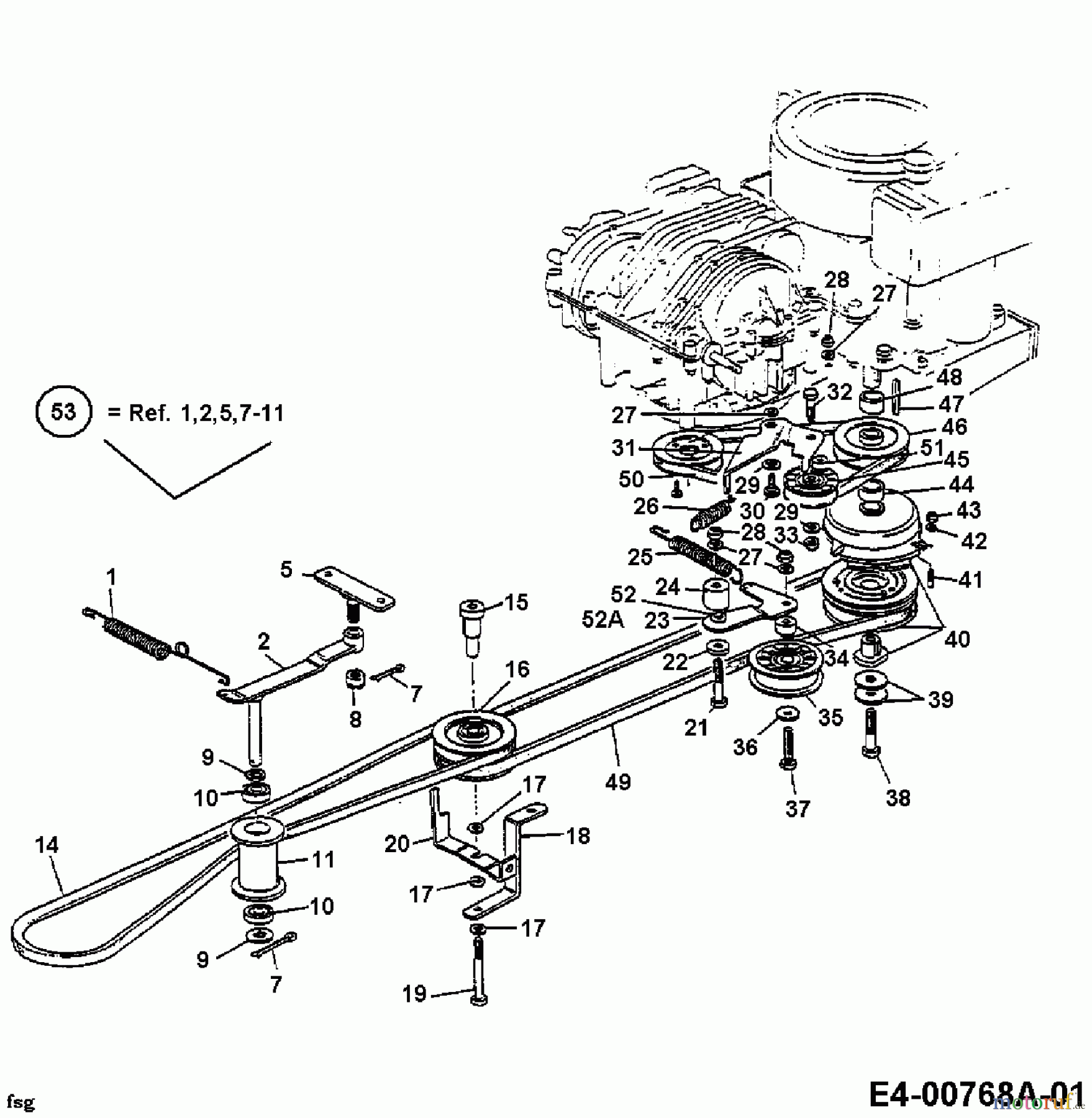

Yard-Man Lawn tractors FH 125 13A-526-643 (2000) Cutting drive
PosizioneArticolo numeroDescrizione
1 L02300010004SPRING,EXT.1"
2 L02100020001ARM
5 L02000010002BRACKET-CABLE
7 L01117810325PIN 3X25
8 24.2421.25KRONENMUTTER DIN 935
9 L00300010001SPECIAL WASHER
10 L03500000001SLEEVE-BEARING
11 L02700020004TENSION PULLEY
14 L02400010001V-BELT
15 L02600010002counter shaft
16 L02700020005belt pulley
17 736-0692WASH:FLAT:10,5 IDx20 OD DIN125
18 L00800140001STRAP:LIFT HANDLE SUPPORT
19 21.1444.05Screw
20 L02800000001TENSIONER
21 21.1443.78Screw
22 L01000010002WASHER-FL
23 L02500000005tensioner
24 L00900010007SPACER-PULLEY
25 L02300010012Spring
26 L02300010013Spring
27 736-0700WASH:FLAT:8.4 x 16 x 1.60
28 Yard-Man NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
29 736-0692WASH:FLAT:10,5 IDx20 OD DIN125
30 L00200010001BOLT SPECIAL
31 L02500000006TENSIONER
32 21.1441.92Screw
33 712-0637NUT:M10x1.5 DIN 985 NYLOCK
34 L00900010006SPACER
35 756-1058PULLEY
36 L00317270009washer
37 710-1703HHCS:M8-1.25:45.00 LG DIN 933
38 L00109310004BOLT
39 L00317270014washer
40 L01600060001ELECTRIC CLUTCH
41 L00100010005BOLT-SHLD
42 736-0700WASH:FLAT:8.4 x 16 x 1.60
43 Yard-Man NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
44 L00900010008BUSHING
45 L02700020002TENSION PULLEY
46 L02700010006PULLEY ASSY.DRIVE
47 L02900000003KEY
48 L00900010009SPACER
49 L02400010004V-BELT
50 L02400010005BELT-TILLER DRIVE W128
51 L02600010003COUNTER SHAFT
52 L00300020001SPECIAL WASHER 0.1MM
52A L00300020002SPECIAL WASHER 0.2MM
53 L04600010001TENSION PULLEY COMPL.
