Yard-Man E 5 E 3 F 31AE5E3F643 (2000) Auger housing, Auger, Auger gearbox Ricambi

SCREW TT:5/16-18:0.625HXINDWSH

Yard-Man SCREW TT:5/16-18:0.625HXINDWSH
Articolo numero:
710-0604
Posizione:
26
DINNORM:
FINISH:MTD SPEC-701-01006
Modell Year:
E 5 E 3 F / 1999 E 5 E 3 F / 2000 E 5 E 3 F / 2001
3.57 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

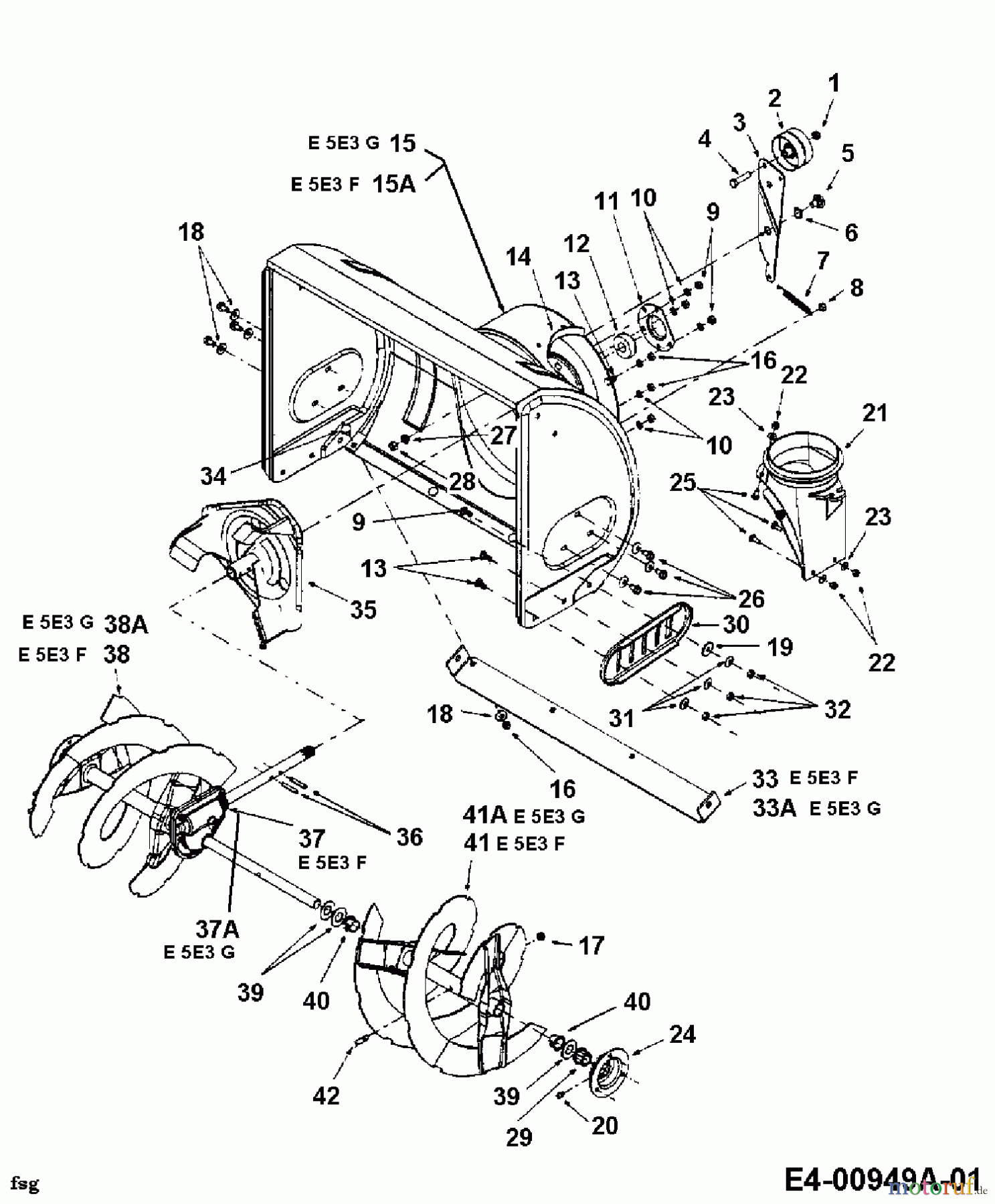

Yard-Man Snow throwers E 5 E 3 F 31AE5E3F643 (2000) Auger housing, Auger, Auger gearbox
PosizioneArticolo numeroDescrizione
1 Yard-Man NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
2 756-0178TENSION PULLEY
3 784-5632AAUGER IDLER ARM
4 Yard-Man HHCS:3/8-24:1.50:GR5:SPEC710-0459AHHCS:3/8-24:1.50:GR5:SPEC
5 738-0281SCR:SHLDR:.625 x.17:3/8-16
6 Yard-Man WASHER:WAVE:.625x.885x.015736-0174WASHER:WAVE:.625x.885x.015
7 Yard-Man SPR:EXTN:.38 OD x 3.6 LG732-0611SPR:EXTN:.38 OD x 3.6 LG
8 712-3068NUT:HEXLK:5/16-18:GR5:PATCH
9 710-0276SCREW:CRG:SPL:5/16-18:1.00
10 Yard-Man WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
11 Yard-Man HOUSING BEARING5931HOUSING BEARING
12 Yard-Man BALL BRG:.75 ID x 1.85 OD FLNG741-0309BALL BRG:.75 ID x 1.85 OD FLNG
13 Yard-Man BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
14 705-5226REINFORCEMENT-CHUTE 5.0
15 684-0055BHOUSING ASSY. 30"
15A 684-0040CUSE 753-0616
16 Yard-Man NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
17 Yard-Man NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
18 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
19 Yard-Man WASHER:FLAT:.344x1.125x.120736-0231WASHER:FLAT:.344x1.125x.120
20 Yard-Man FTG:3/16:LNC:#70:DRIVE LUBE737-3000FTG:3/16:LNC:#70:DRIVE LUBE
21 731-1379ACHUTE ADAPTER
22 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
23 736-0463WASH:FLAT: .250 x .630 x .052
24 784-0399HOUSING-BEARING
25 Yard-Man SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
26 710-0604SCREW TT:5/16-18:0.625HXINDWSH
27 Yard-Man WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
28 712-0798NUT:HEX:3/8-16:GR2
29 Yard-Man BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
30 784-5038BSKID, SHOE
31 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
32 Yard-Man NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
33 784-5579A26" SHAVE PLATE
33A 784-5575SHAVE PLATE 30"
34 710-0260BOLT-CARRIAGE
35 684-0065IMPELLOR
36 715-0114SPRING PIN
37 618-0415GEAR ASSY-26" AUGER
37A 618-0417DRIVE ASM-WORM COMP 24"
38 605-5192ASPIRAL 26" RH
38A 605-5248ASPRL ASM:RH:30" SERR
39 Yard-Man WASH:FLAT:.760x1.490X.060:HD736-0188WASH:FLAT:.760x1.490X.060:HD
40 Yard-Man BUSH:FLG:.800 ID x.910 OD741-0493ABUSH:FLG:.800 ID x.910 OD
41 605-5193ASPIRAL 26" LH
41A 605-5249ASPRL ASM:LH:30" SERR
42 Yard-Man BOLT:SHEAR:5/16-18:1.5:GR2710-0890ABOLT:SHEAR:5/16-18:1.5:GR2
