Yard-Man H 553 G 31AH553G401 (1999) Auger housing, Auger, Auger gearbox Ricambi

SPRING PIN

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
715-0114
Posizione:
15
DINNORM:
715-0114/915-0114
Modell Year:
H 553 G / 1999 H 553 G / 2002
8.70 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

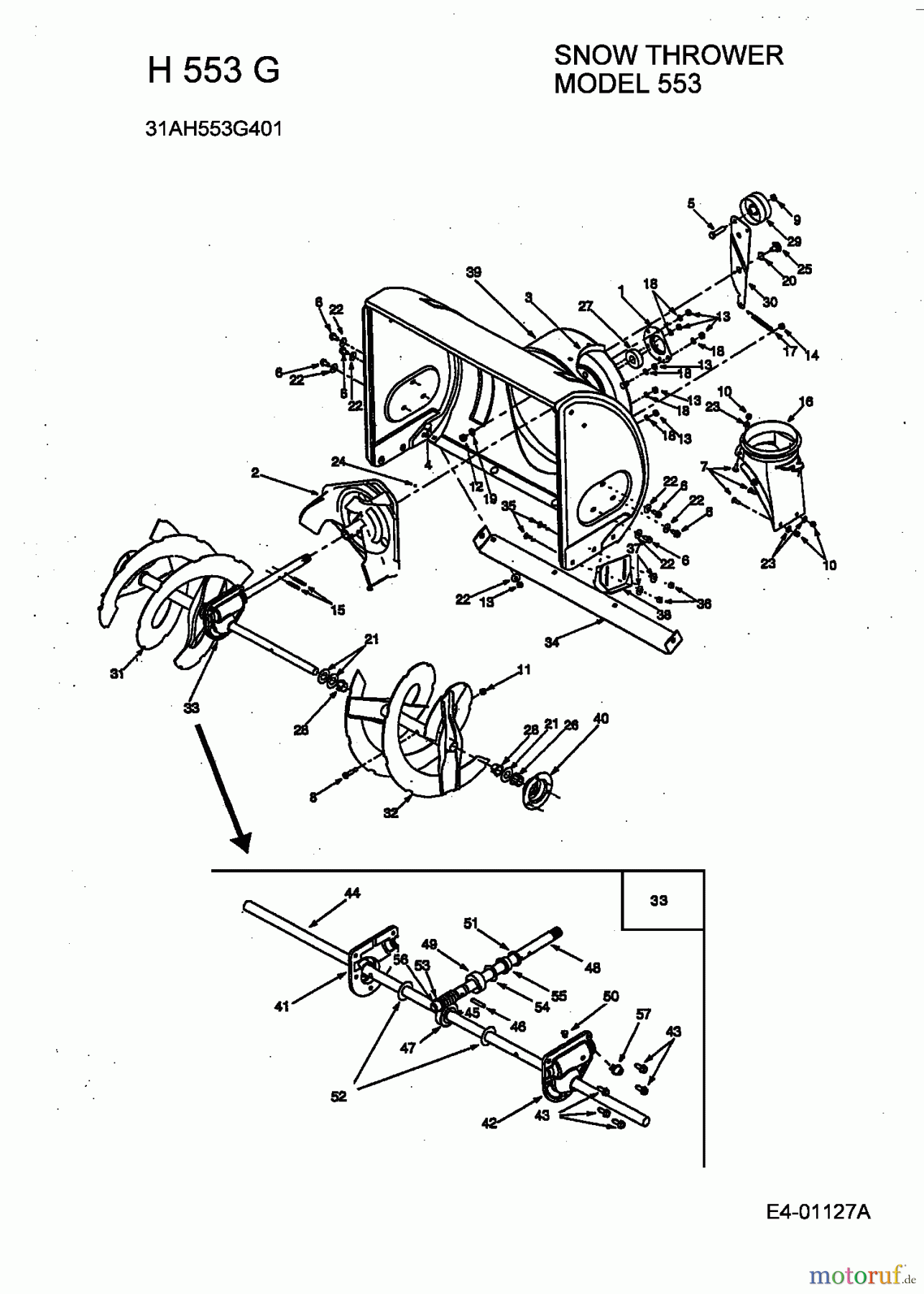

Yard-Man Snow throwers H 553 G 31AH553G401 (1999) Auger housing, Auger, Auger gearbox
PosizioneArticolo numeroDescrizione
1 Yard-Man HOUSING BEARING5931HOUSING BEARING
2 684-0065IMPELLOR
3 705-5226REINFORCEMENT-CHUTE 5.0
4 Yard-Man BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
5 Yard-Man HHCS:3/8-24:1.50:GR5:SPEC710-0459AHHCS:3/8-24:1.50:GR5:SPEC
6 710-0604SCREW TT:5/16-18:0.625HXINDWSH
7 Yard-Man SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
8 Yard-Man BOLT:SHEAR:5/16-18:1.5:GR2710-0890ABOLT:SHEAR:5/16-18:1.5:GR2
9 Yard-Man NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
10 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
11 Yard-Man NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
12 712-0798NUT:HEX:3/8-16:GR2
13 Yard-Man NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
14 712-3068NUT:HEXLK:5/16-18:GR5:PATCH
15 715-0114SPRING PIN
16 731-1379ACHUTE ADAPTER
17 Yard-Man SPR:EXTN:.38 OD x 3.6 LG732-0611SPR:EXTN:.38 OD x 3.6 LG
18 Yard-Man WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
19 Yard-Man WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
20 Yard-Man WASHER:WAVE:.625x.885x.015736-0174WASHER:WAVE:.625x.885x.015
21 Yard-Man WASH:FLAT:.760x1.490X.060:HD736-0188WASH:FLAT:.760x1.490X.060:HD
22 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
23 736-0463WASH:FLAT: .250 x .630 x .052
25 738-0281SCR:SHLDR:.625 x.17:3/8-16
26 Yard-Man BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
27 Yard-Man BALL BRG:.75 ID x 1.85 OD FLNG741-0309BALL BRG:.75 ID x 1.85 OD FLNG
28 Yard-Man BUSH:FLG:.800 ID x.910 OD741-0493ABUSH:FLG:.800 ID x.910 OD
29 756-0178TENSION PULLEY
30 784-5632AAUGER IDLER ARM
31 605-5196ASPIRAL 28" RH
32 605-5197ASPIRAL 28" LH
33 618-0122GRBX ASM -28"
34 784-5582APLATE-SHAVE-28IN
35 Yard-Man BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
36 Yard-Man NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
37 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
38 784-5580SHOE:SLIDE:600 SNOW
39 684-0041CUSE 753-0623
40 784-5618HOUSING-BRG
41 618-0123RH REDUCER HOUSING
42 618-0124LEFT HOUSING
43 Yard-Man SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
44 711-0910AXLE-FR
45 714-0161KEY:HI-PRO:3/16 x 5/8
46 715-0143PIN-SPRING-SPIR
47 717-0528Governor gear
48 717-0526Worm shaft
49 718-0186COLLAR-CREEPER SHIFT
50 721-0325GREASE PLUG
51 721-0327SEAL-OIL
52 736-0351WASH:SHIM:.760x1.500X.030:HD
53 Yard-Man WASH:THRST:.508x1.000x.020736-0369WASH:THRST:.508x1.000x.020
54 Yard-Man WASH:FL:.760 x 1.50 x.06:HT736-0445WASH:FL:.760 x 1.50 x.06:HT
55 741-0662BRG:HEX FLG:.628 ID:SPLIT
56 741-0663BRG:HEX FLG:.628 ID:SPLIT
57 Yard-Man FTG:3/16:LNC:#70:DRIVE LUBE737-3000FTG:3/16:LNC:#70:DRIVE LUBE
