Yard-Man YM 5655 DE 31AT6TCD643 (2006) Drive system, Milling drive, Wheels Ricambi

BRG:BALL:17x40x12:6203:DS

Articolo numero:
741-0563
Posizione:
26
DINNORM:
941-0563
Description:
17 x 40 12
Modell Year:
611 D / 2006 YM 5655 DE / 2006
47.26 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

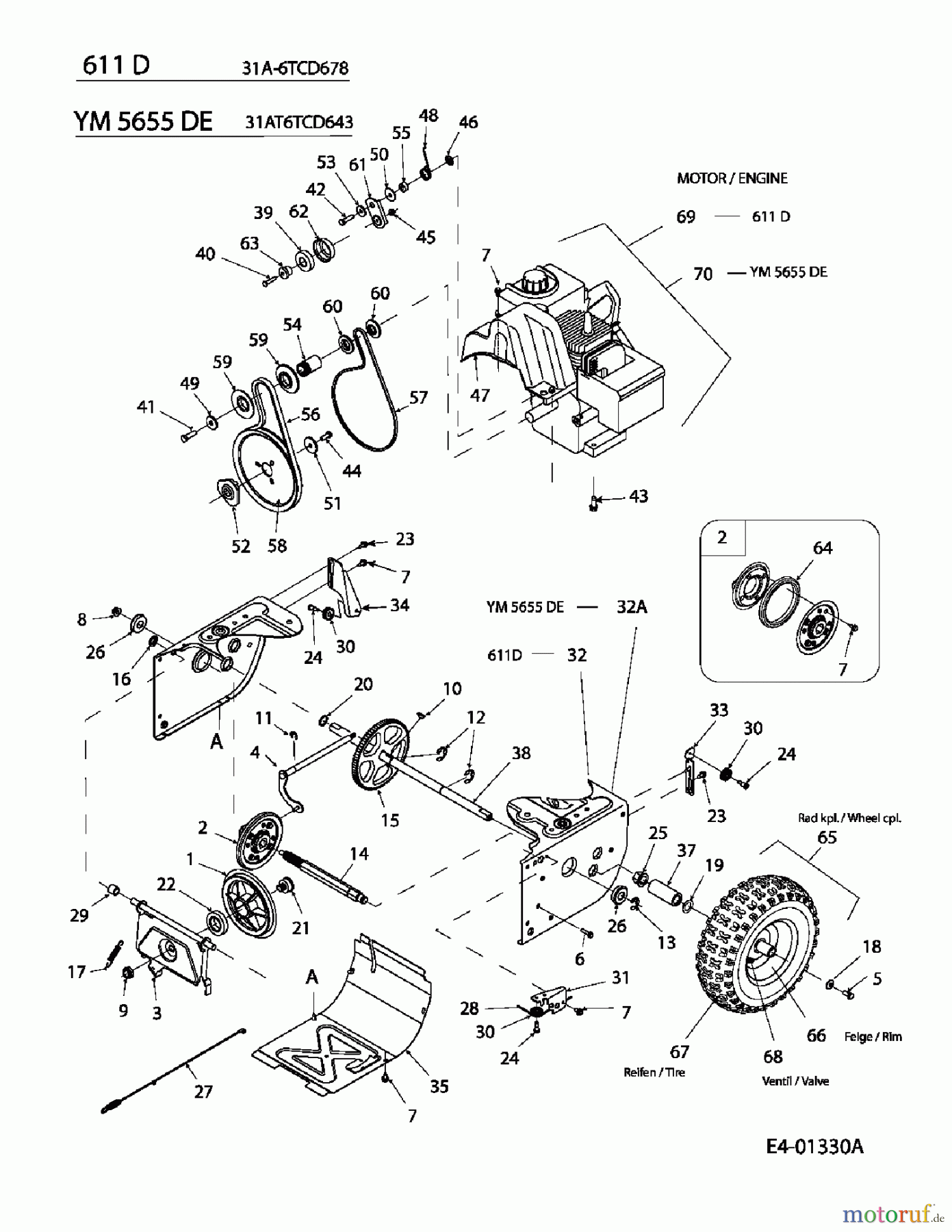

Yard-Man Snow throwers YM 5655 DE 31AT6TCD643 (2006) Drive system, Milling drive, Wheels
PosizioneArticolo numeroDescrizione
1 656-04025DISC-ASSY FRICTION
2 Yard-Man WHL ASM:FRCTN WHEEL684-04153WHL ASM:FRCTN WHEEL
3 684-04154BRKT ASM: SUPT:FRCTN WHL BLACK
4 684-04156SHIFT ASSY, ROD
5 Yard-Man SCREW HHCS:5/16-24:.750GR5LOCK710-0627SCREW HHCS:5/16-24:.750GR5LOCK
6 710-0788SCREW:TT:1/4-20:1.000:HXINDWSH
7 Yard-Man SCR:TT:1/4-20 x.625:HXINDWH710-1652SCR:TT:1/4-20 x.625:HXINDWH
8 Yard-Man NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
9 712-0413NUT:JAMLK:5/8-18:GR5:NYLON
10 714-0126KEY-HI-PRO:3/16 x 3/4 DIA
11 Yard-Man E-RING:.500 DIA SHAFT716-0104E-RING:.500 DIA SHAFT
12 716-0136RING:RET:TYPE-E .875 DIA
13 Yard-Man RING:E-TYPE:.750716-0231RING:E-TYPE:.750
14 717-04209AXLE
15 717-04230GEAR:80 TOOTH
16 726-0221NUT:SPD:.500
17 Yard-Man SPR:EXTN:.380 OD x 2.500 LG732-0264SPR:EXTN:.380 OD x 2.500 LG
18 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
19 Yard-Man WASH:FLAT:.793 x 1.24 x .06:HT736-0287WASH:FLAT:.793 x 1.24 x .06:HT
20 736-04161WASH:FLAT:.75 x 1.00 x .06
21 738-04164PIN FRICTION DISK
22 741-04098BALL BEARING
23 Yard-Man SCR:SHLDR:.368x.113:TT:1/4-20738-04184ASCR:SHLDR:.368x.113:TT:1/4-20
24 738-0924HEX SCREW
25 Yard-Man BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
26 741-0563BRG:BALL:17x40x12:6203:DS
27 746-04229CBL:CLU:DR:WHL:44.955 LG
28 Yard-Man CBL:CLU:DR:AUGER:47.48 LG746-04230CBL:CLU:DR:AUGER:47.48 LG
29 748-0190SPCR:.508 ID x.750 OD x.68
30 756-0625cable idler wheel
31 790-00096637GUIDE BRACKET, FRONT
32 790-00180638FRAME:600:WHEEL DR MTD RED
32A 790-00180665FRAME:600:WHEEL DR YM GREEN
33 790-00206BRACKET:GUIDE CABLE BLACK
34 790-00207BRACKET:CLUTCH POWDER BLACK
35 790-00226COVER:FRAME 500 S/T BL
37 731-04877SPCR:1.25 OD x.75 ID x 2.0 LG
38 738-04168AXLE:.75 x 22.000 LG
39 Yard-Man BRG:BALL:.787IDx1.85ODx.551741-0919BRG:BALL:.787IDx1.85ODx.551
40 710-0106HHCS:1/4-20:1.25:GR5:SPEC
41 Yard-Man HHCS:3/8-24:1.25:GR8:SPEC710-0191HHCS:3/8-24:1.25:GR8:SPEC
42 710-04520HEX. SCREW HHCS:5/16-24:1.25"
43 Yard-Man SCR:TTSEMS:3/8-16:1.000:HXLWSH710-0654ASCR:TTSEMS:3/8-16:1.000:HXLWSH
44 710-1245BHHCS:5/16-24:.875:GR8:LOCK
45 Yard-Man NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
46 726-04012NUT:PUSH-ON:.25 DIA
47 731-04792ACOVER BELT
48 732-04308ATORSION SPRING
49 736-0247WASH:FLAT:.406x1.250x.157:HD
50 Yard-Man WASH-FLAT:.330 x 1.25 x.06:HD736-0362WASH-FLAT:.330 x 1.25 x.06:HD
51 736-0505WASH:FLAT:.34 x 1.50 x .150:HT
52 748-04053PULLEY, ADAPTER
53 748-04097SPACER-PULLEY
54 750-04303SPCR:.875 ID x 1.185 OD
55 750-04477SPACER: .340 X .750 X .360LG
56 Yard-Man BELT:.500 x 35.06 LG754-04050BELT:.500 x 35.06 LG
57 Yard-Man BELT:V754-04088BELT:V
58 756-04109PUL:AUGR:8.1 x.5 BELT
59 756-04113PUL:HALF:4L-V x 2.600 OD
60 756-04179PULLEY HALF:1/4-V X 1.5 OD
61 790-00208BRACKET:IDLER DR
62 790-00230SLEEVE:BEARING IDLER
63 750-04571SPCR:SHLDR:.260 x .785 x .538
64 735-04054WHEEL:FRICTION:5.5 OD
65 634-04144AWHL:COMPL:13x4 SNOW HOG:GRAY
66 634-04151RIM ASM 6X3.25 W/V CC?
67 734-1732TIRE:SNWHG:13.0 x 4.0 x 6.0
68 Yard-Man VALVE - TUBELESS AIR734-0255VALVE - TUBELESS AIR
69 752T072555ENGINE TECNA
70 752T072556ENGINE
