Yard-Man YM 7110 DET 31AY7R3G643 (2006) Track drive Ricambi

BEARING, HEX FLANGE

Yard-Man BEARING, HEX FLANGE
Nota: Questo articolo è4 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
741-0339
Posizione:
32
DINNORM:
.754ID X 1.00ODX.925/941-0339
Modell Year:
YM 7110 DET / 2006
16.07 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

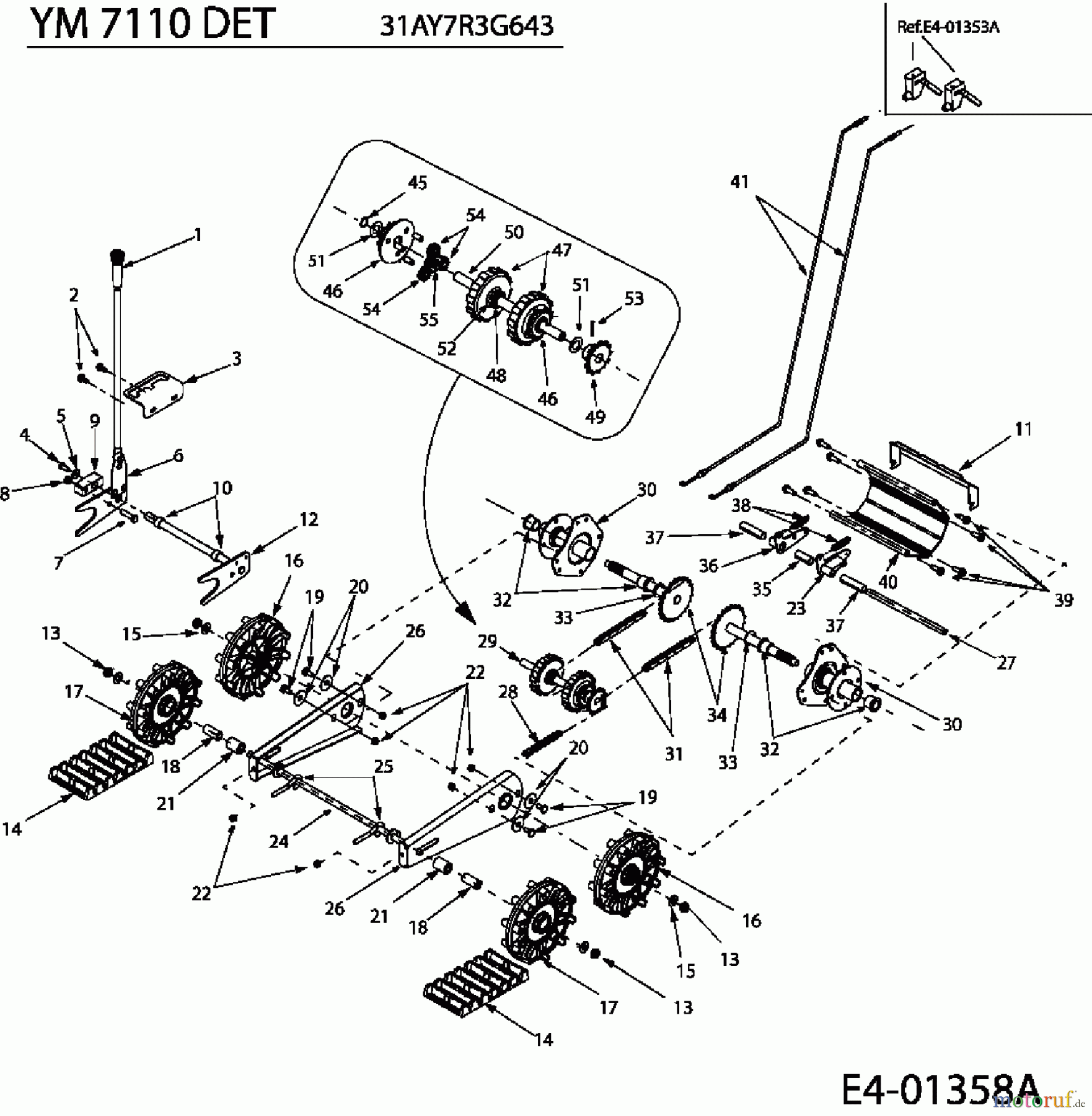

Yard-Man Snow throwers YM 7110 DET 31AY7R3G643 (2006) Track drive
PosizioneArticolo numeroDescrizione
1 720-0223GRIP: .5 ID x 3.45
2 710-0604SCREW TT:5/16-18:0.625HXINDWSH
3 784-5642PLATE-TRACK LOCKOUT
4 Yard-Man HHCS:5/16-24:.75:GR5:STD710-0157HHCS:5/16-24:.75:GR5:STD
5 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
6 684-0038HANDLE ASSY-LOCK
7 Yard-Man HHCS:3/8-24:1.50:GR5:SPEC710-0459AHHCS:3/8-24:1.50:GR5:SPEC
8 Yard-Man NUT:HEXLK:3/8-24:GRB:CTRLK712-0214NUT:HEXLK:3/8-24:GRB:CTRLK
9 748-0353ASHAFT-LIFT DRIVE
10 750-0547SPACER
11 784-5609BRACKET-STEERING
12 684-0009ROD ASSY-TRACK PIVOT
13 712-0346NUT:JAMLK:1/2-20:GRAD A:NYLON
14 731-1292TRACK-SNOW
15 Yard-Man WASHER:FL:.510 X 1.000 X .060736-0272WASHER:FL:.510 X 1.000 X .060
16 Yard-Man Wheel731-1538AWheel
17 Yard-Man DRIVE WHEEL631-0032DRIVE WHEEL
18 750-0995DISTANCE BUSH
19 Yard-Man SCR:SHLD:.435 X.178-5/16X.56738-0140SCR:SHLD:.435 X.178-5/16X.56
20 736-0406WASH:F:.442 IDX 1.38 ODX.060HT
21 750-0909SPACER
22 Yard-Man FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
23 618-0044PLT:LATCH
24 684-0024AXLE ASSY-IDLER
25 Yard-Man BOLT EYE710-1231BOLT EYE
26 784-5639PLATE
27 711-0911SHAFT-ACTUATOR
28 713-0233#41 CHAIN
29 618-0169ASHAFT ASSEMBLY
30 683-0024HUB ASSY-TRACK
31 713-0437#420 CHAIN 1/2 PITCH
32 Yard-Man BEARING, HEX FLANGE741-0339BEARING, HEX FLANGE
33 Yard-Man WASH:FLAT:.793 x 1.24 x .06:HT736-0287WASH:FLAT:.793 x 1.24 x .06:HT
34 611-0053AXLE ASM:TRACK:.750 SERR
35 750-0904SPACER
36 618-0043PLT:LATCH
37 750-0903SPACER
38 732-0209SPR:EXTN:.48 OD x 2.03
39 Yard-Man SCREW:TT:5/16-18:1.00:HXINDWSH710-0602SCREW:TT:5/16-18:1.00:HXINDWSH
40 719-0295ACOVER
41 746-0948STEERING CABLE
45 Yard-Man RING:RET:.56 DIA SHAFT716-0114RING:RET:.56 DIA SHAFT
46 618-0046BCARRIER ASSY.
47 717-1211BGear
48 716-0115RING:RET:.56 DIA SHAFT
49 713-0414GEAR ASSY-PINION
50 711-0912DRIVE SHAFT
51 736-0502WASH:FL:.580x1.060x.020:HD
52 736-0336WASH:SHIM:.625x1.000x.030:HD
53 715-0120PIN-SPRING SPIR
54 717-1209AGEAR 12-T
55 717-1210AGEAR-18T
