Stiga Baujahr 2017 Park Pro 2017 Park Pro 340 IX 13-6451-11 - Season 2017 Hydraulic Lift Ricambi

Tube Connection

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

112375001/0

Posizione:

8.61 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

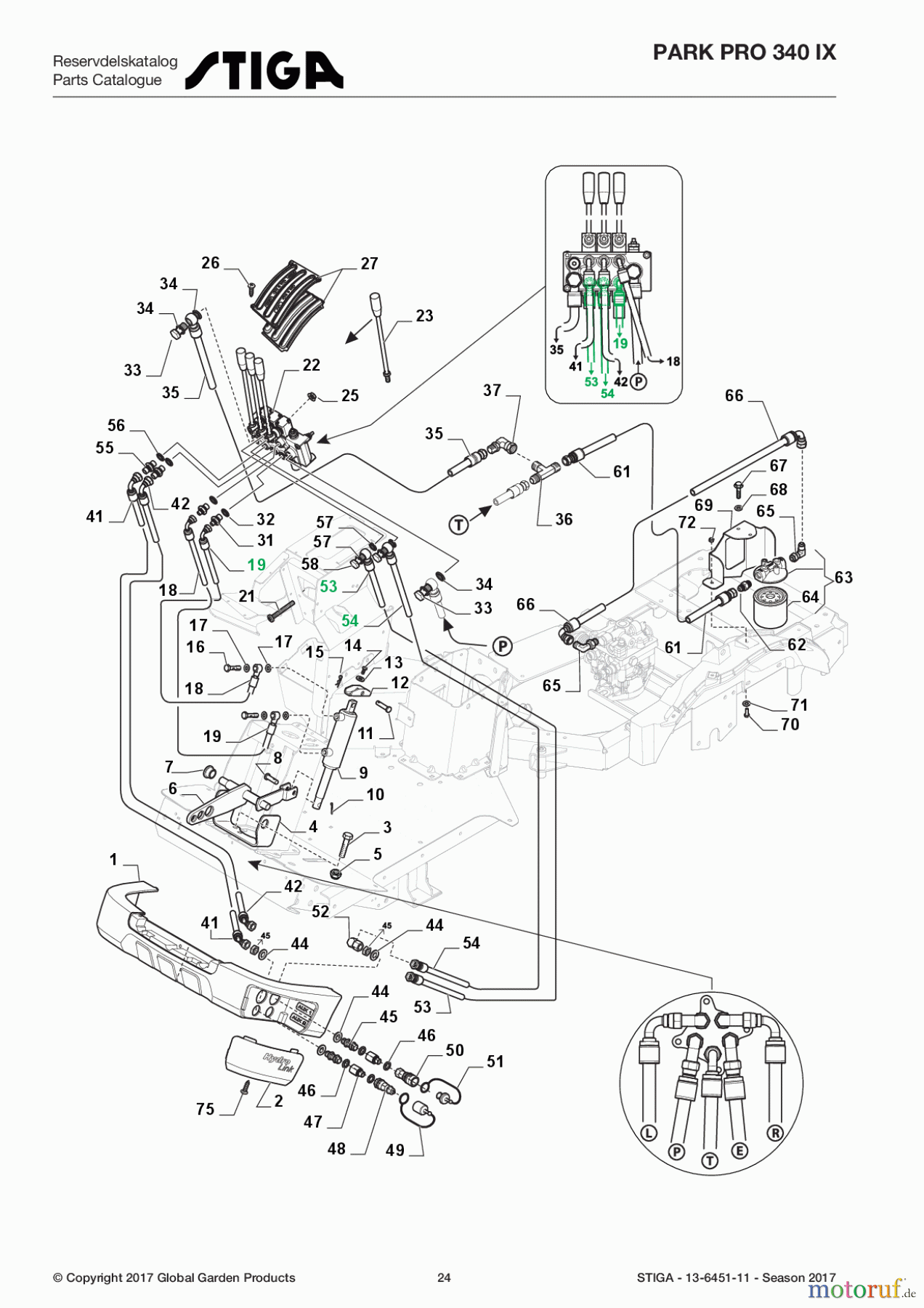

Stiga Frontmäher Baujahr 2017 Park Pro 2017 Park Pro 340 IX 13-6451-11 - Season 2017 Hydraulic Lift

Posizione	Articolo numero	Descrizione
1	337502501/0	Bumper
2	337109530/0	Cover
3	112794300/0	Screw
4	337774007/0	Fulcrum Clamp
5	112156602/0	Nut
6	387256051/0	Lift Lever
7	1134-2684-01	Bearing
8	1134-4817-01	Pin
9	1137-0071-01	Hydraulic Cylinder
10	9599-0054-02	Split Pin
11	1134-4816-01	Pin
12	1134-4815-01	Cylinder Bracket
13	112521330/0	Washer
14	9598-0002-02	Elastic Pin
14	9893-0616-16	Screw
16	1134-4826-01	Banjo Bolt
17	1134-4947-01	Washer
18	1137-0193-01	3/16" Hydraulic Hose
19	1137-0193-01	3/16" Hydraulic Hose
21	112735669/0	Screw
22	187145000/1	Hand Operated Valve
23	187318253/0	Operating Lever
25	112292102/0	Nut
26	112728706/0	Screw
27	387559002/0	Plate
31	1134-4824-01	Adapter
32	1134-4948-01	Washer
33	1134-6323-01	Banjo Bolt 3/8
34	1134-4948-02	Washer
35	387869509/0	Oil Hose
36	112375000/0	Tube Connection
37	112000401/0	Tube Connection
41	387869503/0	Oil Hose
42	387869503/0	Oil Hose
44	112522050/0	Washer
45	1134-7296-01	Hydraulic Coupling (1/4)
46	1134-4948-01	Washer
47	112446500/0	Tube Connection
48	1134-6042-01	1/4" Quick Coupling-Male
49	1134-7175-01	1/4" Plastic Cap
50	1134-7172-01	1/4" Quick Connector-Female
51	1134-7173-01	1/4" Plastic Plug
52	112000400/0	Tube Connection
53	387869504/0	Oil Hose
54	387869504/0	Oil Hose
55	112375001/0	Tube Connection
56	1134-4948-01	Washer
57	1134-4948-01	Washer
58	112320450/0	Nut
61	387869510/0	Tube Connection
62	1134-4282-01	Hydraulic Nipple
63	1134-4587-01	Hydraulic Filter Assy
64	1134-4109-01	Oil Filter
65	112000402/0	Hydraulic Angle Coupling
66	387869505/0	Oil Hose
67	9931-3516-16	Screw
68	112523040/0	Washer
69	337785011/0	Support
70	112791200/1	Screw
71	112523040/0	Washer
72	112154510/0	Nut
75	112735598/0	Screw
