Stiga Baujahr 2017 Villa - Ready 2017 Villa SILENT 2F2720231/S16 - Season 2017 Transmission Ricambi

Thrust Bearing Kit

Articolo numero:

1139-1508-01

Posizione:

87.99 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

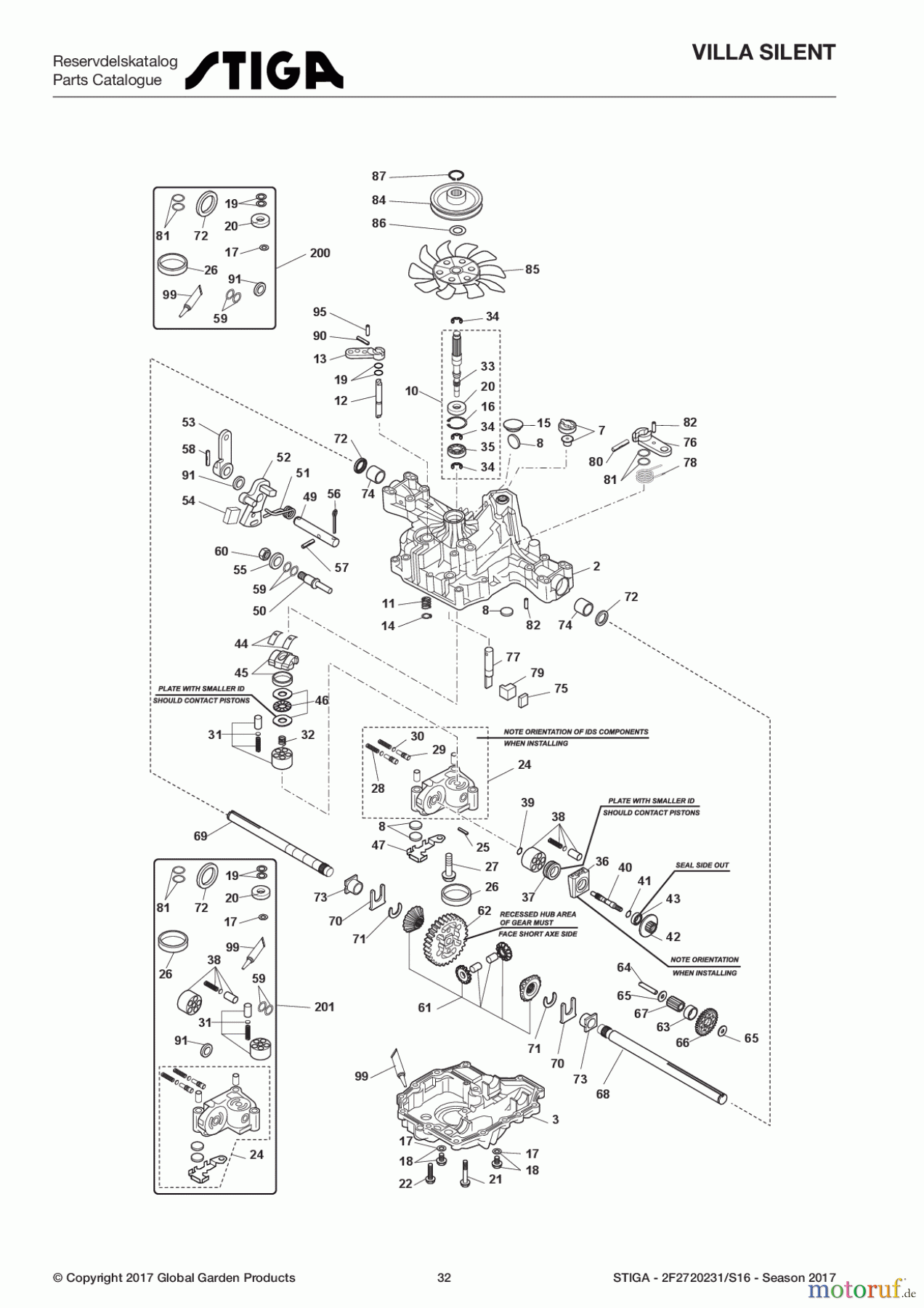

Stiga Frontmäher Baujahr 2017 Villa - Ready 2017 Villa SILENT 2F2720231/S16 - Season 2017 Transmission

Posizione	Articolo numero	Descrizione
1	1134-7766-01	Transaxle K46Cj
2	1139-1485-01	Hus Upper Case Kit
3	1139-1402-01	Case-Lower
7	1139-1595-01	Vent Valve
8	1139-1150-01	Magnet
10	1139-1499-01	Pump Shaft Kit
11	1139-1347-01	Spring
12	1139-1324-01	Bypass Shaft Bypass
13	1139-1189-01	By-Pass Lever
14	1139-1161-01	Ring
15	1139-1275-01	Bore Plug
16	1139-1104-01	Snap Ring
17	1139-1103-01	Washer
18	1139-1500-01	Drain Bolt Kit
19	1139-1117-01	O-Ring
20	1139-1119-01	Seal 15357
21	1139-1295-01	Screw
22	1139-0244-01	Screw
24	1139-1599-01	Center Case
25	1139-1158-01	Pin
26	1139-1405-01	Filter
27	1139-1718-01	Bolt
28	1139-1468-01	Ids Valve
29	1139-1243-01	Spring
30	1139-1307-01	Filter
31	1139-1601-01	Cylinder Block Kit (Pump)
32	1139-1245-01	Pump Spring
33	1139-1406-01	Pump Shaft
34	1139-1146-01	Ring
35	1139-1110-01	Ball Bearing
36	1139-1157-01	Housing
37	1139-1501-01	Bearing
38	1139-1717-01	(Motor) Cylinder Block
39	1139-1160-01	Washer
40	1139-1353-01	Motor Shaft
41	1139-1021-01	Snap Ring
42	1139-1272-01	Motor Gear
43	1139-1453-01	Bearing
44	1139-1066-01	Use 1139-1141-01
45	1139-1597-01	Swash Plate
46	1139-1508-01	Thrust Bearing Kit
47	1139-1598-01	Magnet Holder
49	1139-1354-01	Control Shaft
50	1139-1410-01	Fulcrum
51	1139-1312-01	Torsion Spring
52	1139-1409-01	Lever
53	1139-1325-01	Control Lever
54	1139-1596-01	Jerky Plate
55	1139-1102-01	Washer
56	1139-1355-01	Pin
58	1139-1285-01	Pin
59	1139-1115-01	O-Ring
60	1139-1127-01	Nut
61	1139-1404-01	Collar
64	1139-1256-01	Washer
66	1139-1267-01	Ring
72	1139-1080-01	Bushing
74	1139-1414-01	Bushing
75	1139-1260-01	Brake
81	1139-1114-01	O-Ring
82	1139-1281-01	Pin
84	1139-1484-01	Belt
86	1139-1266-01	Washer
87	1139-1149-01	Sna
90	1139-1280-01	Pin
91	1139-1303-01	Seal
99	1139-1443-01	Sealant
