Golf 345 HLE 02841.06 (1992) Basic machine Ricambi

Name: LVR ASM:HGT:L0-WHL
Price: 11.76 EUR

LVR ASM:HGT:L0-WHL

Articolo numero:

079.29.735

Posizione:

DINNORM:

VORNE 682-0232

Modell Year:

345 HLE / 1992

11.76 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

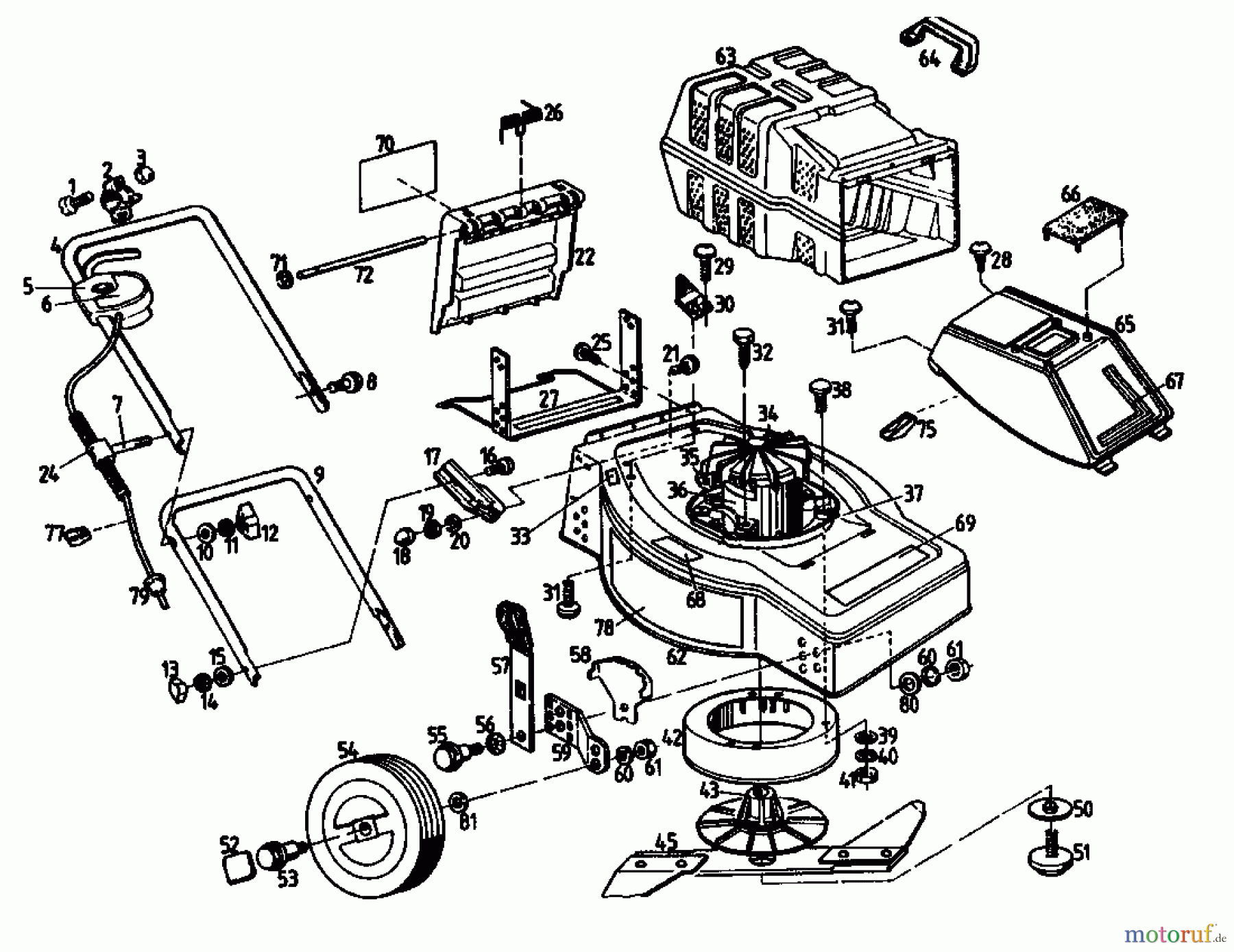

Golf Electric mower 345 HLE 02841.06 (1992) Basic machine

Posizione	Articolo numero	Descrizione
1	21.6421.76	Screw
2	079.05.195	Cable clamp
3	24.3423.14	Nut
4	079.05.602	Handle upper part
5	079.39.805	Switch plug
6	000.50.337	Decal
7	21.1443.79	Screw
8	22.3419.32	SCREW
9	079.05.324	Handle lower part
10	24.6481.18	WASHER 8.4 DIN125
11	24.8191.18	L-washer
12	090.26.829	WING NUT
13	000.02.377	WING NUT
14	24.8191.18	L-washer
15	24.6481.18	WASHER 8.4 DIN125
16	21.1441.75	Screw
17	079.05.197	HANDLE BRACKET
18	24.3421.18	Nut
19	28.7111.05	BELLEVILLE
20	24.6481.18	WASHER 8.4 DIN125
21	22.3419.24	Screw
22	079.26.952	DEFLECTOR
24	079.05.304	WIRE SLEEVE
25	000.02.493	SCREW
26	000.31.182	SPRING
27	079.25.702	Rail
28	22.6417.38	Screw
29	000.02.370	Screw
30	001.10.129	Cable clamp
31	000.02.371	Screw
32	000.02.495	SCREW
33	000.49.641	LABEL
34	079.13.003	FAN
35	079.13.012	CONDENSER
36	079.13.603	ELECTRIC MOTOR 230V 1300W
37	079.26.190	MOTOR SUPPORT, BLACK
38	22.3419.26	Screw
39	24.6487.20	Washer
40	24.8195.18	Spring washer
41	24.1421.18	Nut
42	079.25.260	RING
43	079.77.906	BLADE HUBE
45	079.77.880	Blade assy.
50	079.77.110	TAB-LOCKING
51	079.77.855	Screw
52	079.29.434	Wheel cap
53	079.29.208	Screw
54	079.30.803	WHEEL
55	079.29.178	Screw
56	28.7111.50	Spring Washer 25x1
57	079.29.735	LVR ASM:HGT:L0-WHL
58	079.29.589	Adjusting plate
59	079.29.530	PIVOT ARM
60	24.8195.18	Spring washer
61	24.1421.18	Nut
62	079.25.985	Deck
63	079.80.936	Grass catcher
64	079.80.109	GRIP
65	079.24.142	HOOD
66	079.24.170	COVER
67	000.50.356	Decal
68	000.50.340	Type plate
69	000.50.291	Decal
70	000.50.303	Decal
71	28.3595.54	RETAINING WASHER
72	079.26.027	ROD
75	079.25.455	ANGULAR STOP
77	000.13.064	Cable clamp
78	000.49.539	Decal
79	079.11.244	Cable sleeve
80	24.6486.18	WASHER A8.4 DIN 9021
81	24.6487.20	Washer
