Golf 133 VE 02826.04 (1994) Basic machine Ricambi

Pin

Articolo numero:
25.3197.95
Posizione:
15
DINNORM:
5X28 FEDERST. NATUR
Modell Year:
133 VE / 1994
non più disponibile

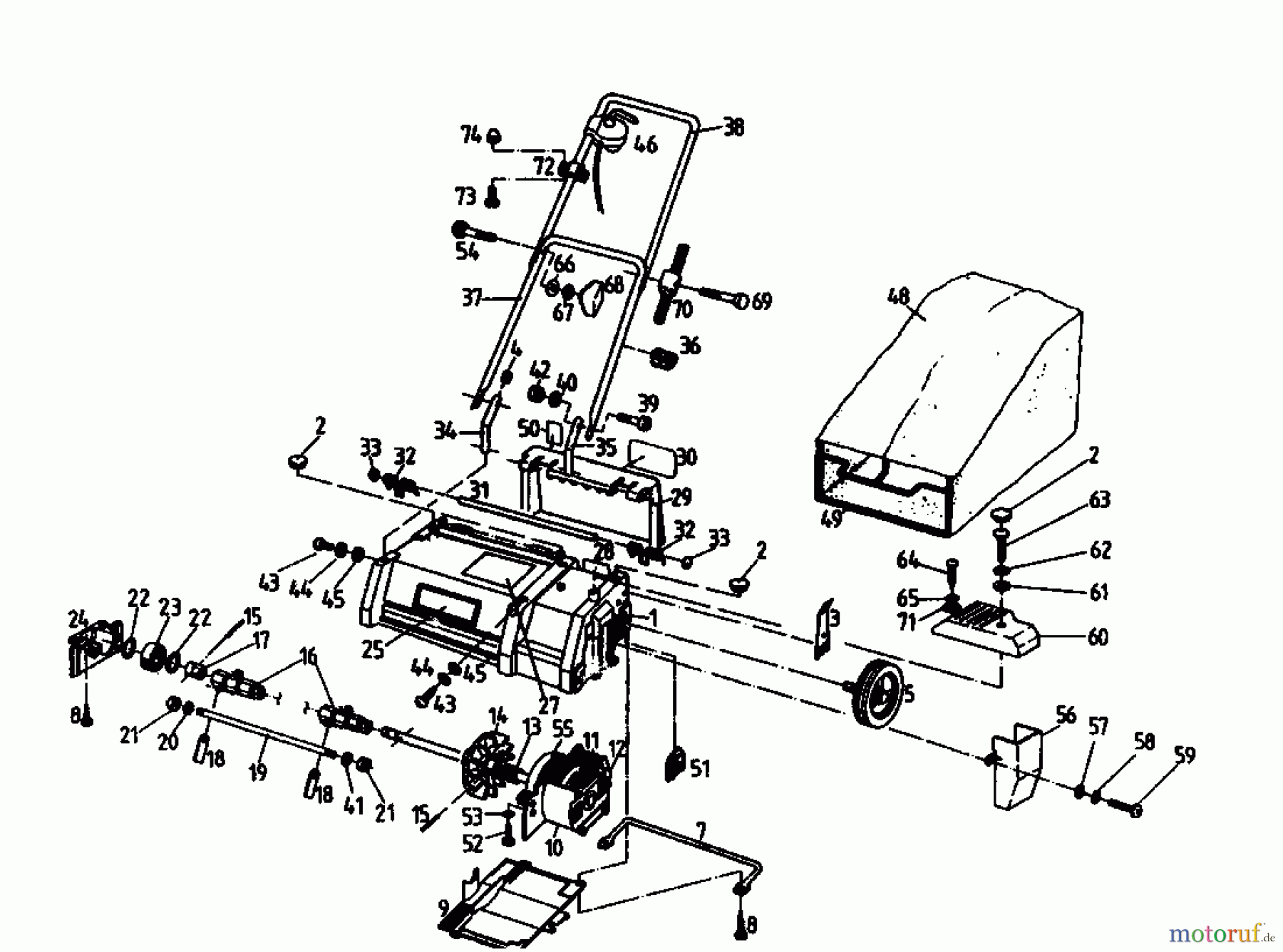

Golf Electric verticutter 133 VE 02826.04 (1994) Basic machine
PosizioneArticolo numeroDescrizione
1 079.85.298Housing cpl.
2 000.70.557Cap
4 000.34.299Plug
5 079.29.986Wheel
7 079.85.218BAIL
8 000.02.493SCREW
9 079.85.318Cover
10 079.11.692E-MOTOR 1000W CRA 52/21A
11 079.11.898Condenser
12 079.38.126Insulating piece
13 000.30.275spring
14 079.85.200Fan
15 25.3197.95Pin
16 079.85.231blade holder
17 079.85.176Hub
18 079.85.230BLADE
19 Golf HINGE PIN079.85.205HINGE PIN
20 24.6273.15Shim
21 24.1426.14NYL-STOP-NUT M6 DIN985-8
22 28.3591.17Retaining ring
23 26.1027.43Ball bearing
24 079.85.193Bushing
25 000.50.692GOLF-KLEBESCHILD
27 000.50.386Decal
28 000.51.499LBL.IDENTIFICATION
29 079.85.217Rear flap
30 000.50.329Decal
31 079.85.206ROD,HYDRO DISENGAGEMENT
32 000.31.166SPRING-EXTENSION
33 000.02.427Lock washer
34 079.06.179Handle tube right
35 079.06.180Handle tube left
36 000.13.064Cable clamp
38 079.06.713Upper handle assy.
39 23.5422.20CURVED CARR. BOLT M6x30
40 24.6481.14WASHER A6.4 DIN 125-ST
41 24.1426.14NYL-STOP-NUT M6 DIN985-8
42 24.1426.14NYL-STOP-NUT M6 DIN985-8
43 22.6418.35Screw
44 24.8191.09Spring washer
45 24.6486.13Washer
46 079.39.829SWITCH
48 079.80.841Grass catcher
49 079.80.836GRASS BAG FRAME
50 000.50.393Decal
51 079.85.213Bearing reinforcement
52 000.02.494Screw
53 24.8190.14Washer
54 22.3417.31Screw
55 079.11.303Air guide plate
56 079.85.224Air guide
57 24.6486.13Washer
58 24.8191.09Spring washer
59 000.02.371Screw
60 079.85.225HOOD
62 24.8190.14Washer
63 000.02.493SCREW
64 000.02.371Screw
65 24.8191.09Spring washer
66 24.6481.18WASHER 8.4 DIN125
67 24.8191.18L-washer
68 098.26.829
69 21.1441.78Screw
70 079.05.304WIRE SLEEVE
71 079.05.304WIRE SLEEVE
72 079.05.308Cable clamp
73 21.6421.76Screw
74 24.3423.14Nut
