ROD:HNDL:DECK RELEASE .5 DIA

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
747-3188
Posizione:
40
DINNORM:
FINISH:701-01000
Modell Year:
HDS 2205 / 2005 HDS 2205 / 2006 HDS 2205 / 2005 HDS 2205 / 2006
29.40 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

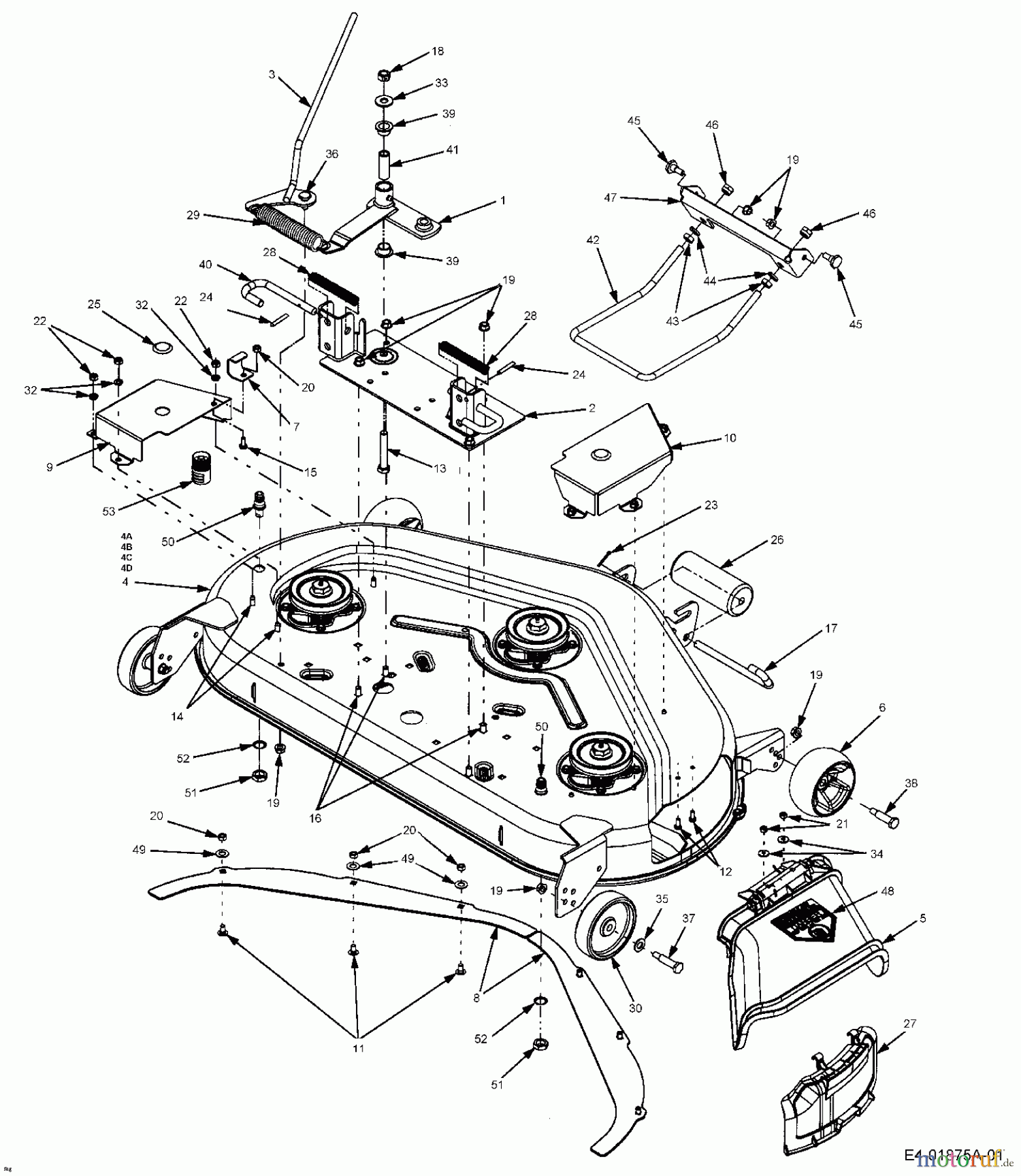

Cub Cadet Garden tractors HDS 2205 14A-2D7-603 (2005) Mowing deck 44
PosizioneArticolo numeroDescrizione
1 603-0857ARM ASSY-IDLER
2 603-0183AMOUNTING ASSY. PLATE 48" DECK
3 603-04113HANDLE ASSEMBLY
4 603-04269
4A 777S30014LABEL-MOWER DANGER STRGHT
4B 777S30018ASSEMBLE CHUTE BEFORE USING LB
4C 777S30503RDR:RT SD DECK:DOM
4D 777I20847LABEL
5 631-0094
6 634-04188KIT DECK-WHEEL
7 703-2559BRACKET
8 703-3359BAFFLE, SKIRT
9 703-3742CVR:BELT LH
10 703-3743COVER-RH BELT
11 Cub Cadet BOLT:CRG: 5/16-18:.62 GR5710-0260ABOLT:CRG: 5/16-18:.62 GR5
12 710-0751HHCS:1/4-20:.620:GR5:STD
13 710-1010BOLT-HEX
14 710-1611BSCR:TT:5/16-18:0.750:PANTRXI
15 Cub Cadet SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
16 Cub Cadet BOLT:CRG:3/8-16:0.75:SHRT NK710-3178BOLT:CRG:3/8-16:0.75:SHRT NK
17 711-3314PIN, ROLLER
18 712-0239LOCK NUT 1/2-20
19 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
20 Cub Cadet NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
21 712-3006NUT:HEX:1/4-20:GR5
22 Cub Cadet NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
23 Cub Cadet PIN:COT:SPLIT:1/8 X 1.0714-0115PIN:COT:SPLIT:1/8 X 1.0
24 715-3003PIN, SPIROL SPRING
25 726-3045PLUG,BUTTON
26 731-3005ROLLER, FRONT AND REAR
27 731-3316PLUG-MULCHING
28 732-3127COMPR. SPRING:0.66 OD x 1.9 LG
29 732-0861SPRING,EXT.1"
30 734-0973WHEEL:DECK 5.0 X 1.38
32 Cub Cadet WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
33 736-0179WASHER-FL
34 Cub Cadet WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
35 Cub Cadet WASHER:FL:.510 X 1.000 X .060736-0272WASHER:FL:.510 X 1.000 X .060
36 738-0143SCR:SHLDR:.496x.336:3/8-16
37 Cub Cadet SHLD SCR738-0533SHLD SCR
38 Cub Cadet SCR:SHLDR:.496 x 1.525: 3/8-16738-0373SCR:SHLDR:.496 x 1.525: 3/8-16
39 741-0338FLANGE BEARING
40 747-3188ROD:HNDL:DECK RELEASE .5 DIA
41 750-3136SPACER
42 747-3172BBRACKET-FRONT LIFT
43 712-3048HEX JAM NUT 1/2-13 GR.5
44 736-0921WASHER:LOCK:1/2:REGULAR DUTY
45 Cub Cadet SCR:SHLDR: .500 DIA X .434738-0507BSCR:SHLDR: .500 DIA X .434
46 Cub Cadet NUT:HEXLK:1/2-13:GRB:NYLON712-3083NUT:HEXLK:1/2-13:GRB:NYLON
47 703-2248BRACKET-FRONT LIFT
48 777S30284LABEL DANGER
49 736-0226WASHER:FLAT:.474 x.879 x.064
50 737-04003BNOZ:DECK:WATER
51 Cub Cadet NUT:HEX:M16-1.5 DIN 936712-0641NUT:HEX:M16-1.5 DIN 936
52 Cub Cadet WASH:LOCK:SCHNORR 17X23.8X1.95736-0760WASH:LOCK:SCHNORR 17X23.8X1.95
53 721-04041ADAPER:WATER NOZZLE
