Cub Cadet CC 2250 RDH 4 WD 54A1F4RT603 (2011) Deck lift Ricambi

FILLISTER FLANGE HEAD SCREW

Articolo numero:
FG106136
Posizione:
38
DINNORM:
ÄHNLICH DIN 7380 10.9 GAL ZINC
Description:
M 4x12
Modell Year:
CC 2250 RDH 4 WD / 2011
non più disponibile

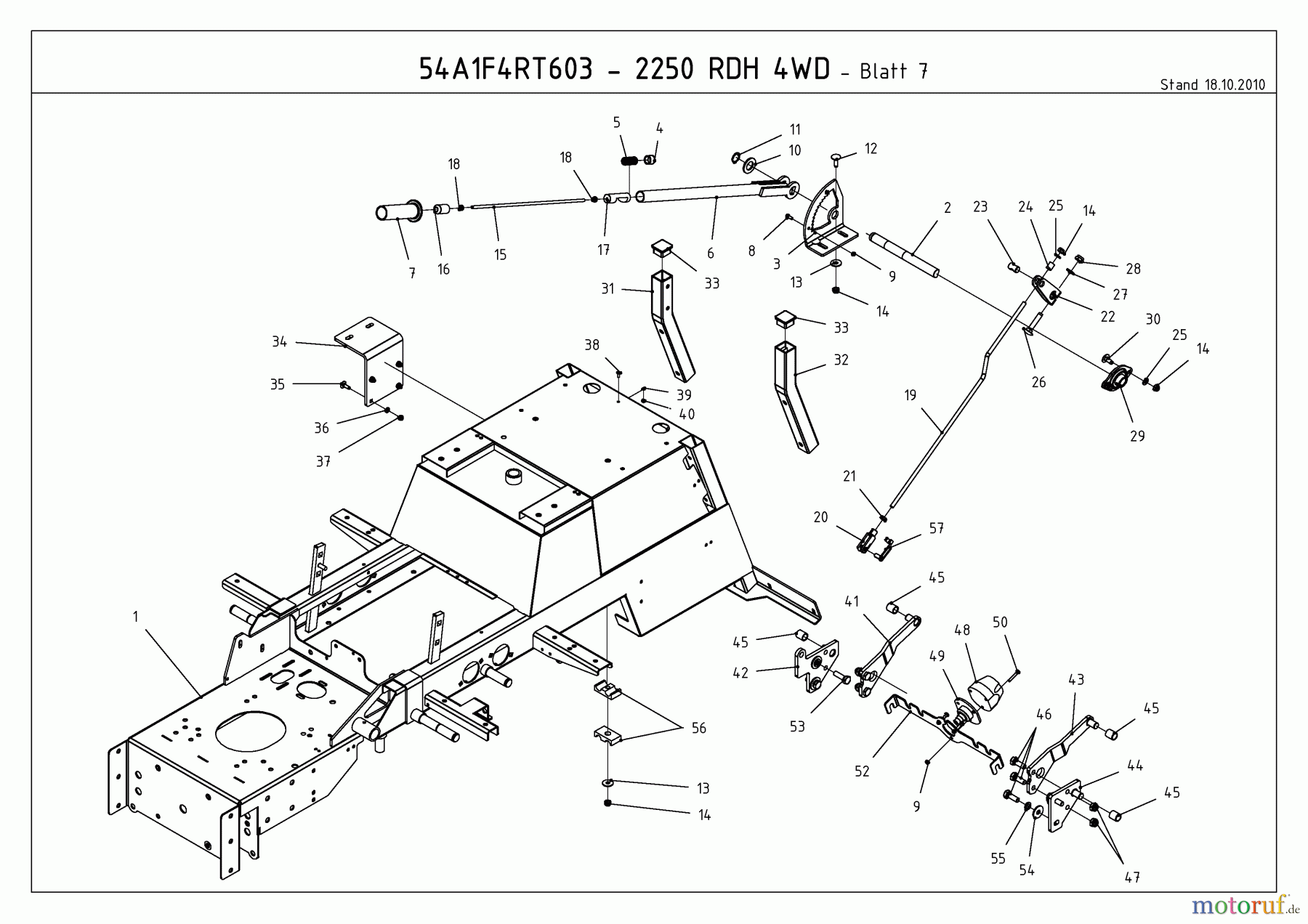

Cub Cadet Compact tractors CC 2250 RDH 4 WD 54A1F4RT603 (2011) Deck lift
PosizioneArticolo numeroDescrizione
1 FG10563RAHMEN GENIETET
2 FG105756EXCAVATION SHAFT, MOW. MACH
3 FG100194EXCAVATION SEGMENT MOW. MACH.
4 FG100379SPRING GUIDE EXC. MOW. MACH.
5 FG100223PRESSURE SPRING
6 FG100366EXCAVATION LEVER
7 FG100008HANDLE BAR
8 710-1707HEX. SCREW M5x12 DIN 933-8.8
9 712-0675NUT:HEX:M5 x.80:DIN 985
10 FG100056WASHER
11 Cub Cadet CIRCLIP716-04132CIRCLIP
12 710-04451BOLT:M8x1.25x25 DIN 603
13 736-0701WASH:FLAT:8.4x24x2.00 DIN 9021
14 712-0692NUT:HEXLK:M8-1.25 NYLON DIN985
15 FG100380THREAD ROD, EXCAV. MOW. MACH.
16 FG100377PUSHER, EXCAV. MOW. MACH.
17 FG100391RASTER BOLT, EXCAV. MOW. MACH.
18 712-0689NUT:HEX:M6-1:DIN 934
19 FG12755FG12755
20 711-1407FRL:M8-32 x 18 DIA DIN 71752
21 Cub Cadet NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
22 FG105757CLAMP LEVER, EXCAVATION ROD
23 FG100365RECEIVER, BRAKE LEVERAGE
24 FG100383SPACER
25 736-0700WASH:FLAT:8.4 x 16 x 1.60
26 FG105865ROUND-HEAD-SCREW
27 736-0734WASH:FLAT:10,5 IDx20 OD DIN125
28 712-0637NUT:M10x1.5 DIN 985 NYLOCK
29 FG105199FLANGE BEARING
30 FG100079ROUND-HEAD SCREW
31 FG12604BRACKET RIGHT COMPLETE
32 FG12605BRACKET LEFT COMPLETE
33 FG100342PLUG PLASTICS: TUBE 35x35x1-3
34 FG105755BRKT, ANGLE
35 710-1687SCR:CARR:M6-1:20.00 LG:DIN 603
36 Cub Cadet WASH: FLAT: 6.4x12x1.6736-0668WASH: FLAT: 6.4x12x1.6
37 712-0691NUT:HEXLK:M6-1:NYLON:DIN 985
38 FG106136FILLISTER FLANGE HEAD SCREW
39 FG106134LOCK WASHER A 4,3 DIN 6797
40 712-0636NUT: HEX: M4: DIN 985
41 FG106141HANGER ASS'Y TO FIX, RH
42 FG106142HANGER ASSEMBLY RH
43 FG106143HANGER ASS'Y TO FIX, LH
44 FG106144SUSPENSION LEFT
45 FG105423FLOATING BEARING, NO COLLAR
46 FG105052HEXAGONAL SCREW
47 712-0637NUT:M10x1.5 DIN 985 NYLOCK
48 FG105072Wall plug
49 FG106125Gasket
50 FG106138LENS HEAD SCREW W. CROSS SLOT
52 FG106140SUPPORT REAR CIRCUIT POINTS
53 FG100115HEXAGONAL SCREW
54 Cub Cadet WASH:FLAT:10.5IDX30OD:DIN 9021736-0702WASH:FLAT:10.5IDX30OD:DIN 9021
55 736-0686LOCK WASHER B10 DIN 127
56 FG106208SCHELLENHÄLFTE D=16mm FÜR
57 726-0457S-BOLT: M8-32 DIN 71752
