MTD Mnirider 76 RDHE 13A721SD600 (2019) Cover panels Ricambi

Name: PLATE BAG MOUNT LH
Price: 20.27 EUR

PLATE BAG MOUNT LH

Articolo numero:

783-07376A

Posizione:

Modell Year:

Mnirider 76 RDHE / 2020 Mnirider 76 RDHE / 2019 Mnirider 76 RDHE / 2020

20.27 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

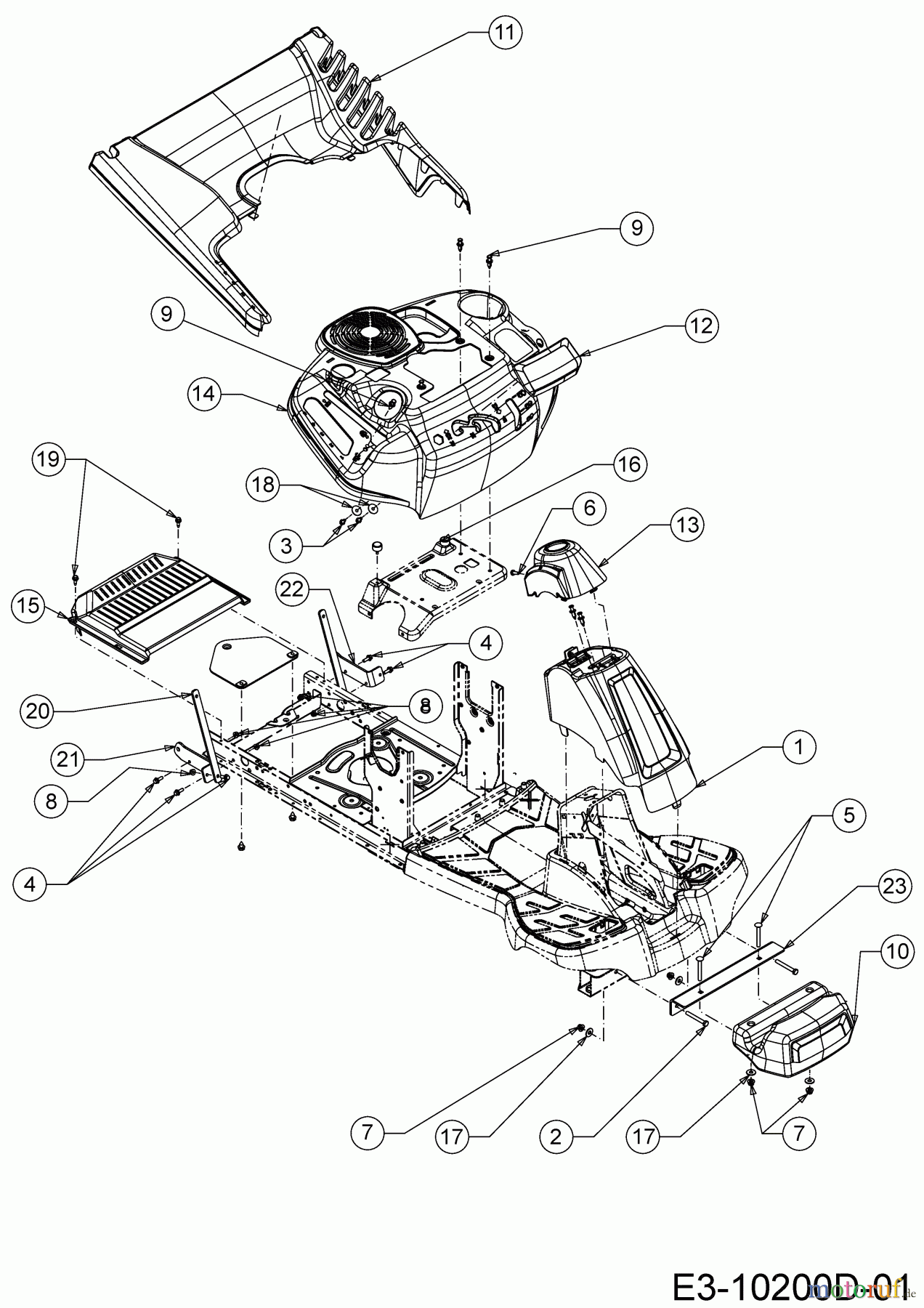

Posizione	Articolo numero	Descrizione
1	631-05038	COVER CHAIN/BAR
2	710-0378	HHCS:5/16-18:2.50:GR5:STD
3	710-04187A	SCREW HEX 1/4-15:0.50
4	710-04666	HHCS:1/4-20:0.75:GR5:STD
5	710-0572	BOLT:CRG:5/16-18:2.50:GR1:SPEC
6	710-0924	SCR:MACH:1/4-20:0.750 PANPHI
7	712-04063	NUT:HEXFLGLK:5/16-18:GRN5:NYL
8	712-04064	NUT:HEXFLGLK:1/4-20:GRN5:NYL
9	728-0199	RIV:PLASTIC:0.31X0.81
10	731-09227	COUNTER WEIGHT
11	731-10770	PANEL:TOP:MTD RED
12	731-11496	COVER-HARD TOP
13	731-11918	COVER STEERING COLUMN MTD RED
14	731-14275	DUST COVER
15	----	not available
16	735-05006	BUMPER:.62 DIA X .50
17	736-0159	WASH:FLAT:0.339X0.890X0.063
18	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD
19	738-04184A	SCR:SHLDR:0.370X0.108:TT
20	783-07314637	PLATE REINFORCE BAG
21	783-07319A	PLATE BAG MOUNT RH
22	783-07376A	PLATE BAG MOUNT LH
23	783-08135637	BRACKET COUNTERWEIGHT
