MTD 827 41AD7VBC678 (2017) Basic machine Ricambi

Name: SLIDER
Price: 33.81 EUR

SLIDER

Articolo numero:

791-182196

Posizione:

Modell Year:

827 / 2015 827 / 2014 827 / 2017 827 / 2018 827 / 2019 827 / 2016

33.81 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

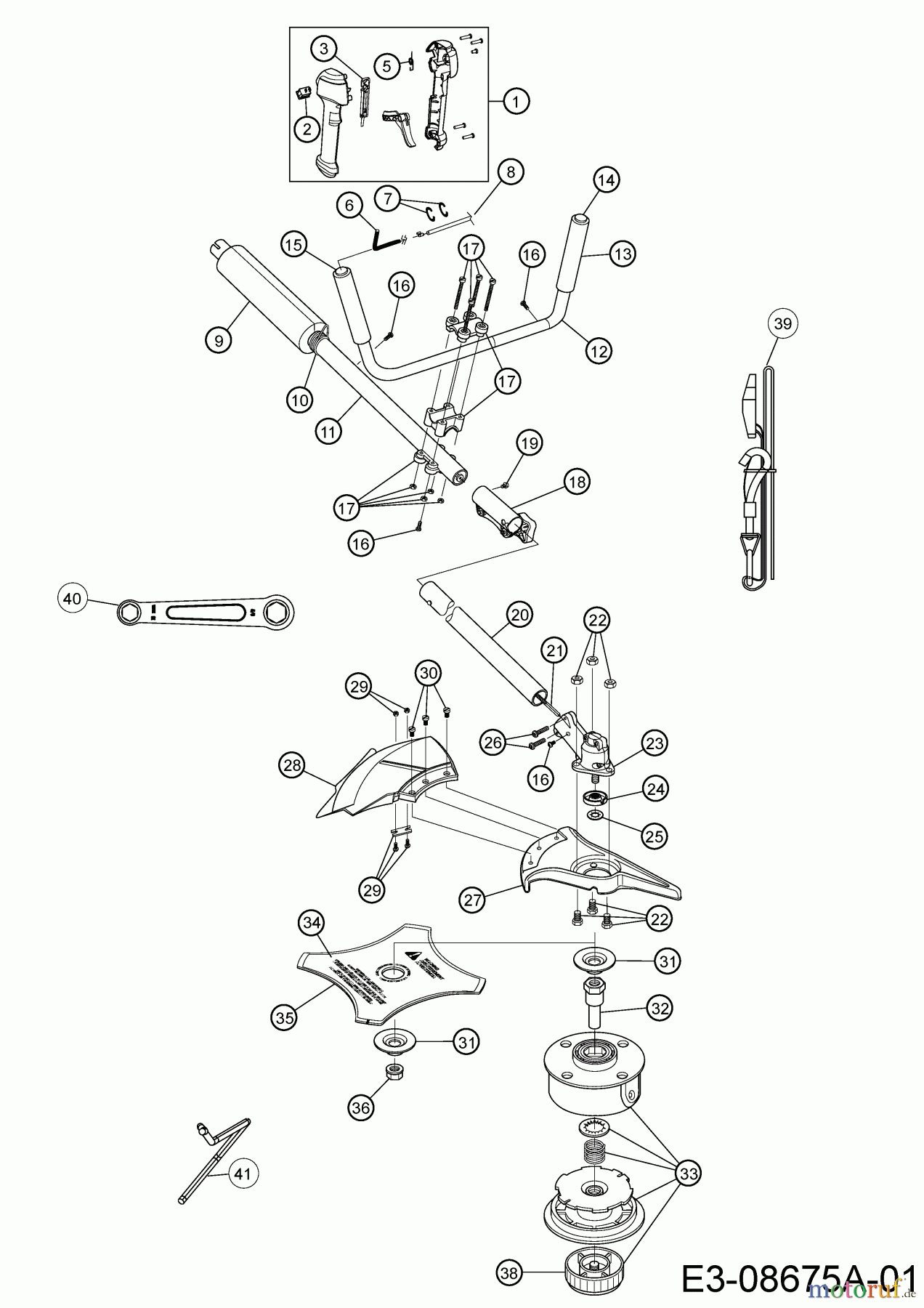

Posizione	Articolo numero	Descrizione
1	753-05181	THROTTLE HOUSING ASSEMBLY
2	791-182673	SWITCH-ON/OFF CULTV/EDGER
3	753-05171	LVR:THROT LKOUT
5	753-05007	THROTTLE TRIGGER SPRING
6	791-180863	CVR,THROTTLE CABLE
7	791-160428	CABLE TIE
8	753-05892	THROTTLE CABLE
9	791-180858	FOAM GRIP & COVER
10	791-180194	CLAMP, SHOULDER STRAP
11	753-04236	BOOM ASM:24.932"STRGT:BK
12	753-08285	HANDLE ASM BULLHORN
13	791-612831	GRIP
14	791-612021	TUBE CLOSURE
15	753-04096	ADAPTER
16	791-182519	BOLT-TORX HD
17	791-683295	HANDLE BRACKET ASSEMBLY
18	697-00606-11	CLICK LINK
19	791-182057	Screw
21	753-05267	LOWER DRIVE SHAFT
22	791-182200	SHIELD MOUNT SCREW ASSY
23	791-182193	GEARBOX ASSEMBLY
24	791-182196	SLIDER
25	753-04348	Lock washer
26	791-182195	Screw
27	791-147492	HOUSING
28	791-180387	SHIELD AND BLADE ASSEMBLY
29	791-682061	BLADE ASSEMBLY
30	791-683304	GUARD MOUNTING SCREWS
31	791-147490	BLADE RETAINING WASHER
33	791-147498	COMPLETE CUTTING HEAD ASSEMBLY
34	791-613231	SHIELD-TINE
35	791-145873B	BLADE BRUSHCUTTER REPLACEMENT
36	712-04105	NUT:HEXFLGLK:M10x1.25:CL8:NYL
37	791-610636B	BUTTON SPRING
38	791-180814B	ASM, LARGE BUMP KNOB
39	751-11261	HARN ASM:SHLDR:W/PAG:AG
40	791-613225	WRENCH
41	791-613226	LOCKING ROD TOOL
