Cub Cadet Big Country - 6x4 Utilty Vehicle 37AS640D603 (2006) Dashboard, Pedals Ricambi

PED ASM:BRAKE:400

Articolo numero:
607-04077
Posizione:
12
DINNORM:
607-04077
Modell Year:
Big Country - 6x4 Utilty Vehicle / 2004 Big Country - 6x4 Utilty Vehicle / 2005 Big Country - 6x4 Utilty Vehicle / 2006
non più disponibile

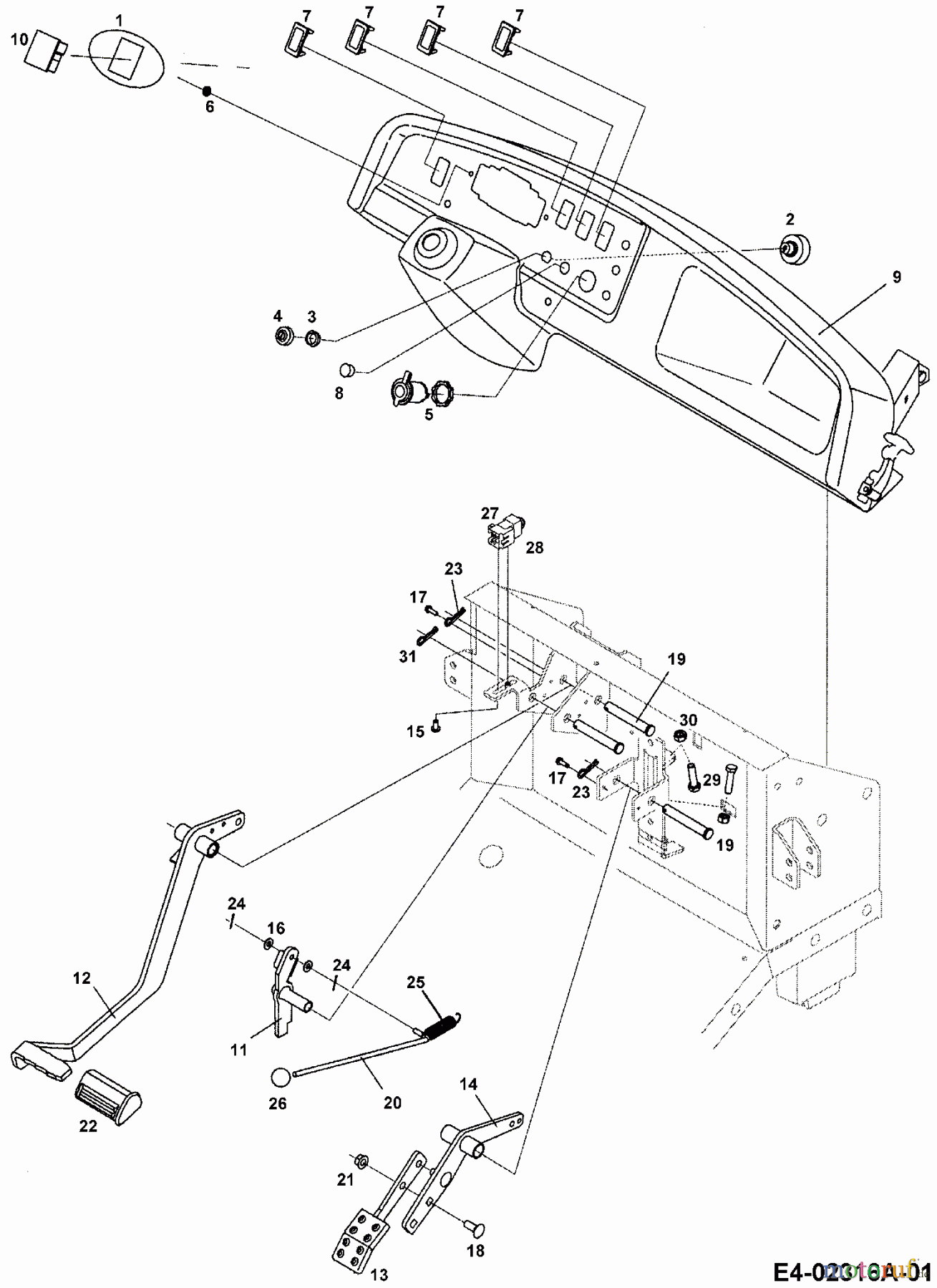

Cub Cadet Utility Vehicle Big Country - 6x4 Utilty Vehicle 37AS640D603 (2006) Dashboard, Pedals
PosizioneArticolo numeroDescrizione
1 731-04755COVER-HARD TOP
2 725-3284
3 731-1346
4 731-1347
5 725-2003RECEPTICAL-POWER 12V
6 726-0293NUT:RET:1/8
7 731-04010COVER
8 731-04023PLUG, HORN SWITCH
9 731-04676Instrument panel
10 725-04022HOUR METER INDICATOR
11 607-0021LEVER, PARKING BRAKE
12 607-04077PED ASM:BRAKE:400
13 607-04082PEDAL ASM-THROTTLE
14 607-04083PEDAL ARM ASSEMBLY, THROTTLE
15 Cub Cadet SCR:HL:1/4-20:.5:PANPHI710-04030SCR:HL:1/4-20:.5:PANPHI
16 736-0463WASH:FLAT: .250 x .630 x .052
17 710-1237HEXSCREW:T:10-32:.625:HXINDWSH
18 710-3168BOLT:CRG:3/8-16:1.00:GR5
19 711-04067CLEVIS PIN .50X3.25
20 711-1765ROD, BRAKE LOCK
21 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
22 735-3049FOOT BRAKE PAD
23 Cub Cadet PIN:COT:.125 x 1.75 INTERNAL714-0147PIN:COT:.125 x 1.75 INTERNAL
24 714-0127PIN:COT:1/16 X .75
25 732-1187SPRING
26 720-04001KNOB-BRAKE LOCK
27 721-3049COVER, PROTECTIVE
28 Cub Cadet SW:INTLK:NO/NC SNAP MT725-1657ASW:INTLK:NO/NC SNAP MT
29 Cub Cadet HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
30 Cub Cadet NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
31 Cub Cadet PIN:COT:INT:.08 X 1.42714-0101PIN:COT:INT:.08 X 1.42
