Cub Cadet FMZ 42 17AE4BFR603 (2008) Mowing deck frame Ricambi

Name: SCR:TT:5/16-18:.750:HXINDWSH
Price: 6.30 EUR

SCR:TT:5/16-18:.750:HXINDWSH

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

710-04484

Posizione:

DINNORM:

FINISH:701-01002

Modell Year:

FMZ 42 / 2008 FMZ 42 / 2009

6.30 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

in magazzino

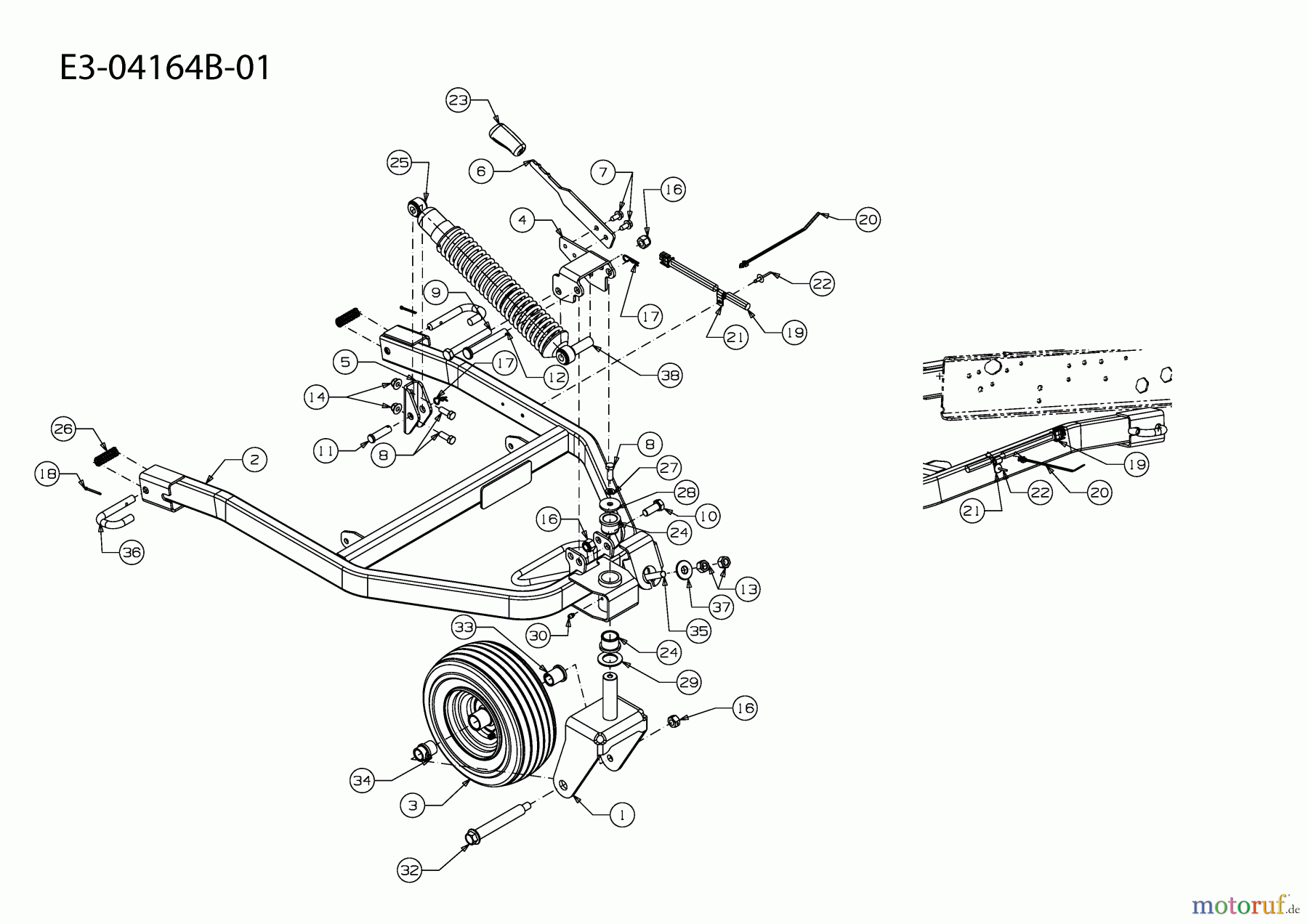

Posizione	Articolo numero	Descrizione
1	603-04308	YOKE ASSY. CASTER / FIRE RED
2	603-04513A	SLEEVE HITCH BRACKET ASSEMBLY
3	634-04212A	WHEEL CPL. 11.0X4.0X5.0 BEIGE
4	703-06568	BRACKET:SHABS MNT
5	703-06596	MT:SHABS:FRNT CUT
6	703-06673	HNDL:BRAKE/SHABS
7	710-04484	SCR:TT:5/16-18:.750:HXINDWSH
8	710-0514	HHCS:3/8-16:1.00:GR5:STD
9	710-0786	HHCS:1/2-13:4.00:GR5:STD
10	710-3032	BOLT-HEX 1/2-13X1-1/4
11	711-04997	PIN:CLEVIS:.50 DIA X 1.59
12	711-1206	PIN:CLV: .500 DIA X 3.75 LG
13	712-0206	NUT:HEX:1/2-13:GR5
14	712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
15	712-3022	NUT:HEXLK:1/2-13:GRB:CTRLK
16	712-3083	NUT:HEXLK:1/2-13:GRB:NYLON
17	714-04023	PIN:COT:.080 x 1.5625 INTERNAL
18	714-0470	PIN:COT:1/8 x 1.25
19	725-04715	HARN:INTERLOCK:FMZ
20	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG
21	726-04056	CLAMP:HOSE:-3
22	728-0177	POP RIVETS
23	731-04735	Handle
24	731-05500	BRG-FLANGE:1,00 ID x 1.246 OD
25	732-04512	ABSORBER-SHOCK:FRONT CUT
26	732-3127	COMPR. SPRING:0.66 OD x 1.9 LG
27	736-0169	WASH:LOCK:3/8:REGULAR DUTY
28	736-0227	WASH:FLAT:.390x1.500x.134
29	736-0250	WASH:FLAT:1.00x1.75x.107
30	737-3000	FTG:3/16:LNC:#70:DRIVE LUBE
31	737-3007	GREASE:ALAVANIA EP2
32	738-04182A	BOLT:SHLDR:.750x4.75:1/2-13
33	741-0516B	FLANGE BEARING .760x1.00x1.20
34	741-0990B	FLANGE BEARING .760 ID
35	747-04860	ROD:DECK:FRNT ADJ
36	747-3188	ROD:HNDL:DECK RELEASE .5 DIA
37	748-04069	CUP:PIVOT:DECK LIFT
38	750-05095	SPCR:.51 ID x.69 OD x 1.97
