Cub Cadet FMZ 42 17AE4BFR603 (2008) Hydrostatic gearbox left hand Ricambi

Name: SCREW, PATCH
Price: 6.83 EUR

SCREW, PATCH

Articolo numero:

HG-51616

Posizione:

DINNORM:

5/16-24X1

Modell Year:

FMZ 42 / 2008 FMZ 42 / 2009

6.83 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

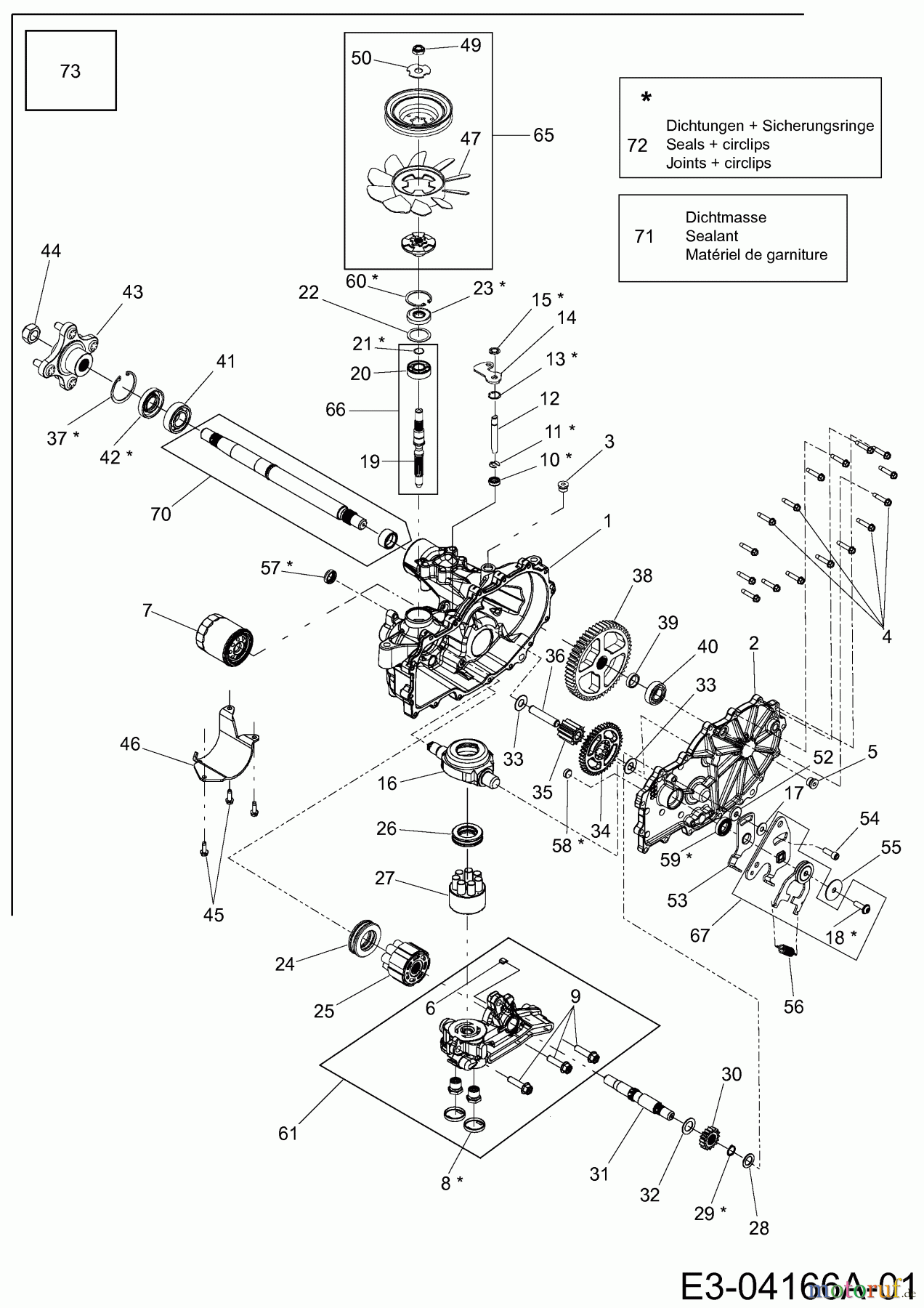

Posizione	Articolo numero	Descrizione
1	HG-71821	HOUSING ASSEMBLY, MAIN
2	HG-71571	SIDE COVER ASSEMBLY
3	HG-9005110-5600
4	HG-51190	HEXFLANGE SCREW 1/4-20X1.25
5	HG-9005110-5600
6	HG-51448	PLATE, BYPASS
7	HG-52114	FILTER-OIL
8	HG-52162	SEAL, PLUG
9	HG-52137	SCREW-SHLD
10	HG-51626	SEAL, LIP
11	HG-51628	Circlip
12	HG-52136	ROD, BYPASS
13	HG-51627	Circlip
14	HG-52742	ARM, BYPASS
15	HG-51630	Circlip
16	HG-51048	SWASHPLATE,TRUNNION MACHINED
17	736-0371	WASH:THRST:.343 x .880 x .062
18	HG-51812	SCREW, PATCH
19	HG-51062	SHAFT,INPUT
20	HG-50315	SELF-ALIGNING BEARING
21	HG-2000022	Circlip
22	HG-50951	bush
23	HG-51161	SEALING WASHER
24	HG-51462	BEARING THRUST
25	HG-71579	MINIBLOCK-C18/20
26	HG-50551	THRUST BEARING
27	HG-70723	KIT
28	HG-44371	WASHER. 1.59x1.032x.060
29	HG-44145	SNAP RING
30	HG-52149	GEAR
31	HG-53136	DRIVE SHAFT
32	HG-51069	WASHER,MOTOR SHAFT
33	HG-50132	washer
34	HG-52148	GEAR
35	HG-52583	GEAR
36	HG-51083	PIN
37	HG-50859	RING-RETAINING
38	HG-52108	GEAR
39	HG-52161	DISTANCE RING
40	HG-44121	BALL BEARING
41	HG-50771	BEARING BALL
42	HG-50772	SEALING WASHER
43	HG-71404	KIT, HUB 4 BOLT
44	HG-50863
45	HG-50752	SCREW-SHLD
46	HG-52257	GUARD, FILTER
47	HG-52365	CONDENSERR
49	912-0346
50	HG-51523	WASHER, SLOTTED
52	HG-52527	DISTANCE RING
53	HG-51946	ARM NEUTRAL
54	HG-51616	SCREW, PATCH
55	HG-51950	WASHER
56	HG-51605	SPRING EXTENSION
57	HG-53138	SEAL, LIP
58	HG-53139	SEAL, PLUG
61	HG-71567	KIT, CENTER SECTION
65	HG-71351	KIT, FAN/PULLEY
66	HG-71443	KIT, INPUT SHAFT
67	HG-71592	KIT, RETURN BIDIRECTIONAL
70	HG-71570	KIT, AXLE SHAFT
71	HG-50928	SEALANT 10.5 OZ
72	HG-71410	SEAL KIT
