Cub Cadet FMZ 50 17AI4BFP603 (2009) Steering column, Running board Ricambi

PAD:FOOT:FC RIGHT

Articolo numero:
735-04124
Posizione:
35
DINNORM:
FINISH:SCHWARZ
Description:
RECHTS. RIGHT
Modell Year:
FMZ 42 / 2008 FMZ 42 / 2009 FMZ 50 / 2009 FMZ 48 / 2009
40.43 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

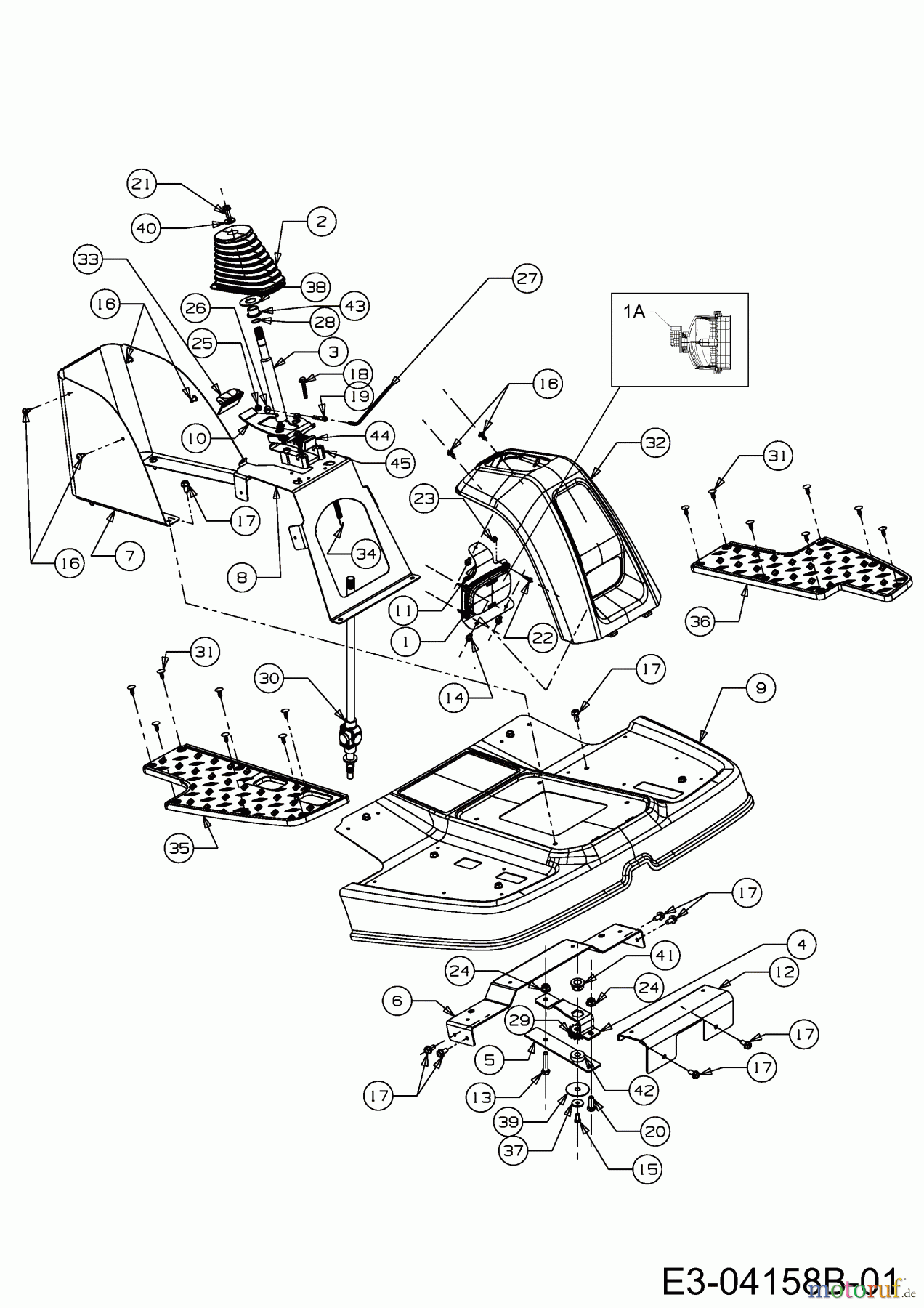

Cub Cadet Zero Turn FMZ 50 17AI4BFP603 (2009) Steering column, Running board
PosizioneArticolo numeroDescrizione
1 625-04036HDLT ASM:UV:DOMESTIC
1A 725-3161ABULB-HEAD LAMP
2 631-0076BOOT ASSY-TILT STEER
3 638-04031SHFT ASM:STRG:FRONT CUT
4 703-06388BRKT:SUPT:STEERING UPPER
5 703-06497BRKT:STRG:STUB PIVOT
6 703-06498ABRKT:CNSOL:MOUNT FRONT CUT
7 703-06551ACNSOL:FMZ
8 703-06553BRKT:CNSOL:REINFORCEMENT
9 703-06558ABOARD:RUN:FC
10 703-06560BRACKET
11 703-06563BRKT:HDLT:FC
12 703-06633ABRKT:CNSOL:MOUNT:FRONT FMZ
13 Cub Cadet HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
14 710-04187SCH:HL:1/4-15:0.50:HXINDWSH
15 710-0433HHCS:1/4-20:.625:GR5:LOCK
16 710-04483SCR:TT:1/4-20:0.500 PANTRXI
17 Cub Cadet SCR:TT:5/16-18:.750:HXINDWSH710-04484SCR:TT:5/16-18:.750:HXINDWSH
18 710-04586SCREW:TT:1/4-20x1.625:HXINDWSH
19 710-04776SCR:SOC HD:1/4-20x1.25 LG
20 Cub Cadet HHCS:3/8-16:1.00:GR5:STD710-0514HHCS:3/8-16:1.00:GR5:STD
21 Cub Cadet SCR:TT:5/16-18:0.875:HXINDWSH710-0650SCR:TT:5/16-18:0.875:HXINDWSH
22 710-3009SCR:T:#10-24:0.750:PANPHI
23 Cub Cadet NUT:HEXLK:#10-24:GR2:NYLON712-0161NUT:HEXLK:#10-24:GR2:NYLON
24 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
25 712-3006NUT:HEX:1/4-20:GR5
26 Cub Cadet NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
27 714-04065TOOL:WRENCH:3/16 ALLEN
28 716-0115RING:RET:.56 DIA SHAFT
29 717-04570GEAR:14T:STEERING FRONT CUT
30 717-04659SHFT:STRG:FRONT CUT
31 Cub Cadet MOUNTING CLIP:.250 DIA726-3046MOUNTING CLIP:.250 DIA
32 731-06324HSG:COLMN:FC
33 731-3224LEVER:TILT
34 732-0932SPR:EXT:.38 DIA x 5.6
35 735-04124PAD:FOOT:FC RIGHT
36 735-04125PAD:FOOT:FC LEFT
37 Cub Cadet WASHER:FLAT:.265 x .938 x .120736-0176WASHER:FLAT:.265 x .938 x .120
38 736-0514WASH:FLAT:.885 x 1.850 x.060
39 736-0518WASH:THRST:.445 x 1.920 x.060
40 Cub Cadet WASH:FLAT:.406 x.875 x.105736-3004WASH:FLAT:.406 x.875 x.105
41 Cub Cadet BRG:HEX FLNG741-0225BRG:HEX FLNG
42 741-04323BRG:FLG: 7/16 ID
43 748-0176FLANGE BEARING
44 748-3083APANEL-SELECT 5SP
45 748-3084ABLOCK-TILT STEERING
