Cub Cadet RZT 42 17BA5B4G603 (2006) Hydrostatic gearbox left hand Ricambi

Name: Circlip
Price: 21.00 EUR

Circlip

Articolo numero:

HG-44871

Posizione:

DINNORM:

HG-44871 *

Modell Year:

RZT 42 / 2006

21.00 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

in magazzino

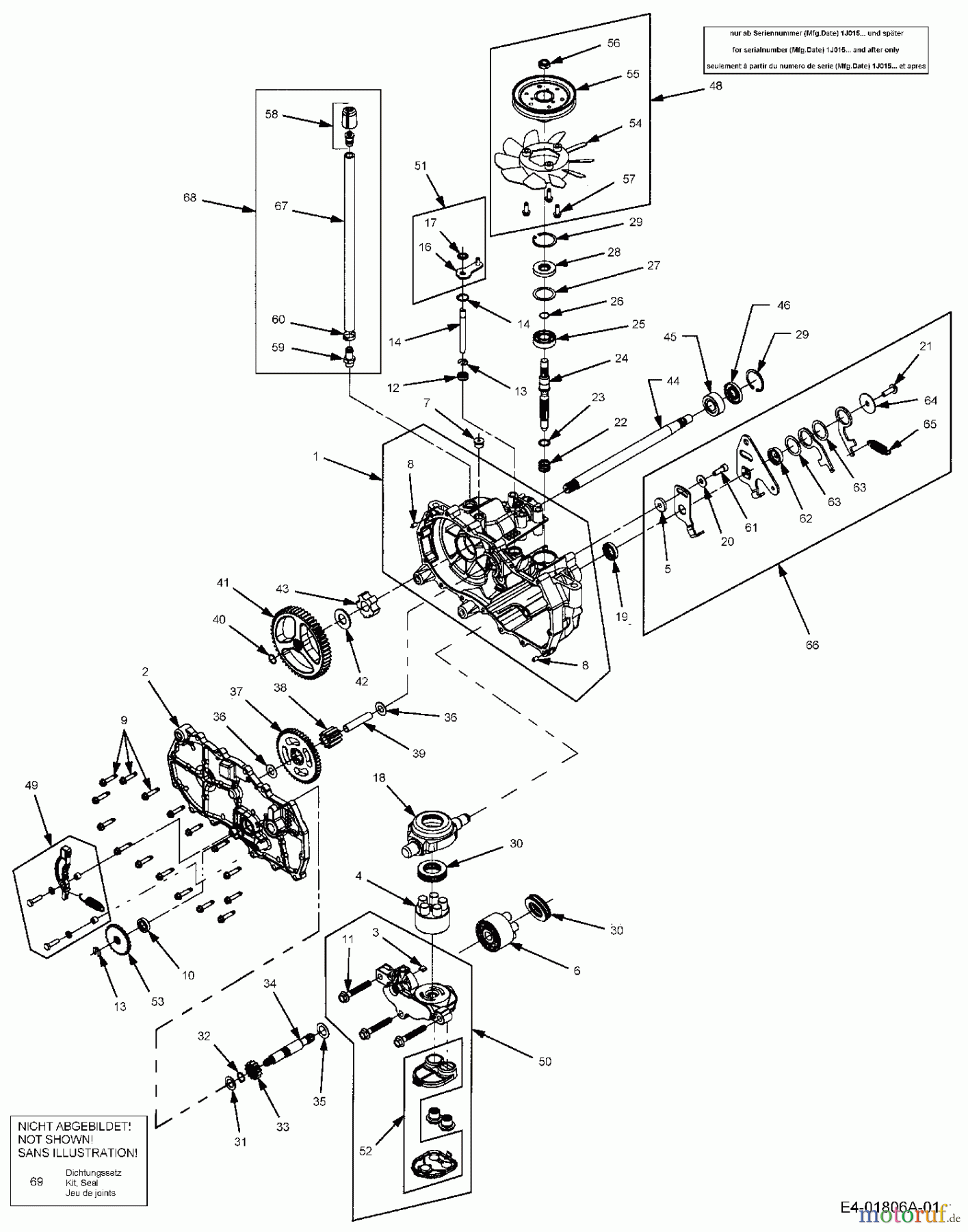

Posizione	Articolo numero	Descrizione
1	HG-70862L	HOUSING ASM-LH MAIN RZT
2	HG-70863L	SIDE ASM, LH RZT
3	HG-51448	PLATE, BYPASS
4	HG-70723	KIT
5	HG-51949
6	HG-70331	CRANKCASE-COMP
7	HG-9005110-5600
8	HG-9004800-2506
9	HG-51190	HEXFLANGE SCREW 1/4-20X1.25
10	HG-9008000-0125
11	HG-50016	Screw
12	HG-51626	SEAL, LIP
13	HG-51628	Circlip
14	HG-51625
15	HG-51627	Circlip
16	HG-51910
17	HG-51630	Circlip
18	HG-51048	SWASHPLATE,TRUNNION MACHINED
19	HG-51140	SEAL-LIP 18X32X7 DIN 3760
20	HG-44130
21	HG-51812	SCREW, PATCH
22	HG-2003014	Spring
23	HG-2003017	washer
24	HG-51062	SHAFT,INPUT
25	HG-50315	SELF-ALIGNING BEARING
26	HG-2000022	Circlip
27	HG-50951	bush
28	HG-51161	SEALING WASHER
29	HG-50329	USE 716-0115
30	HG-50551	THRUST BEARING
31	HG-44371	WASHER. 1.59x1.032x.060
32	HG-44145	SNAP RING
33	HG-51130	SPROCKET-#60
34	HG-51845
35	HG-51069	WASHER,MOTOR SHAFT
36	HG-50132	washer
37	HG-51129	Gear
38	HG-51043	Gear
39	HG-51083	PIN
40	HG-44871	Circlip
41	HG-51633
42	HG-44875	washer
43	HG-51088	BEARING SLEEVE
44	HG-51954	SHAFT-AXLE RZT
45	HG-51089	BEARING SLEEVE EXTERNAL
46	HG-51066	SEALING WASHER
47	HG-70868I
48	HG-71333
49	HG-71356	KIT BRAKE ARM LH+RH RZT
50	HG-71142	CENTER SECTION KIT
51	HG-71006
52	HG-70911
53	HG-51635	WASHER
54	HG-52315	FAN-7" 10 BLADE
55	HG-50302	PULLEY
56	HG-51244
57	HG-50752	SCREW-SHLD
58	HG-70921
59	HG-50591
60	HG-50590
61	HG-51616	SCREW, PATCH
62	HG-51947
63	HG-51948
64	HG-51950	WASHER
65	HG-51399
66	HG-71095
67	HG-51731
68	HG-71308	HOSE ASM-BREATHER
69	HG-70853	GASKET SET
