Cub Cadet RZT 42 17BA5B4G603 (2006) Deck lift Ricambi

LIFT LEVER

Articolo numero:
747-04224
Posizione:
39
DINNORM:
747-04224
Modell Year:
RZT 42 / 2006
non più disponibile

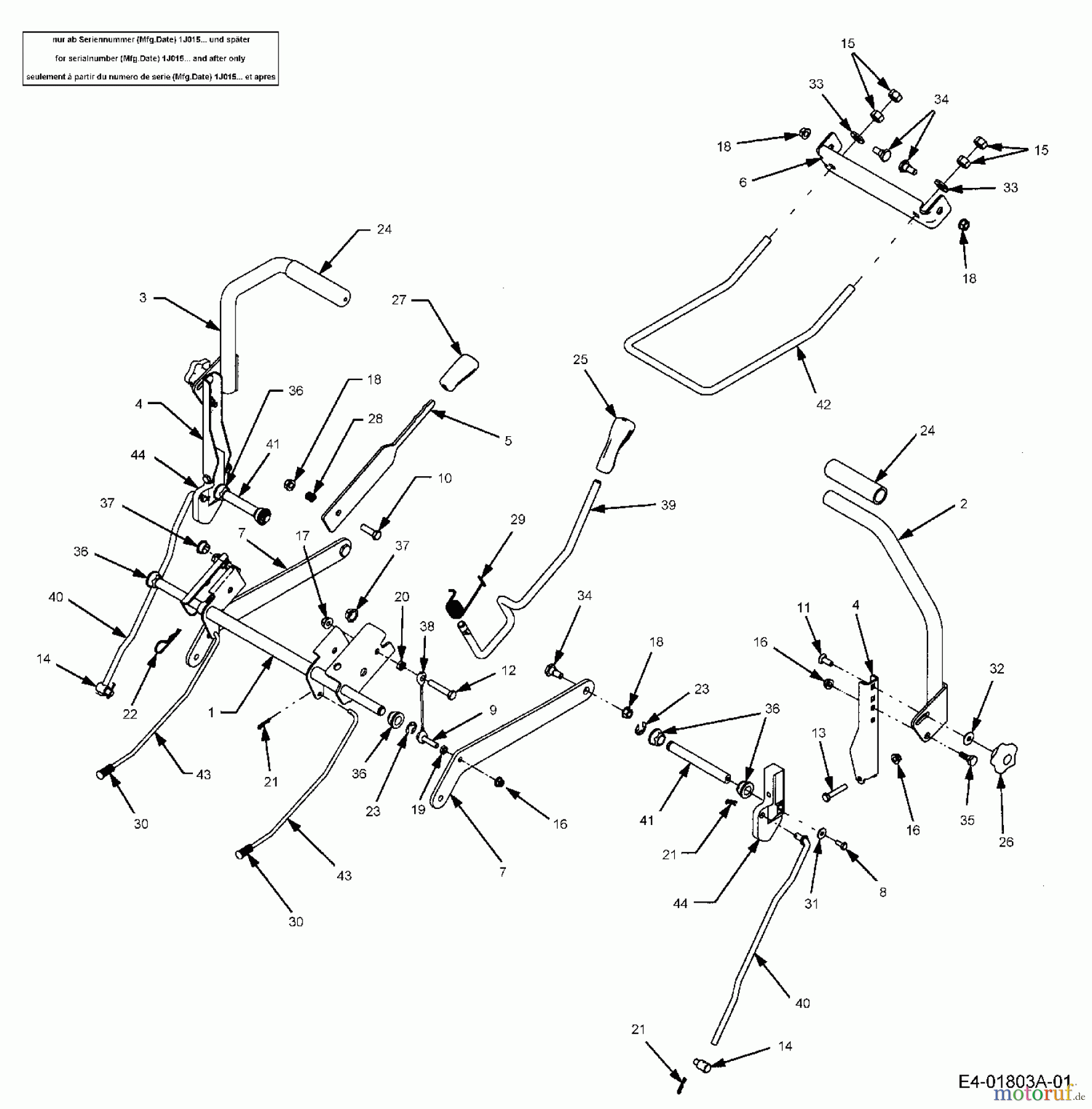

Cub Cadet Zero Turn RZT 42 17BA5B4G603 (2006) Deck lift
PosizioneArticolo numeroDescrizione
1 603-04160ASHAFT ASM-DECK LIFT
2 603-04322HANDLE-RH LAPBAR
3 603-04324HANDLE-LH LAPBAR
4 703-05387ABRKT-STEERING PIVOT RZT
5 703-05396LEVER, PARK BRAKE ENGAGEMENT
6 703-05414AFRBRACKET DECK HANGER
7 703-05793ARM - DECK LIFT
8 710-0433HHCS:1/4-20:.625:GR5:LOCK
9 710-0805SCRE.HHCS:5/16-18:1.50:GR5:STD
10 Cub Cadet SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
11 710-3105BOLT:CRG:5/16-18:.875:GR1
12 Cub Cadet HHCS:3/8-16:2.00:GR5:STD710-3144HHCS:3/8-16:2.00:GR5:STD
13 Cub Cadet HHCS:5/16-18:1.75:GR5:STD710-3180HHCS:5/16-18:1.75:GR5:STD
14 711-0832FERRULE:3/8-24x.375 DIA:HT TRT
15 Cub Cadet NUT:HEX:1/2-13:GR5712-0206NUT:HEX:1/2-13:GR5
16 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
17 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
18 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
19 Cub Cadet HEX NUT:JAM:5/16-18:GR 5712-3007HEX NUT:JAM:5/16-18:GR 5
20 712-3008NUT:JAM:3/8-16:GR5
21 Cub Cadet PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
22 714-3020PIN-COTTER
23 Cub Cadet RING:E-TYPE:.625 DIA SHAFT716-0106ARING:E-TYPE:.625 DIA SHAFT
24 720-0274GRIP:1.0 ID x 5.0 LG
25 Cub Cadet GRIP-HANDLE:1/2720-0311GRIP-HANDLE:1/2
26 720-04072KNOB:STAR:5/16-18
27 731-04735Handle
28 732-0334COMPRESSION SPRING
29 732-0874SPRING-EXTENSION
30 732-04350
31 Cub Cadet WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
32 Cub Cadet WASH:BELL:.325 x .930 x .045736-0425WASH:BELL:.325 x .930 x .045
33 736-3019WASHER:FLAT:.531x1.062x.134:HD
34 738-0143SCR:SHLDR:.496x.336:3/8-16
35 Cub Cadet SCR:SHLDR:.437 x .268:5/16-18738-0296SCR:SHLDR:.437 x .268:5/16-18
36 Cub Cadet BRG:HEX FLNG741-0225BRG:HEX FLNG
37 741-3074BRG:FLG:.626x.938x.344
38 Cub Cadet BRAKE CABLE746-0970BRAKE CABLE
39 747-04224LIFT LEVER
40 747-04225AROD-LIFT INDEX
41 747-04226ROD
42 747-04401ROD, DECK FRONT HANGAR
43 747-04491ROD BRAKE ASSY.
44 748-04052FITTING,CONNECTOR
