Cub Cadet Z 48 53BA1C6M603 (1998) Deflector, Deck housing, Wheels Ricambi

Name: ROLLER, FRONT AND REAR
Price: 42.85 EUR

ROLLER, FRONT AND REAR

Articolo numero:

731-3005

Posizione:

DINNORM:

731-3005

Modell Year:

Z 48 / 1998 48-Z / 1998 48-Z / 1998

42.85 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

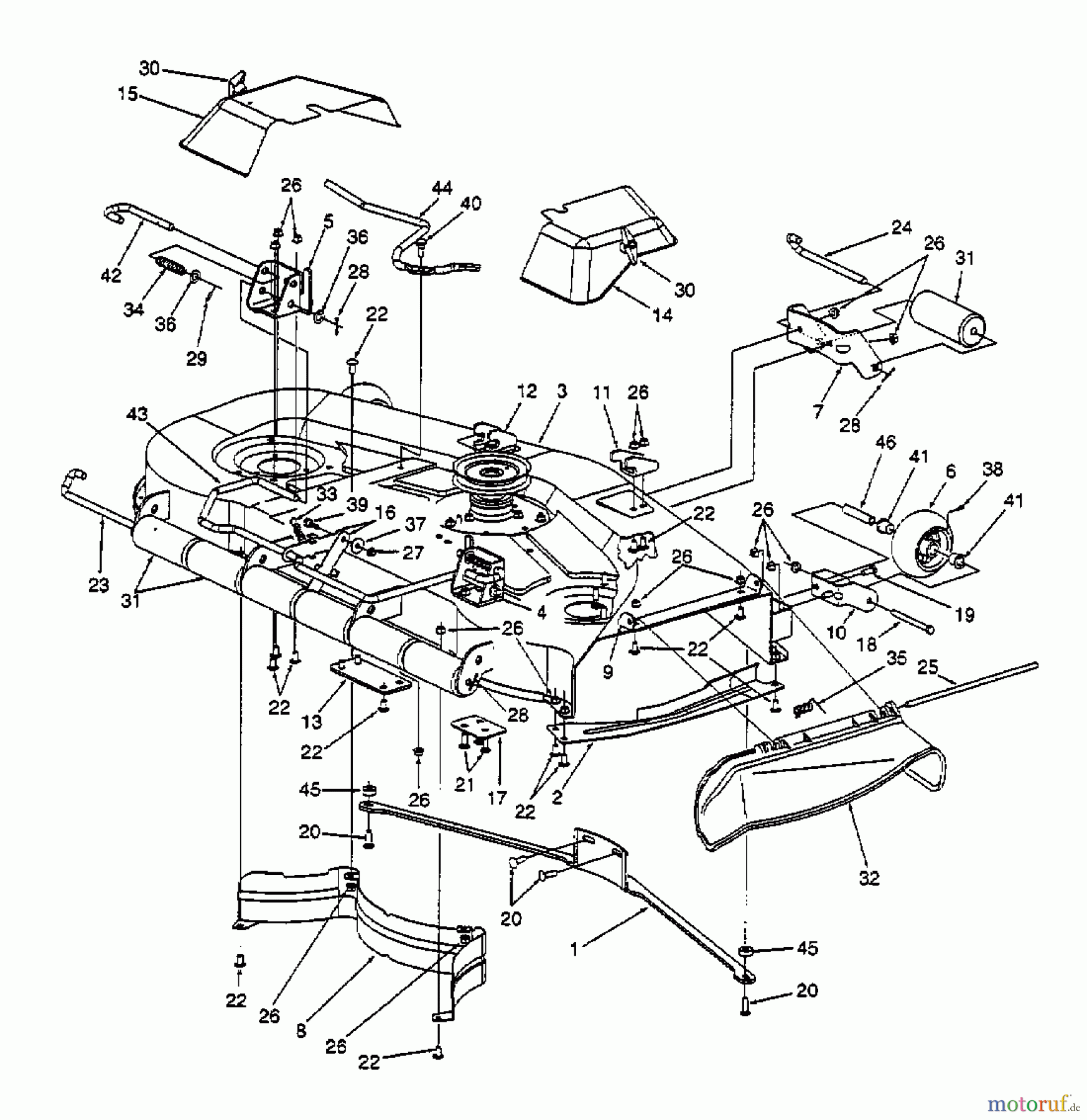

Posizione	Articolo numero	Descrizione
1	603-0144	FRONT BAR 54"
2	603-0149	GUARD-FLYWHEEL
3	777-1426	LABLE-CHP:SHRD:VAC
3	777S30018	ASSEMBLE CHUTE BEFORE USING LB
4	603-0350	BRACKET,REAR HANGER RIGHT
5	603-0351	BRACKET,REAR HANGER LEFT
6	634-3159	WHEEL ASSY´S 5"
7	703-2091A	BRACKET
8	703-2093	BAFFLE REAR INNER
9	703-2392	BRACKET,CHUTE MOUNTING
10	703-2410	BRACKET-WHEEL
11	703-2430	BRAXKET,DECK RIGHT
12	703-2767	BRACKET,DECK LEFT
13	703-2791	PLATE,SUPPORT IDLER
14	703-2816	CVR:BELT:DECK 46" RH
16	703-2929	LINK,DECK SUPPORT
17	703-2988	BRACKET-TRANS TORQUE
18	710-0944	SCREW HEX CAP
19	710-3001	SCREW HHCS:3/8-16:.880:GR5:STD
20	710-3034	BOLT:CRG:3/8-16:1.25:GR1
21	710-3168	BOLT:CRG:3/8-16:1.00:GR5
22	710-3178	BOLT:CRG:3/8-16:0.75:SHRT NK
23	711-1103	CLEVIS PIN
24	711-3314	PIN, ROLLER
25	711-3318	HINGE PIN
26	712-0431	NUT:FLGLK:3/8-16:GRF:TOP LK
27	712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
28	714-0115	PIN:COT:SPLIT:1/8 X 1.0
29	715-3003	PIN, SPIROL SPRING
30	720-0241	WING NUT
31	731-3005	ROLLER, FRONT AND REAR
32	731-3131	SHIELD ASSEMBLY
33	732-0395	SPRING-EXTENSION
34	732-0802	Spring
35	732-3070	SPRING-TORSION
36	736-0160	WASH:FLAT:.530x.930x.050
37	736-0231	WASHER:FLAT:.344x1.125x.120
38	737-0280	FITTING-GREASE
39	738-0296	SCR:SHLDR:.437 x .268:5/16-18
40	738-0380	SCR:SHLDR:.500x.270:3/8-16
41	741-0487A	FLANGE BEARING
42	747-3013	PIN
43	747-3306	ASS`Y, LIFT HANDLE (WLDM)
44	747-3305
45	750-3119	SPACER
46	750-3193	SLEEVE
