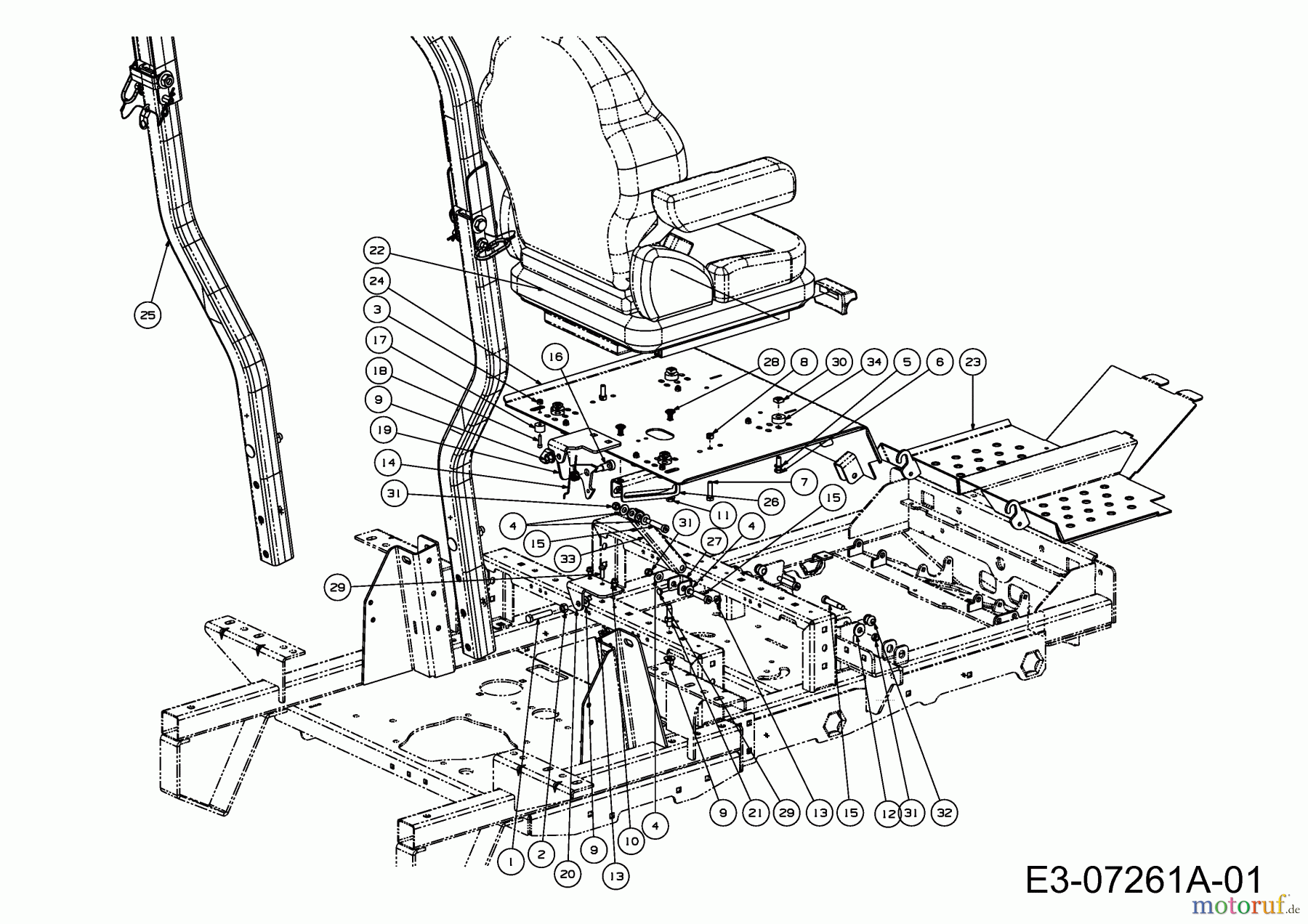

Cub Cadet Tank S 53AY8DU6603 (2010) Seat bracket, Seat, Roll bar from 23.03.2010 Ricambi

HEX SCREW 5/16-18 X 1.00

Nota: Questo articolo è4 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

00012180

Posizione:

DINNORM:

00012180

Modell Year:

Tank S / 2010 Tank S / 2011

non più disponibile

Posizione	Articolo numero	Descrizione
1	00002528	SCREW,HEX CAP
2	712-3017	NUT:JAM:3/8-16:GR5
3	712-0161	NUT:HEXLK:#10-24:GR2:NYLON
4	00012158	WASHER .406X.813X.063
5	00012168	LOCK WASHER
6	00012180	HEX SCREW 5/16-18 X 1.00
7	00013116	NUT-HEX 5/16-18X1-1/4
8	00022547	COUNTER NUT 5/16-18
9	00022560	NUT-HEX FLANGED LOCK 3/8-16
10	710-0599	SCREW:TT:1/4-20:0.500:HXINDWSH
11	712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
12	736-3052	WASH:FLAT:.406 X 1.00 X .105
13	712-3027	NUT:FLGLK:1/4-20:GRF
14	01008140P	SPRING-HANDLE LH
15	01009459	SHOULDER BOLT 5/16-18X.37X1.50
16	02002091	SHOULDER BOLT 3/8-16X.50X.75
17	02002963	BUMP STOP WITH WASHER
18	02002964	FLAT HEAD SCREW 10-24 X .750
19	02003732	ROD-LOCKOUT
20	02003738	MOUNT LATCH BRACKET
21	02003745	CENTER ADJUST STUD
22	02004228	SUSPENSION SEAT COMPL.
23	680-00087	BODY-FRONT
24	680-00096	PLATE, SEAT SPRING
25	680-00150	ROPS ASM. 24" FOLDING WIDE
26	703-07490	SEAT SUPPORT LOCK BRACKET
27	703-07491	SEAT LINK PIVOT MOUNT BRACKET
28	710-0260A	BOLT:CRG: 5/16-18:.62 GR5
29	710-3015	HHCS:1/4-20:.75:GR5:STD
30	712-04190	NUT 5/16-18
31	712-0429	NUT:HEXLK:5/16-18:GR5:NYLON
32	735-04159	GROMMET .38X.75X.75
33	749-04613	LINK TUBE
34	750-3119	SPACER
