Wolf-Garten 106.220 H 13CAA1VR650 (2019) Mowing deck R Ricambi

BLADE:CCW:21.21IN:105CM

Articolo numero:

742-05254

Posizione:

Modell Year:

XT2 PR106IE / 2019 XT3 QR106E / 2018 Lawn King 23/42 / 2018 XT2 QR106 / 2018 XT1 OR106 / 2018 XT2 PR106IE / 2018 XT2 QR106 / 2018 XT1 QR106K / 2018 275-106 TWIN H / 2018 285-106 TWIN KH / 2018 GL 17.5/106 H / 2018 GL 22.0/106 H / 2018 23/42 K / 2018 TB

70.98 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

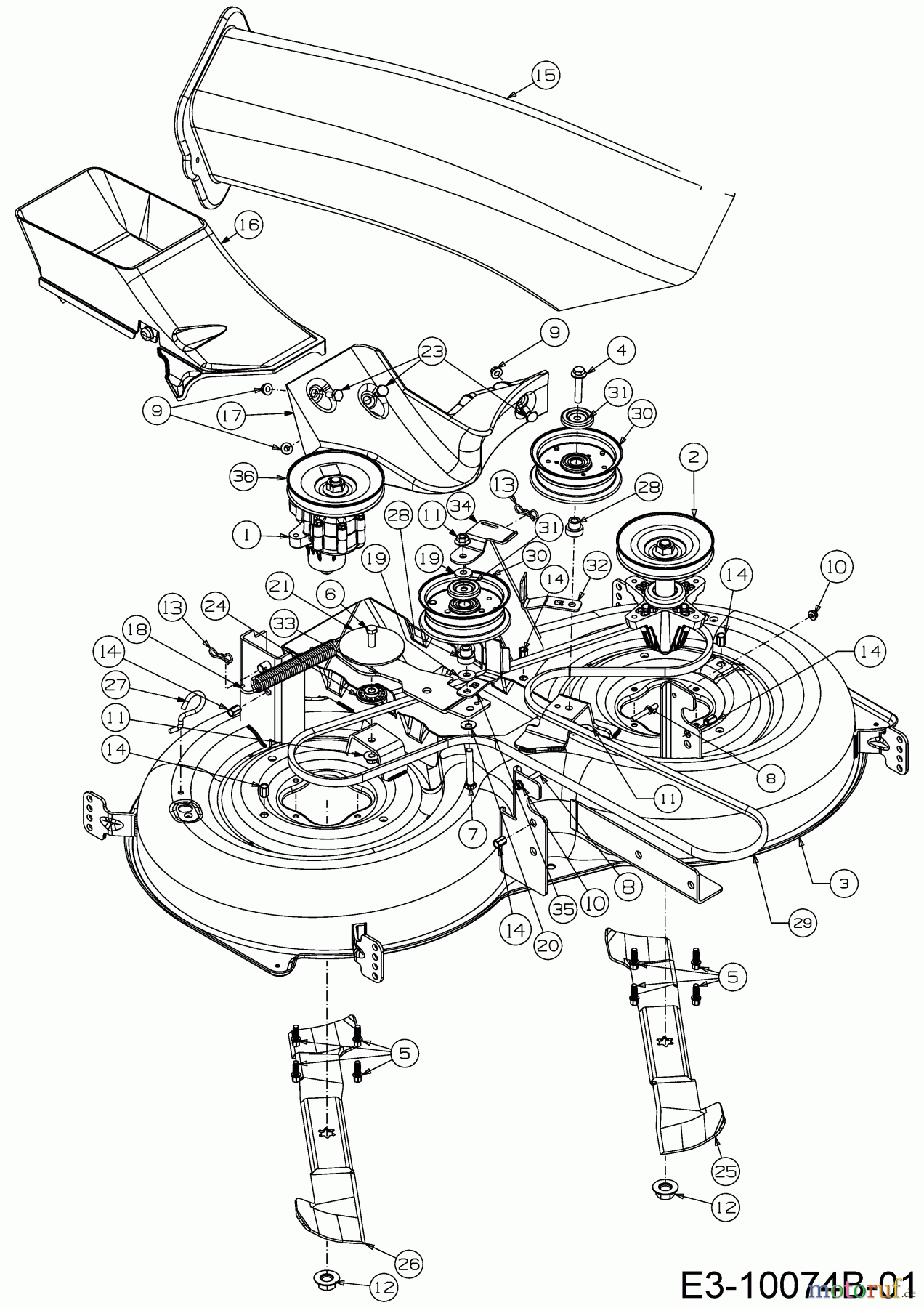

Wolf-Garten Lawn tractors 106.220 H 13CAA1VR650 (2019) Mowing deck R

Posizione	Articolo numero	Descrizione
1	618-07257AET	GRBX ASM:105cm-DECK
2	618-07277	SPDL ASM:PUL:5.40 DIA
3	683-05295637	DECK SHELL ASM 105CM NX15-RD
4	710-06178	HHCS:SEMS:3/8-16X2.00:HD WSH
5	710-06322	SCR:TT:5/16-18:0.88:HXINDWSH
6	710-3005	SCREW HHCS:3/8-16:1.25:GR5:STD
7	710-3011	HHCS:3/8-16:2.25:GR5:STD
8	711-0993	PIN:BELT GUARD:1/4 x 1.43
9	712-04063	NUT:HEXFLGLK:5/16-18:GRN5:NYL
10	712-04064	NUT:HEXFLGLK:1/4-20:GRN5:NYL
11	712-04217	NUT:HEXFLGLK:3/8-16:GRF:TOPLK
12	712-05134	NUT:HEXFLG:5/8-18:GR2
13	714-05005	PIN:BOW:7/16"-1/2"
14	728-05012	RIV:NUT:LOCK:5/16-18
15	731-12153	CHUTE EXTENSION
16	731-12210	CHUTE BASE
17	731-12313	TNG 105CM
18	732-04960	SPR:EXT:.94 OD X 7.57 LG:ZINC
19	736-0258	WASHER:FLAT:0.380X1.015X0.135
20	736-04481	WASH:BLVL:0.373x0.875x0.062
21	736-05125A	WASH:FLAT:0.380x3.750x0.120
23	738-04033	SCR:SHLDR:0.430X0.154:5/16-18
24	738-05099	SPCR:SHLDR:DBL:0.380X0.855X1.0
25	742-05253	BLADE:CW:21.21IN:105CM
26	742-05254	BLADE:CCW:21.21IN:105CM
27	747-06373	HOOK:ROD:SPRING:1.30"
28	748-05029A	SPCR:SHLDR:0.383X0.667X0.446
29	754-05154	BELT:V TYP:A SEC X 98.06 LG
30	756-05034A	PUL:IDLR:4.50" DIA
31	783-08389	CAP:PULLEY:HD
32	783-08690637	KEEPER BELT
33	783-09179-Z	BRKT:IDLR:PIV
34	783-09341-Z	KEEPER IDLER
35	783-09362	BRKT:MT:BELT:KEPR:K46
36	756-05245	PUL:DECK:5.570 OD:.500 OFFSET
