Wolf-Garten E 13/92 T 13AB765E650 (2019) Drive system, Variator Ricambi

WASH:FLAT:0.339 x0.703 x0.065

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

736-0275

Posizione:

Modell Year:

Smart RN 145 / 2020 E 13/92 T / 2019 E 13/92 T / 2020 TXT 36 DK / 2020 140-92 T / 2020 MASTERCUT RT 92 / 2020 LT 92 EXT / 2020

3.27 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

In magazzino. Tempi di consegna circa 6 giorni lavorativi.

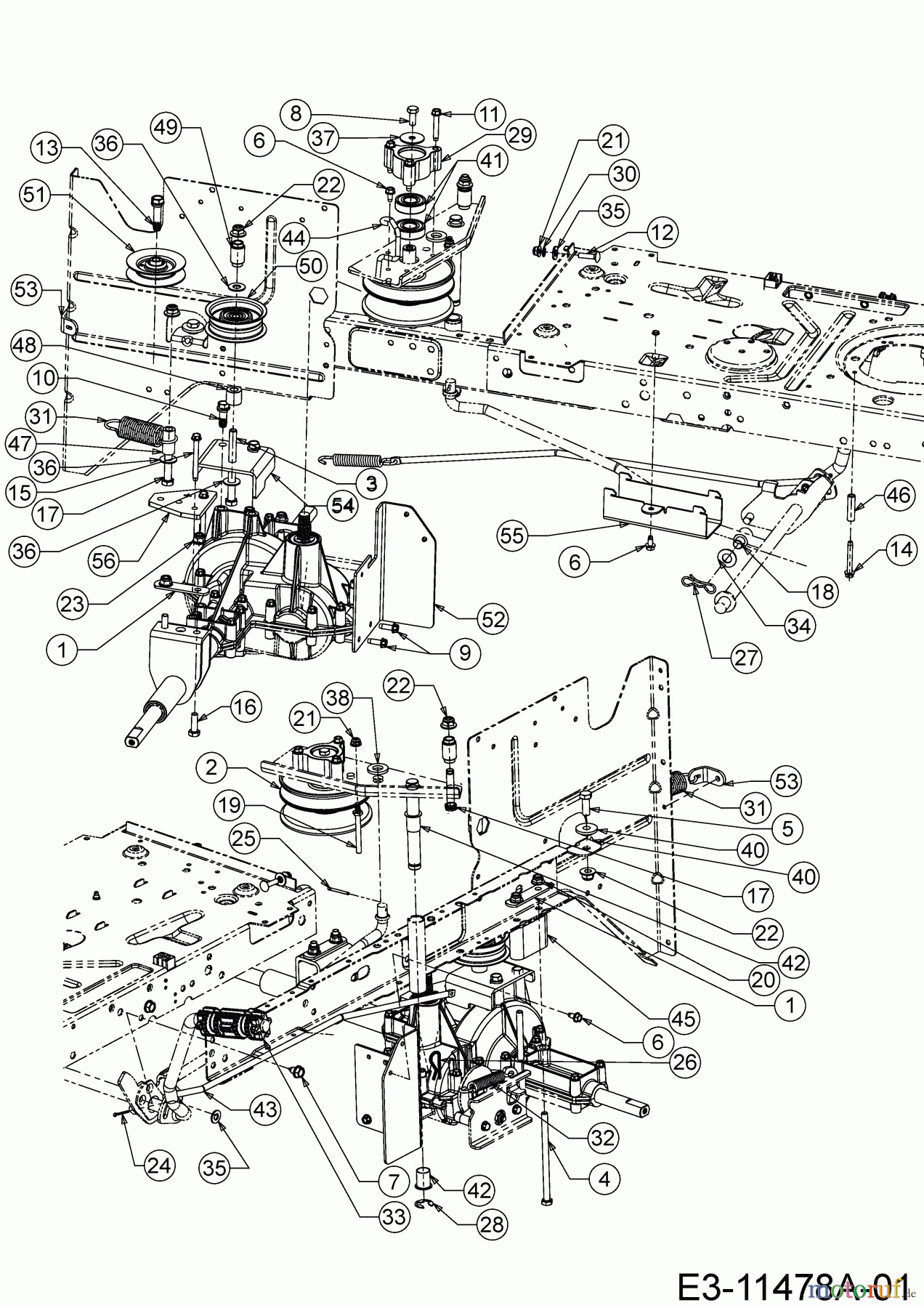

Wolf-Garten Lawn tractors E 13/92 T 13AB765E650 (2019) Drive system, Variator

Posizione	Articolo numero	Descrizione
1	17840	TRANSAXLE BRACKET REINFORCE
2	656-05011	PUL ASM:VAR SPD:4.75 OD
3	710-0411	SCREW HHCS:3/8-16:4.00:GR5:STD
4	710-04469	HHCS:5/16-18:5.00:GR5:STD
5	710-0514	HHCS:3/8-16:1.00:GR5:STD
6	710-0599	SCREW:TT:1/4-20:0.500:HXINDWSH
7	710-0604A	SCR:TT:5/16-18:0.63:HXINDWSH
8	710-0627	HHCS:5/16-24:0.75:GR5:LOCK
9	710-0642	SCR:TT:1/4-20:0.75:HXINDWSH
10	710-0654A	SCR:TT:SEMS:3/8-16:1.00:HXLWSH
11	710-0778	SCR:TT:1/4-20:1.50:HXINDWSH
12	710-0932A	BOLT:CRG:1/4-20:1.00:GR5:STD
13	710-1007	SCR:TT:SEMS:3/8-16:1.63:HXLWSH
14	710-1026	SCREW:TT:1/4-20:1.750:HXINDWSH
15	710-1206	SCR:TT:1/4-20:2.38:HXINDWSH
16	710-1682	SCR:M8-1:25.00 LG:DIN 933
17	710-3144	HHCS:3/8-16:2.00:GR5:STD
18	711-04036	FRL:ADJ:1/2-20 x 0.500 X 0.212
19	711-04826	ROD:KEEPER:.25 DIA X 2.35 LG
20	712-04063	NUT:HEXFLGLK:5/16-18:GRN5:NYL
21	712-04064	NUT:HEXFLGLK:1/4-20:GRN5:NYL
22	712-04065	NUT:HEXFLGLK:3/8-16:GRN5:NYLON
23	712-0714	NUT:HEXFLGLK:M8x1.25:CL8:NYL
24	714-0111	COTTER PIN 3/32 DIA X 1.00
25	714-0115	PIN:COT:SPLIT:1/8 X 1.0
26	714-0209	PIN:HAIR:0.125:1.56
27	714-05005	PIN:BOW:7/16"-1/2"
28	716-0106A	RING:RET:EXT:0.62:E-62
29	718-04261	CUP:BRG
30	726-0233	NUT:PUSH:1/4-20
31	732-04505	SPR:EXTN:1.00 DIA x 3.925 LG
32	732-0716D	SPR:EXTN:.59 OD x 4.00 LG
33	735-05051	PAD:PED:BRAKE
34	736-0272	WASH:FLAT:0.505X1.015X0.060
35	736-0275	WASH:FLAT:0.339 x0.703 x0.065
36	736-0300	WASH:FLAT:0.396X0.885X0.060
37	736-0362	WASH:FLAT:0.320x1.260x0.060:HD
38	736-3019	WASH:FLAT:0.526X1.082X0.134:HD
40	738-0347	SPCR:SHLDR:0.381X0.625X0.169
41	741-0124A	BRG:BALL:17x40x12:6203
42	741-0591	BRG:FLG:.630ID X .693OD X .875
43	747-04815C	ROD:BRAKE:RR DIS LT-5
44	747-04897D-S	ROD:KEEPER:FWD:RR DIS LT5
45	748-04175	SPCR:T-AXLE 1.82
46	750-04456	SPACER:0.255 x 0.376 x 1.420
47	750-04584	SPCR:0.375 x 0.625 x 1.340
48	750-04988	SPCR:D20MM x 5MM x 18mm LG
49	750-05521A	SPCR:18mm OD x 9.8mm ID
50	756-04224	PUL:IDLR:FLAT 2.75 OD
51	756-04324	PUL:IDLR:V-TYPE:5L X 3.06 DIA
52	783-05705	BRACKET-TRANSAXLE SUPPORT
53	783-05844	BRKT:MT:SPR:RR DIS LT5
54	783-05855	BRKT:SUPT:TRANS:FIXED IDLER
55	783-05882	BRKT:KEEPR:FWD:RR DIS LT-5
56	783-1363	BRKT:MT:HITCH
