Wolf-Garten Expert 107.180 H 13AG93WG650 (2014) Steering Ricambi

SHF:STRG:.625 OD x 24.25.LG

Articolo numero:

738-04263

Posizione:

Modell Year:

MF 38-16 ASD / 2014 V 160 / 2014 MF 42-18 ASD / 2014 MF 42-22 SD / 2014 Expert 107.175 A / 2014 Expert 107.180 H / 2014 Expert 107.180 H / 2014 Expert 96.160 H / 2014 Expert 96.160 H / 2014

63.84 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

In magazzino. Tempi di consegna circa 6 giorni lavorativi.

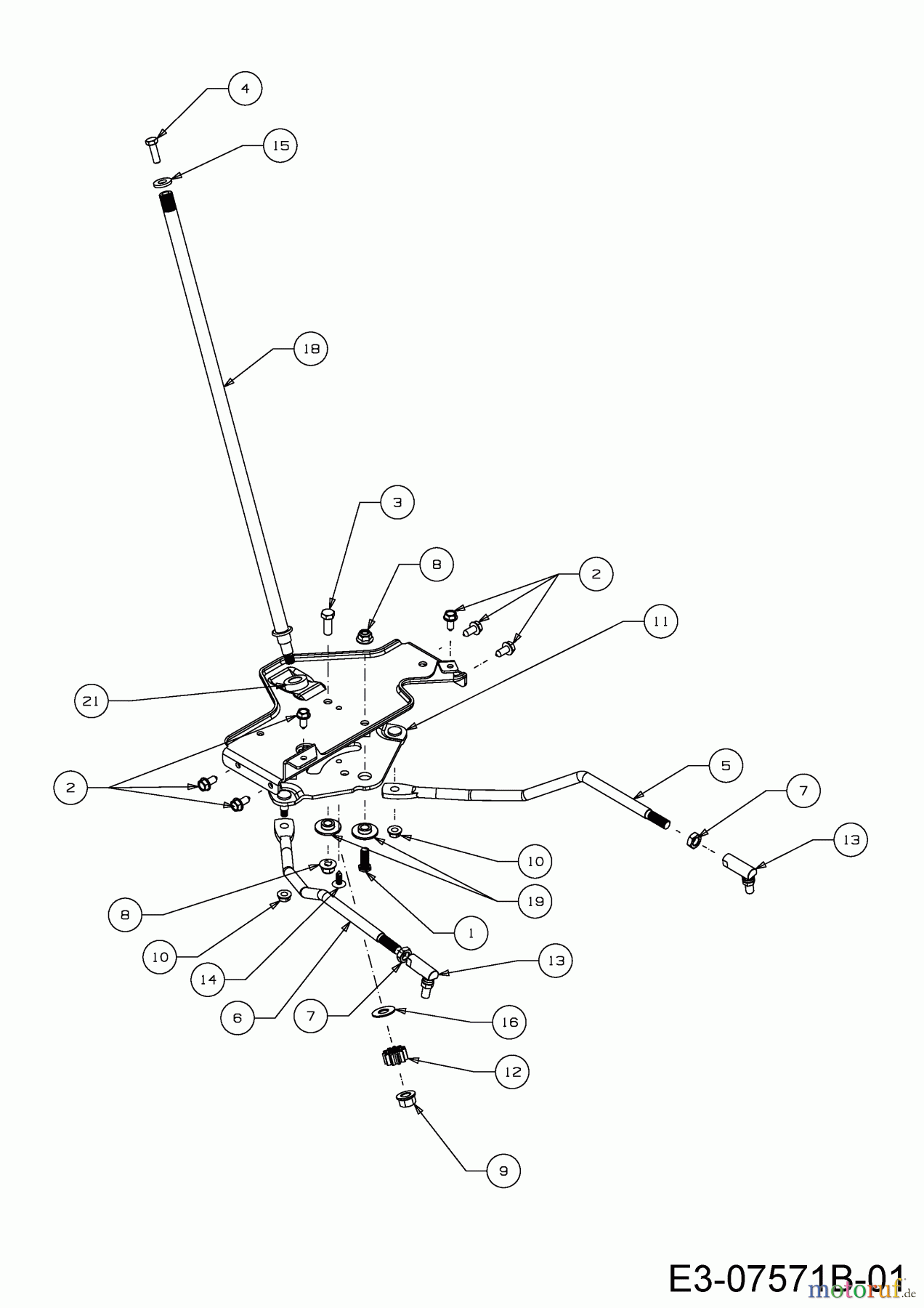

Wolf-Garten Lawn tractors Expert 107.180 H 13AG93WG650 (2014) Steering

Posizione	Articolo numero	Descrizione
1	710-04095	HHCS:3/8-16.1.00:GR5:SPEC
2	710-04484	SCR:TT:5/16-9:0.75:HXINDWSH
3	710-0514	HHCS:3/8-16:1.00:GR5:STD
4	710-0643	HHCS:5/16-18:1.00:GR5:LOCK
5	711-04998	LINK-STRG DRAG LH
6	711-04999	LINK-STRG DRAG RH
7	712-0240	NUT:HEXJAM:7/16-20:GR2
8	712-04065	NUT:HEXFLGLK:3/8-16:GRN5:NYLON
9	712-0459	NUT:HEXFLGLK:7/16-20:GRF:CTRLK
10	712-3004A	NUT:HEXFLGLK:5/16-18:GRF:CTRLK
11	717-1550F	GEAR:STRG:11/90 RATIO
12	717-1554	GEAR:PINION:STRG
13	723-0448A	B/JNT:7/16-20:LOCK
14	726-3046	MOUNTING CLIP:.250 DIA
15	736-3004	WASH:FLAT:0.396x0.885x0.120
16	736-3084	WASH:THRST:.510 X 1.120 X .060
18	738-04263	SHF:STRG:.625 OD x 24.25.LG
19	738-04363	SPCR:SHLDR:.385x1.25x.3025
20	741-04237B	BRG:FLG:HEX 5/8 PM
21	783-06043	BRKT:SUPPORT:STRG
