Spareparts

BRKT:MT:DR:IDLER

Articolo numero:
783-06725
Posizione:
85
Modell Year:
CC 1016 AE / 2015 CC 1018 AN / 2015 LTEX 92 A / 2015 LTEX 105 A / 2015 MF 36-16 ARD / 2015 MF 41-18 ARD / 2015 MF 36-16 ARD / 2015 Expert 105.165 A / 2015 Expert 92.165 A / 2015
15.65 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
In magazzino. Tempi di consegna circa 6 giorni lavorativi. In magazzino. Tempi di consegna circa 6 giorni lavorativi.

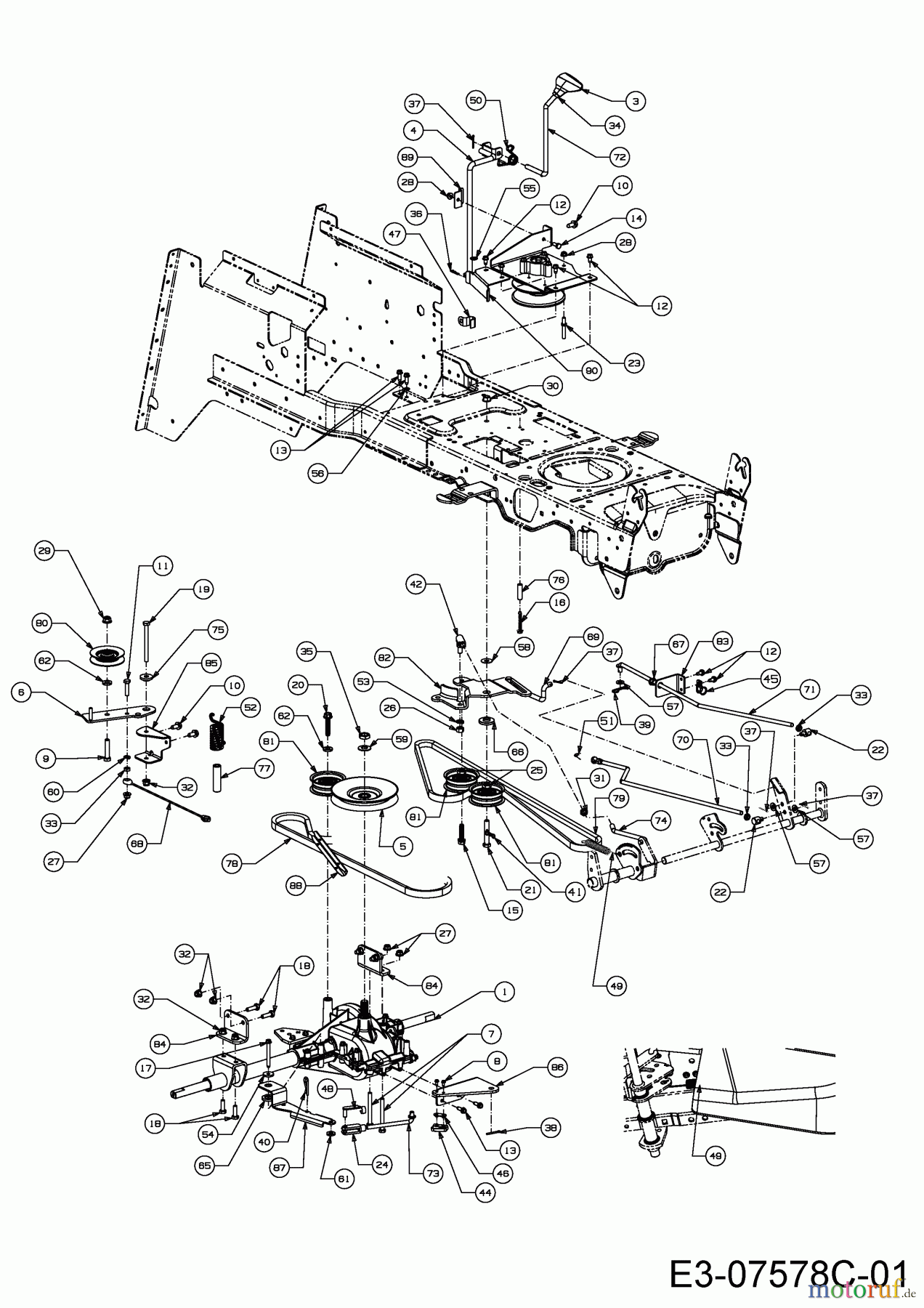

Wolf-Garten Lawn tractors Expert 92.165 A 13HN90WE650 (2015) Drive system
PosizioneArticolo numeroDescrizione
1 618-04331ATRANSMISSION SINGLE SPEED
3 631-0009AKNOB:SHIFTER:3/8-16 THRD
4 647-04251
5 656-0002V PULLEY 6.0 x 5/8-36 HUB
6 683-04724
7 710-0189HHCS:5/16-18:3.00:GR5:STD
8 Wolf-Garten SCR:AB:#8-18:0.50:HXINDWH710-0227SCR:AB:#8-18:0.50:HXINDWH
9 Wolf-Garten HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
10 Wolf-Garten SCR:TT:5/16-9:0.75:HXINDWSH710-04484SCR:TT:5/16-9:0.75:HXINDWSH
11 Wolf-Garten HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
12 Wolf-Garten SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
13 Wolf-Garten SCR:TT:1/4-20:0.75:HXINDWSH710-0642SCR:TT:1/4-20:0.75:HXINDWSH
14 710-0751HHCS:1/4-20:0.62:GR5:STD
15 Wolf-Garten SCR:TT:SEMS:3/8-16:1.63:HXLWSH710-1007SCR:TT:SEMS:3/8-16:1.63:HXLWSH
16 Wolf-Garten SCREW:TT:1/4-20:1.750:HXINDWSH710-1026SCREW:TT:1/4-20:1.750:HXINDWSH
17 Wolf-Garten SCR:TT:1/4-20:2.38:HXINDWSH710-1206SCR:TT:1/4-20:2.38:HXINDWSH
18 710-1682SCR:M8-1:25.00 LG:DIN 933
19 710-1686SCR:M8-1.25:90.00 LG:DIN 931
20 Wolf-Garten SCR:TT:3/8-16:1.75:HXINDWSH710-1858ASCR:TT:3/8-16:1.75:HXINDWSH
21 710-3011HHCS:3/8-16:2.25:GR5:STD
23 711-0993PIN:BELT GUARD:1/4 x 1.43
24 711-1407FRL:M8-32 x 18 DIA DIN 71752
25 Wolf-Garten NUT:HEXJAM:7/16-20:GR2712-0240NUT:HEXJAM:7/16-20:GR2
26 Wolf-Garten NUT:HEX:3/8-24:GR5712-0241NUT:HEX:3/8-24:GR5
27 Wolf-Garten NUT:HEXFLGLK:5/16-18:GRN5:NYL712-04063NUT:HEXFLGLK:5/16-18:GRN5:NYL
28 Wolf-Garten NUT:HEXFLGLK:1/4-20:GRN5:NYL712-04064NUT:HEXFLGLK:1/4-20:GRN5:NYL
29 Wolf-Garten NUT:HEXFLGLK:3/8-16:GRN5:NYLON712-04065NUT:HEXFLGLK:3/8-16:GRN5:NYLON
30 Wolf-Garten NUT:FLGLK:3/8-16:GRF:TOPLK712-0431NUT:FLGLK:3/8-16:GRF:TOPLK
31 Wolf-Garten NUT:JAM:3/8-24:GR5712-0711NUT:JAM:3/8-24:GR5
32 712-0714NUT:HEXFLGLK:M8x1.25:CL8:NYL
33 Wolf-Garten NUT:JAM:5/16-18:GR5712-3007NUT:JAM:5/16-18:GR5
34 712-3008NUT:HEXJAM:3/8-16:GR5
35 712-3035NUT:JAM:9/16-18:GR5
36 Wolf-Garten PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
37 Wolf-Garten COTTER PIN 3/32 DIA X 1.00714-0111COTTER PIN 3/32 DIA X 1.00
38 Wolf-Garten PIN:COT:SPLIT:1/8 X 1.0714-0115PIN:COT:SPLIT:1/8 X 1.0
39 Wolf-Garten PIN:HAIR:0.094:1.64714-0145PIN:HAIR:0.094:1.64
40 714-0209PIN:HAIR:0.125:1.56
41 Wolf-Garten PIN:COT:BOW-TIE:1/4" - 3/8"714-04040PIN:COT:BOW-TIE:1/4" - 3/8"
42 Wolf-Garten BALL:JOINT:3/8 24 UNF 2B723-3018BALL:JOINT:3/8 24 UNF 2B
44 Wolf-Garten SWITCH:SPRING:SHORT725-1644SWITCH:SPRING:SHORT
45 726-0272CLAMP 9/16 DIA (FUEL HOSE)
47 726-0354CLAMP 16mm
48 726-0457S-BOLT: M8-32 DIN 71752
49 732-04587SPR:EXTN:.63 DIA x 4.95 LG
50 732-04878SPR:SHIFTER
51 Wolf-Garten SPR:EXTN:.59 OD x 4.00 LG732-0716DSPR:EXTN:.59 OD x 4.00 LG
52 Wolf-Garten SPR:TORSN:RH:20mm ID x 71mm LG732-1030ASPR:TORSN:RH:20mm ID x 71mm LG
53 Wolf-Garten WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
54 Wolf-Garten WASH:FLAT:0.260 x0.948 x0.120736-0176WASH:FLAT:0.260 x0.948 x0.120
55 736-0204WASH:FLAT:0.339 X 0.640 X0.033
56 736-0222WASH:LOCK:1/4:EXT
57 736-0275WASH:FLAT:0.339 x0.703 x0.065
58 736-0344WASH:FLAT:0.375x1.010x0.030:HD
59 736-0427BELL:WASH:.567 x 1.125 x .06
60 736-0649WASHER:LOCK:B8:DIN 12
61 736-3008WASH:FLAT:0.334 X0.760 X 0.120
62 Wolf-Garten WASH:FL:0.402X0.822X0.135:HD736-3010WASH:FL:0.402X0.822X0.135:HD
65 738-04029SPCR:SHLDR:5/8 OD X 1/4 ID
66 738-04420SPCR:SHLDR:1.375x .380x .183
67 Wolf-Garten BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
68 Wolf-Garten CBL:IDLR:DR746-04632CBL:IDLR:DR
69 747-04957AROD:TRANS:FOOTPEDAL BYPASS
70 747-05134ROD BRAKE PUSH
71 747-05135ROD:CONT:DR
72 747-05525ROD:SHIFT:TRANS
73 747-05526ROD:LINK:SHIFT
74 747-05604ROD:ADJ:IDLR
75 Wolf-Garten SPCR:SHLDR:.625 DIA x.324 DIA748-0331SPCR:SHLDR:.625 DIA x.324 DIA
76 Wolf-Garten SPACER:0.255 x 0.376 x 1.420750-04456SPACER:0.255 x 0.376 x 1.420
77 750-1311SPCR:17MM X 9MM X 62MM LG
78 Wolf-Garten BELT:V TYPE:5L X 53.5 LG POLY754-0495BELT:V TYPE:5L X 53.5 LG POLY
79 Wolf-Garten BELT:V TYPE:5L X 68.1 LG POLY754-0626BELT:V TYPE:5L X 68.1 LG POLY
80 Wolf-Garten PUL:IDLER:V TYPE 3.06 OD756-0236PUL:IDLER:V TYPE 3.06 OD
81 Wolf-Garten PUL:IDLR:FLAT 2.75 OD756-04224PUL:IDLR:FLAT 2.75 OD
82 783-06027BBRKT:IDLR:CENTER DBL
83 783-06440BRKT:CONT:ROD
84 783-06723BRKT:MT:TRANS
85 783-06725BRKT:MT:DR:IDLER
86 783-06950BRKT:IDLER:500 TRANS
87 783-06951BRKT:SHFT
88 783-06953CLIP:CHUTE
89 783-06995
90 783-07203
