Spareparts

ENGINE B&S

Articolo numero:

752B2004B1

Posizione:

DINNORM:

10A902-2004-B1/752B2004B1

Description:

10A902-2004-B1

Modell Year:

HB 46 B / 2005 46 H / 2005 P 46 B / 2005 46 PB / 2005 46 PB / 2005 46 PB-4 / 2005 46 PB-4 S / 2005 GE 46 H / 2005

non più disponibile

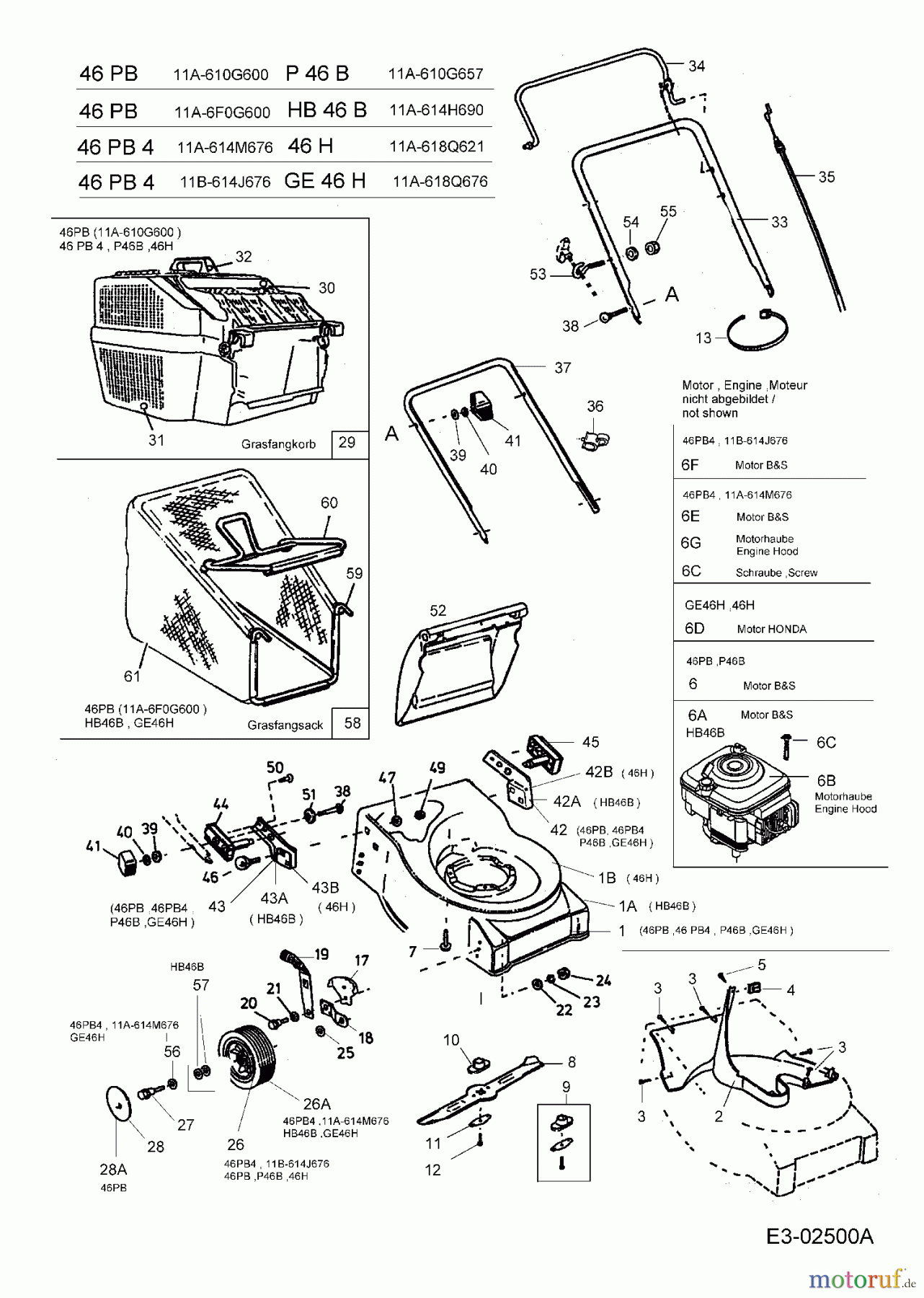

Hanseatic Petrol mower 46 H 11A-618Q621 (2005) Basic machine

Posizione	Articolo numero	Descrizione
1	682-0254638	MOWER HOUSING 18" MTD RED
1A	682-0254650	DECK 18" METALLIC RED
1B	682-0254674	MOWER HOUSING YM YELLOW
2	731-1633C	LOWER COVER
3	710-1704	SCR:TORX:M6x20 WN 1452
4	712-0400	U-NUT: # 10-16
5	710-0351	SCR:B:#10-16:0.5":PANPHI
6	752B2018B1	ENGINE B&S
6A	752B0248B1	B&S ENGINE
6B	731-1620A	SHROUD GRAY
6C	710-1184	SCR:MACH:#10-32:2.000:PANPHI
6D	752H638591	ENGINE HONDA
6E	752B2004B1	ENGINE B&S
6F	752B0251B1	ENGINE B&S SPRINT
6G	731-1587A	SHRD:ENG:QUATRO S2 MTD BLACK
7	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH
8	742-0738	BLADE:18"MULCHING W/STAR
9	811-00248	BLADE LOCK ADAPTER-KIT
10	748-0376C	BLADE LOCK ADAPTER
11	736-0524B	BLADE BELL SUPP. SPRING STEEL
12	710-1044	HEX.SCREW 3/8-24:1.50:GR8:SPEC
13	000.70.563	CABLE TIE
17	782-0659	HEIGHT ADJ.PLATE
18	782-0617A	ADJUSTING ARM
19	682-0271A	LVR ASM:SPR:HGT ADJ
20	738-1030A	SCR:SHLDR:M8 x 28.5mm LG
21	736-0651	WASH:BELL:25mmODx12.2IDx1.6
22	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021
23	736-0708	LOCK WASHER SCHNORR D 8
24	712-0690	NUT:HEX:M8-1.25 DIN 934
25	736-0695B	washer
26	734-1916	WHL:180 MM:BLK PP
26A	734-1917	33 x KL12.1 -BLACK- BAR PROFIL
27	738-1057	SCR:SHLDR:11.95x35.9:M8x1.25
28	731-05244	HUBCAP:7":OYSTERGRAY
28A	720-0381	HUBCAP RAM 180-94 PREMIUM GREY
29	811-00908	SG: GRASSBOX COMPL. BLACK
30	731-2178637	GRASSBOX - UPPER PART - BLACK
31	731-2179637	GRASSBOX - LOWER PART - BLACK
32	731-2180A637	HANDLE
33	749-04083	UPPER HANDLE
34	747-1161A	BRAKE BAIL
35	746-04076	BRAKE CABLE 42.60"
36	731-2422	CABLE GUIDE
37	749-04086	HNDL:LWR:EXPORT
38	710-1719	BOLT:CRG:M8x1.25x50 DIN 603
39	736-0700	WASH:FLAT:8.4 x 16 x 1.60
40	736-0689	WASH:LOCK:B 8.4:DIN 6798
41	720-0368	WING NUT
42	782-3085638	HANDLE BRKT.L.H.
42A	782-3085650	HANDLE BRKT. L.H. HB 46 RSLS
42B	782-3085674	HANDLE BRKT LH
43	782-3084638	HANDLE BRKT.R.H.
43A	782-3084650	HANDLE BRKT. R.H. HB 46 RSLS
43B	782-3084674	HANDLE BRKT. R.H.
44	731-2185A	BRKT:HNDL:RH
45	731-2186A	BRKT:HNDL
46	710-1780	BOLT:CRG:M8x1.25x16 DIN 603
47	736-0700	WASH:FLAT:8.4 x 16 x 1.60
49	712-0692	NUT:HEXLK:M8-1.25 NYLON DIN985
50	000.02.469	PT - Screw
51	748-04036	SCHWARZ RAL 9005 (079.06.307)
52	731-04744	600er E/WB/SP-MÄHER
53	782-7627A	BOLT:EYE:M6
54	736-0668	WASH: FLAT: 6.4x12x1.6
55	712-0691	NUT:HEXLK:M6-1:NYLON:DIN 985
56	736-0504	WASH:WAVE:.510x.750 x.017
57	736-0758	WASH:BELL:25mmODx12.2IDx1.6
58	812-00959	GRASS CATCHER CPL.
59	647-0079637	GRASS CATCH. FRAME
60	747-2029637	(GRASFANGSACKGESTELL)
61	764-0533	GRASS CATCHER TISSUE
