Spareparts

WASHER-RUBBER

Articolo numero:
735-0127
Posizione:
60
DINNORM:
735-0127
Modell Year:
T/450 / 2004 T/450 / 2001 T/450 / 2002 T/450 / 2002 T/450 / 2003 T/450 / 2005 T/450 / 2006 TBT 450 / 2006 TBT 450 / 2005
7.98 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

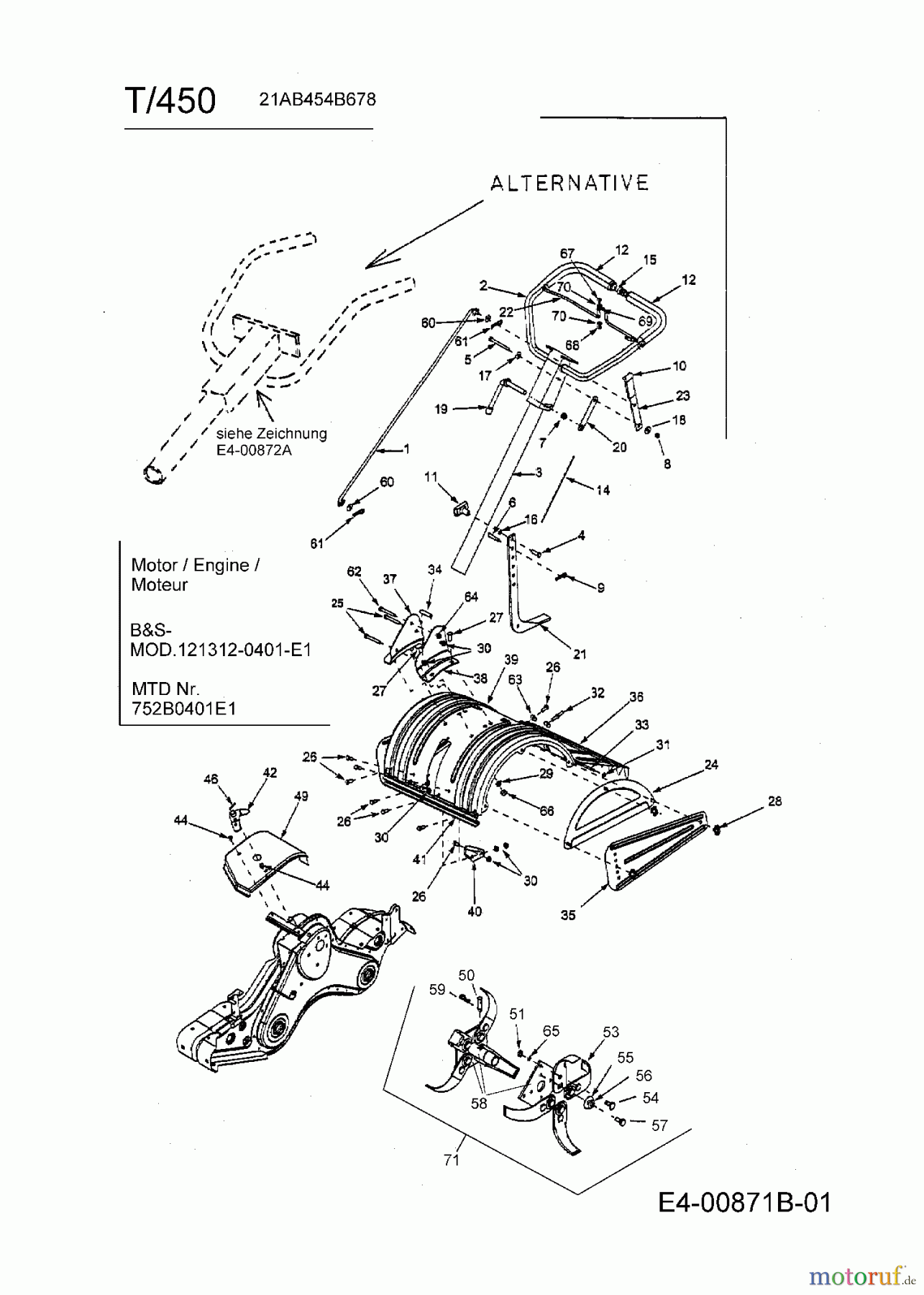

Troy-Bilt Tillers TBT 450 21AB454B609 (2005) Tines, Handle
PosizioneArticolo numeroDescrizione
1 747-1152ROD,HYDRO DISENGAGEMENT
2 649-0041UPPER HANDLE
3 649-0034SIDE TUBE PAINTED
4 Troy-Bilt SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
5 710-3056HHCS:5/16-18:3.25:GR5:STD
6 Troy-Bilt PIN:CLEVIS: .375 x 1.75711-0415PIN:CLEVIS: .375 x 1.75
7 712-0379USE 712-0375
8 Troy-Bilt NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
9 Troy-Bilt PIN:COT:.125 x 1.75 INTERNAL714-0147PIN:COT:.125 x 1.75 INTERNAL
10 720-0313GRIP
11 720-0210AGRIP
12 720-0278AGRIP-FOAM
14 726-0317TIE CABLE
15 735-0246KNOB
16 736-0117WASH:FLAT:.385 x.620 x.033
17 Troy-Bilt WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
18 738-0958SPCR:SHLDR:.50 x.190:.360 LG
19 784-0190HANDLE ADJUSTMENT CRANK
20 784-0191BRACKET-CABLE
21 786-0120BAR ASSY-DEPTH
22 747-1219ROD CLUTCH CONTROL
23 786-0181ROD-SHIFT
24 686-0044AEND COVER ASSY.
25 710-0176HHCS:5/16-18:2.75:GR5:STD
26 Troy-Bilt SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
27 710-3097BOLT:CRG:3/8-16:GR5:1.0
28 712-0421NUT:WING:5/16-18 W/BELL WASH
29 Troy-Bilt WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
30 Troy-Bilt NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
31 Troy-Bilt CAP SPEED NUT726-0106CAP SPEED NUT
32 738-0849SCR:HEX:5/16-18 x .75
33 747-0432ROD
34 750-0885SPACER
35 786-0090SHIELD-SIDE
36 786-0113SHIELD-TINE REAR
37 786-0176BRACKET-HANDLE RH
38 786-0177BRACKET-HANDLE LH
39 786-0178SHIELD-TINE
40 786-0179BRACKET-TINE SHIELD
41 786-0180PLATE-REINFORCEMENT
42 686-0109SHIFT CRANK ASSY.
44 Troy-Bilt TAP SCREW:1/4-14:.625:TRUSTRXI710-1017TAP SCREW:1/4-14:.625:TRUSTRXI
46 715-0120PIN-SPRING SPIR
49 784-0208CCOVER-HARD TOP
50 Troy-Bilt PIN:CLEVIS: .375 x 1.75711-0415PIN:CLEVIS: .375 x 1.75
51 712-3054NUT-HEX LOCK
53 742-0305BLADE-TINE
54 738-0689SCR:SHLD: 1/2 DIA x.180:3/8-24
55 736-0208WASHER-FL
56 736-0253WASH:BLVL:.525 x 1.000 x.050
57 738-0688SCR:SHLD 1/2 DIA x .325
58 784-0160TINE ADAPTER ASSY.
59 Troy-Bilt INTERNAL COTTER PIN714-0149BINTERNAL COTTER PIN
60 735-0127WASHER-RUBBER
61 Troy-Bilt PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
62 710-3022HHCS:3/8-16:2.75:GR5:STD
63 736-0204WASH:FLAT:.344 X .620 X .033
64 Troy-Bilt NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
65 Troy-Bilt WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
66 712-0798NUT:HEX:3/8-16:GR2
67 710-0946SCR:MACH:1/4-20:0.625:TRUSPHI
68 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
69 726-0273CLAMP-MTG
70 736-3090FL.WASHER:.260 X .720 X .060
71 784-0205TINE ASSY
