Troy-Bilt POLAR 8066 31AV6WLN609 (2008) Dashboard Ricambi

Name: WASH:FLAT:.385 x.87 x.06:HT
Price: 3.27 EUR

WASH:FLAT:.385 x.87 x.06:HT

Articolo numero:

736-0267

Posizione:

DINNORM:

701-01001 OPTIONAL SPEC-100015

Modell Year:

STH 10.71 W / 2008 STH 8.66 W / 2008 POLAR 10071 / 2008 POLAR 8066 / 2008

3.27 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

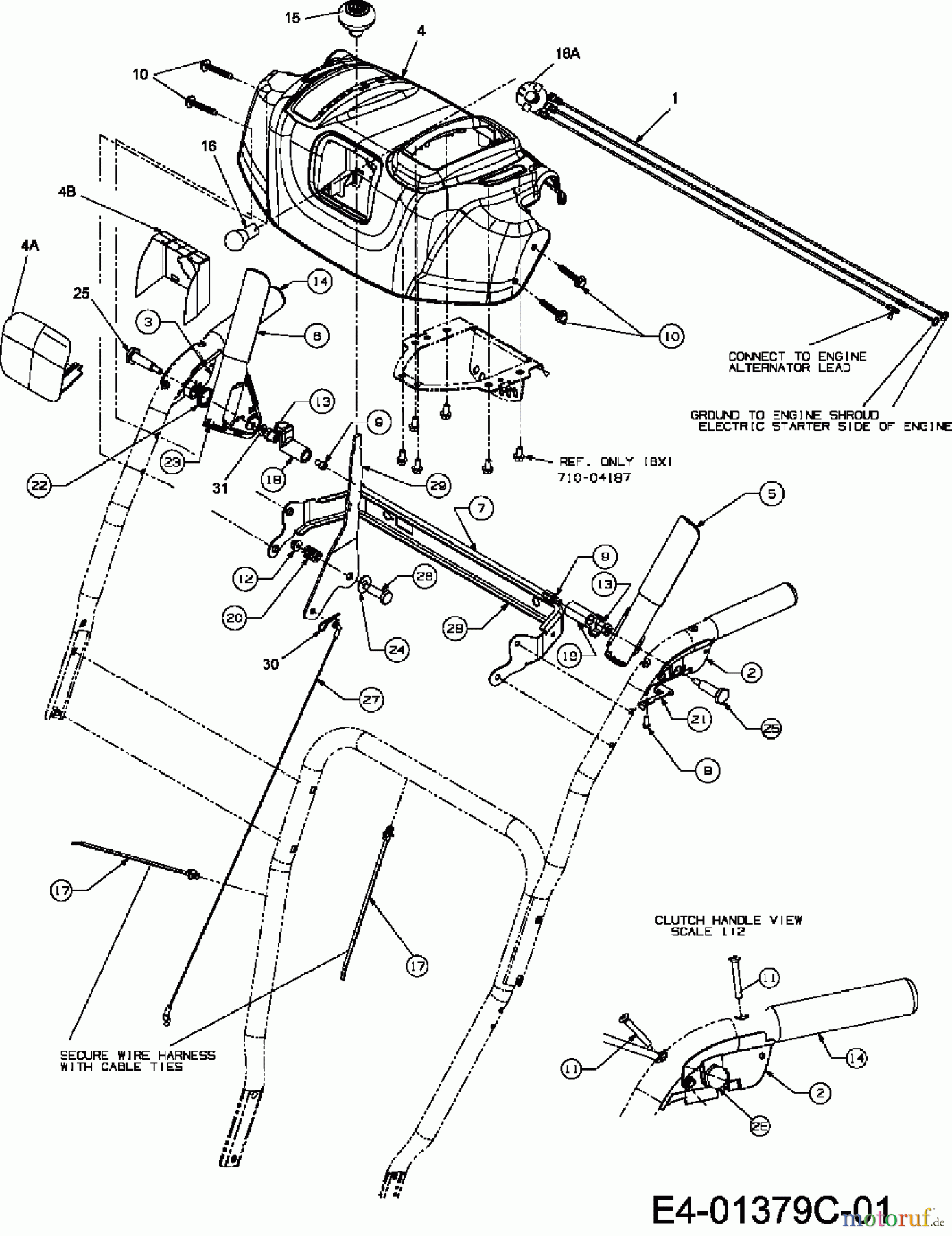

Posizione	Articolo numero	Descrizione
1	625-04039	HARN ASM:S/T:w/o HEAT GRIPS
2	631-04133A	CLUTCH LOCK L.H.
3	631-04134B	CLUTCH LOCK R.H.
4	731-05347	Instrument panel
4A	731-05320	LENS
4B	777X41803	LABEL
5	684-04105B	HNDL ASM: ENGAGEMENT LEFT HAND
6	684-04106B	HANDLE ASM: ENGAGE RIGHT HAND
7	684-04250	ROD ASSEMBLY
8	710-04326	SCR:PLASTITE:#8-16 x.50
9	710-04354	SHCS:1/4-20:.375
10	710-04586	SCREW:TT:1/4-20x1.625:HXINDWSH
11	710-1233	SCR:MACH:#10-24:1.375:OVALCSK
12	712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
13	712-04081A	NUT:HEX:1/4-20:SHLDR
14	720-0274	GRIP:1.0 ID x 5.0 LG
15	720-04039	KNOB, SHIFT
16	725-1629	BULB: # 1141
16A	725-1649	SOC:LAM: 1/4 TURN
17	726-0470	TIE:CABLE:.19x8.39":TREE MNT
18	731-04894C	PLT:LATCH
19	731-04896B	CAM: CLUTCH LOCK
20	732-0193	SPR:CMPRS:.39 x.60 x.88 LG
21	732-04219A	SPRING: CLUTCH LOCK
22	732-04238	SPRING:TORSION:0.8156IDx.3038
23	735-0199A	BUMPER-RUBBER:.62 OD x.22 THK
24	736-0267	WASH:FLAT:.385 x.87 x.06:HT
25	738-04122	SCR:SHLDR:.437x 1.345:1/4-20
26	738-04125	SCR:SHLD:.374 DIA x 1.05 LG
27	746-04396	CABLE:SELECTOR:SPEED
28	790-00248A	BRKT:PNL
29	790-00311	LVR:SHFT
30	714-0145	PIN:CLICK:.092 x 1.64 LG
31	736-0463	WASH:FLAT: .250 x .630 x .052
