Super 114 136-7040 (1986) Mowing deck 44"/112cm Ricambi

Name: WASHER:FLAT:.640x1.000x.120
Price: 4.73 EUR

WASHER:FLAT:.640x1.000x.120

Articolo numero:

736-0162

Posizione:

DINNORM:

FINISH:MTD STD 701-01000

Modell Year:

Super 114 / 1986

4.73 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

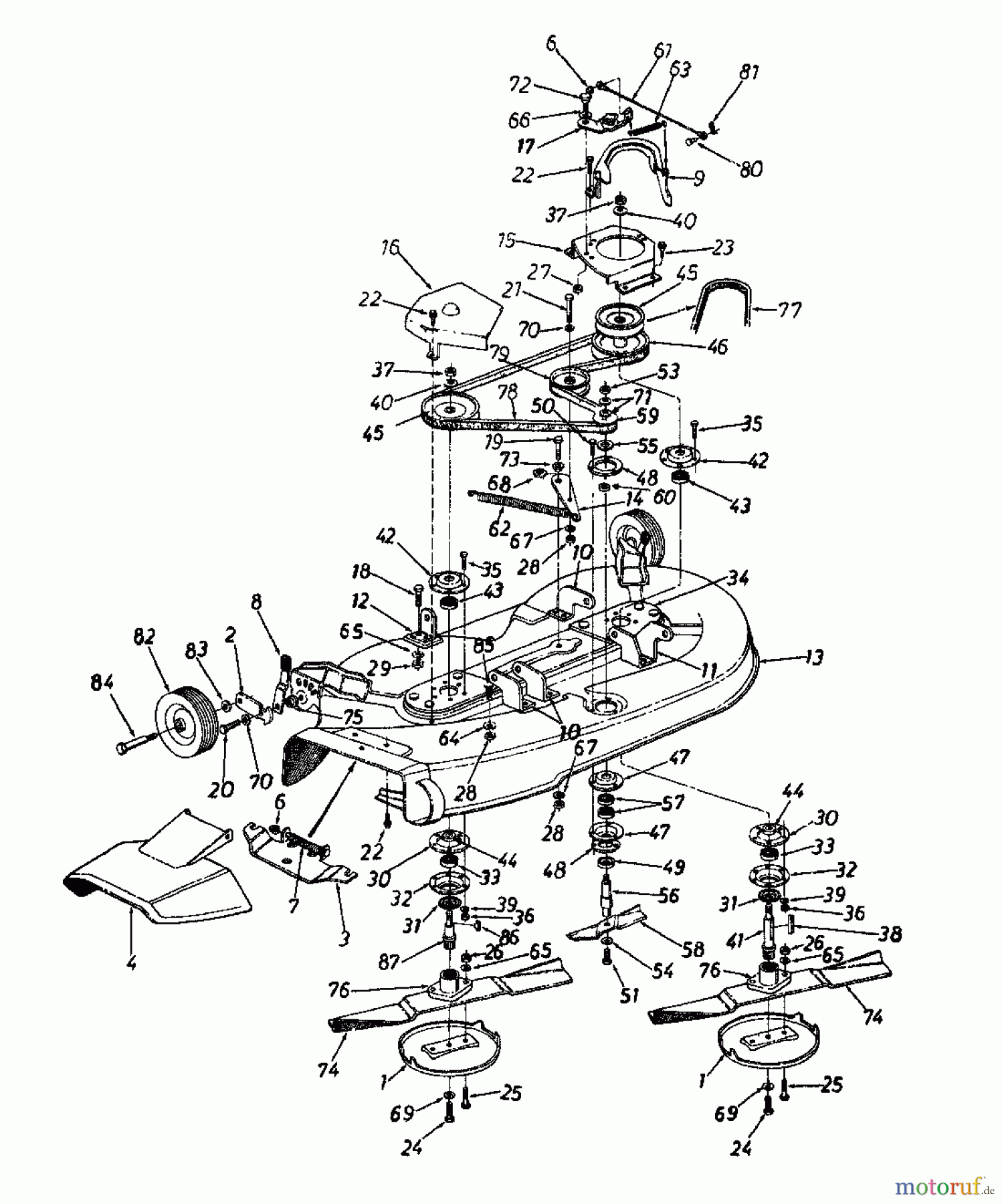

Super Lawn tractors Super 114 136-7040 (1986) Mowing deck 44

Posizione	Articolo numero	Descrizione
1	090.47.950	ANTISCALP-PLATTE
2	10937	PIVOT BAR
3	753-0110	KIT-ADAPTER
4	11633	DEFLECTOR ASSY
6	726-0106	CAP SPEED NUT
7	732-0261	SPRING-TORSION
8	14082	SPRING LEVER + BUTTON
9	14258B	GUARD-BELT
10	16175	BRACKET-DECK HANGER
11	16176	BRACKET BUTTERFLY
12	16180	BRACKET DECK-HANGER
13	16231	DECK WELD ASSY-44-SD
14	16331	BRACKET PIVOT
16	16334	COVER-PULLEY-RH
17	16337	ARM ASSY-SPINDLE
18	710-0118	HHCS:5/16-18:.75:GR2:STD
20	710-0191	HHCS:3/8-24:1.25:GR8:SPEC
22	710-0599	SCREW:TT:1/4-20:0.500:HXINDWSH
23	710-0726	SCR:AB:5/16-12:0.750:HXINDWSH
24	710-0877	SCREW-HEX
25	710-0672	HHCS:5/16-24:1.25:GR5:STD
26	712-0123	NUT:HEX:5/16-24:GR2
27	712-0158	NUT:HEXLK:5/16-18:GRA:CTRLK
28	712-0241	NUT:HEX:3/8-24:GR5
29	712-0267	NUT:HEX:5/16-18:GR2
30	09164A	USE 14088B
31	13703	SHLD:BRG
32	15296A	HOUSING-BRG OPEN 1.85 ID
33	741-0919	BRG:BALL:.787IDx1.85ODx.551
34	16349	BRACKET-IDLER
35	710-0888	HEX SCR SPECIAL
36	712-0123	NUT:HEX:5/16-24:GR2
37	712-0318	NUT:JAM:5/8-18:GR2
38	714-0168	KEY-SQ
39	736-0119	WASHER:LOCK:5/16:SPLT:REG
40	736-0317	WASH:BLVL:.630x1.250x.180
41	738-0632	SPINDLE-BLADE
42	08253B	BEARING HOUSING 1.85 ID
43	741-0919	BRG:BALL:.787IDx1.85ODx.551
44	750-0456	SPACER .790 ID X .347 LG.
45	756-0329	PULLEY
46	756-0470	USE 756-0470A
47	15319B	HOUSING BEARING
48	16348	PLATE-REINF
49	16400	SHIELD-BEARING
50	710-0947	SCREW-HEX WASH HD
51	710-0877	SCREW-HEX
53	712-0922	NUT-HEX JAM
54	736-0105	SPRING WASHER .401 x.870 x.063
55	736-0162	WASHER:FLAT:.640x1.000x.120
56	738-0627	SPINDLE-BLADE
57	741-0155	BRG:BALL:.62x1.38x.43:1623:DS
58	742-0252	BLADE-6.5IN
59	756-0468	SHEAVE-PULLEY
60	736-0302	WASHER-FL
61	727-0290	BRAKE CABLE
62	732-0121	SPR:EXTN:.730 OD X 4.31
63	732-0395	SPRING-EXTENSION
64	736-0105	SPRING WASHER .401 x.870 x.063
65	736-0119	WASHER:LOCK:5/16:SPLT:REG
66	736-0141	WASH:SPR:.440 x.750 x.015
67	736-0141	WASH:SPR:.440 x.750 x.015
67	736-0169	WASH:LOCK:3/8:REGULAR DUTY
68	736-0174	WASHER:WAVE:.625x.885x.015
69	736-0217	WASHER:LOCK:3/8:HEAVY DUTY
70	736-0219	WASH:BELL:.389 x 1.120 x.030
71	736-0253	WASH:BLVL:.525 x 1.000 x.050
72	738-0140	SCR:SHLD:.435 X.178-5/16X.56
73	738-0347	SPCR:SHLDR:.625 ID x.169
74	742-0295	BLADE-21.88IN 55CM
75	748-0279	SHOULDER SPACER
76	748-0300	ADAP:BLADE
77	754-0229	BELT-V 1/
78	754-0293	BELT-V 1/
79	756-0365	PULLEY-IDLER
80	711-0701	PIN:CLVS:.25 DIA x.50
82	734-0974	WHEEL
83	736-0105	SPRING WASHER .401 x.870 x.063
84	738-0455	SCR:SHLDR:.623 x 1.41:3/8-16
85	710-0617	BOLT-RD HD RIB NECK
86	714-0122	KEY-SQ 3/16x.75
87	738-0633	SPINDLE-BLADE
