Super 114 137-7040 (1987) Mowing deck 44"/112cm Ricambi

HHCS:5/16-24:1.25:GR5:STD

Super HHCS:5/16-24:1.25:GR5:STD
Articolo numero:
710-0672
Posizione:
25
DINNORM:
FINISH:701-01000 910-0672
Modell Year:
Super 114 / 1987
3.27 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

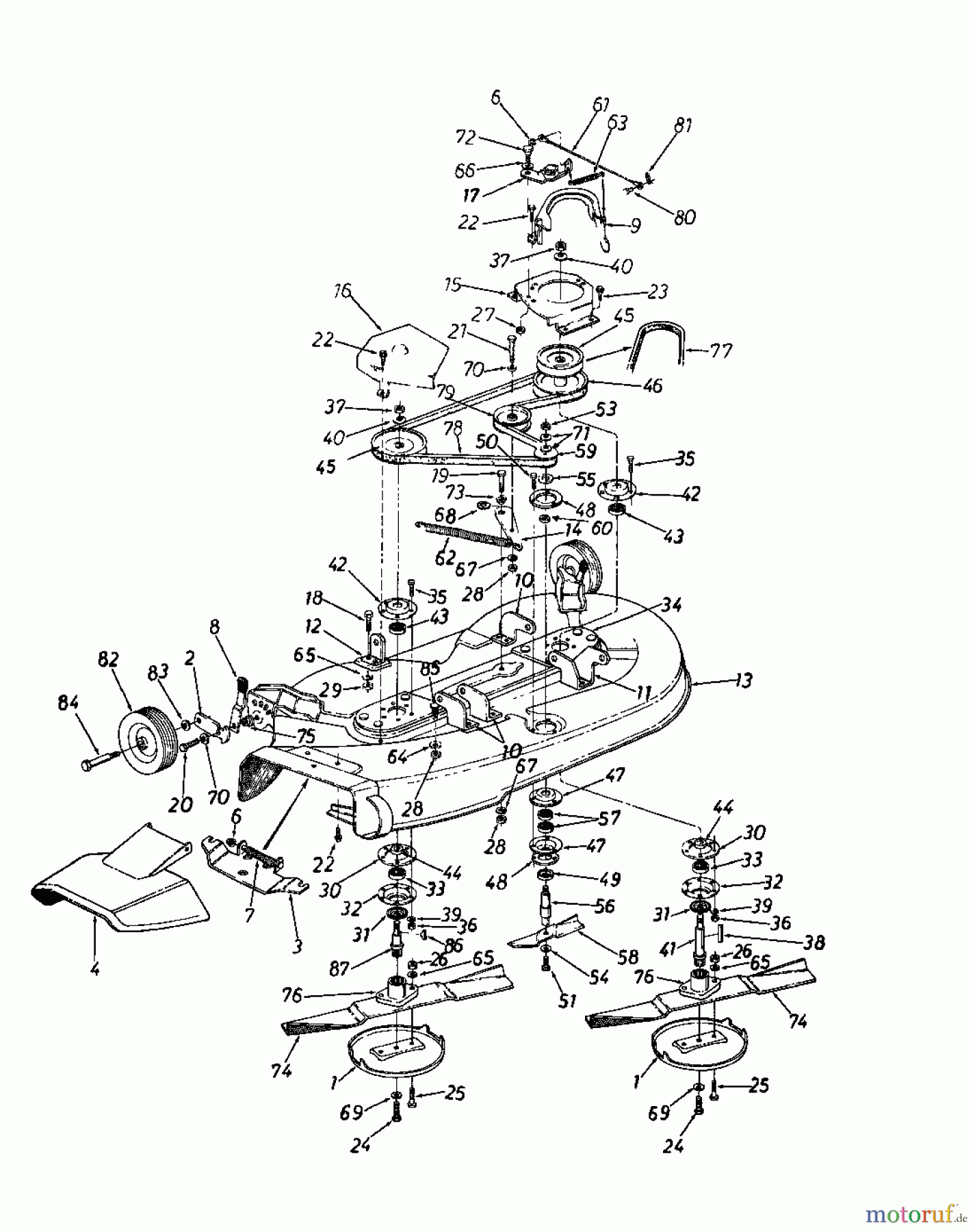

Super Lawn tractors Super 114 137-7040 (1987) Mowing deck 44
PosizioneArticolo numeroDescrizione
1 090.47.950ANTISCALP-PLATTE
2 10937PIVOT BAR
3 753-0110KIT-ADAPTER
4 11933
6 Super CAP SPEED NUT726-0106CAP SPEED NUT
7 732-0261SPRING-TORSION
8 14082SPRING LEVER + BUTTON
9 14258BGUARD-BELT
10 16175BRACKET-DECK HANGER
11 16175BRACKET-DECK HANGER
12 16180BRACKET DECK-HANGER
13 16231DECK WELD ASSY-44-SD
14 16331BRACKET PIVOT
16 16334COVER-PULLEY-RH
17 16337ARM ASSY-SPINDLE
18 710-0118HHCS:5/16-18:.75:GR2:STD
19 710-0152SCREW HHCS:3/8-24:1.00:GR5:STD
20 Super HHCS:3/8-24:1.25:GR8:SPEC710-0191HHCS:3/8-24:1.25:GR8:SPEC
21 710-0459HHCS:3/8-24:1.5:GR5:STD
22 Super SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
23 Super SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
24 710-0877SCREW-HEX
25 Super HHCS:5/16-24:1.25:GR5:STD710-0672HHCS:5/16-24:1.25:GR5:STD
26 712-0123NUT:HEX:5/16-24:GR2
27 712-0158NUT:HEXLK:5/16-18:GRA:CTRLK
28 Super NUT:HEX:3/8-24:GR5712-0241NUT:HEX:3/8-24:GR5
29 712-0267NUT:HEX:5/16-18:GR2
30 09164AUSE 14088B
31 Super SHLD:BRG13703SHLD:BRG
32 15296AHOUSING-BRG OPEN 1.85 ID
32 Super BRG:BALL:.787IDx1.85ODx.551741-0919BRG:BALL:.787IDx1.85ODx.551
33 Super BRG:BALL:.787IDx1.85ODx.551741-0919BRG:BALL:.787IDx1.85ODx.551
34 16349BRACKET-IDLER
35 Super HEX SCR SPECIAL710-0888HEX SCR SPECIAL
36 712-0123NUT:HEX:5/16-24:GR2
37 Super NUT:JAM:5/8-18:GR2712-0318NUT:JAM:5/8-18:GR2
38 714-0168KEY-SQ
39 Super WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
40 736-0317WASH:BLVL:.630x1.250x.180
41 738-0632SPINDLE-BLADE
42 Super BEARING HOUSING 1.85 ID08253BBEARING HOUSING 1.85 ID
43 Super BRG:BALL:.787IDx1.85ODx.551741-0919BRG:BALL:.787IDx1.85ODx.551
44 Super SPACER .790 ID X .347 LG.750-0456SPACER .790 ID X .347 LG.
45 756-0329PULLEY
45 756-0470USE 756-0470A
47 15319BHOUSING BEARING
48 16348PLATE-REINF
49 16400SHIELD-BEARING
50 710-0947SCREW-HEX WASH HD
51 710-0877SCREW-HEX
53 712-0922NUT-HEX JAM
54 Super SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
55 Super WASHER:FLAT:.640x1.000x.120736-0162WASHER:FLAT:.640x1.000x.120
56 738-0627SPINDLE-BLADE
57 741-0155BRG:BALL:.62x1.38x.43:1623:DS
58 742-0252BLADE-6.5IN
59 756-0468SHEAVE-PULLEY
60 736-0302WASHER-FL
61 727-0290BRAKE CABLE
62 732-0121SPR:EXTN:.730 OD X 4.31
63 732-0395SPRING-EXTENSION
64 Super SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
65 Super WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
66 736-0141WASH:SPR:.440 x.750 x.015
67 Super WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
68 Super WASHER:WAVE:.625x.885x.015736-0174WASHER:WAVE:.625x.885x.015
69 Super WASHER:LOCK:3/8:HEAVY DUTY736-0217WASHER:LOCK:3/8:HEAVY DUTY
70 736-0219WASH:BELL:.389 x 1.120 x.030
71 736-0253WASH:BLVL:.525 x 1.000 x.050
72 Super SCR:SHLD:.435 X.178-5/16X.56738-0140SCR:SHLD:.435 X.178-5/16X.56
73 Super SPCR:SHLDR:.625 ID x.169738-0347SPCR:SHLDR:.625 ID x.169
74 742-0295BLADE-21.88IN 55CM
75 748-0279SHOULDER SPACER
75 748-0293ADAPTER-BLADE
76 Super ADAP:BLADE748-0300ADAP:BLADE
77 754-0229BELT-V 1/
78 Super BELT-V 1/754-0293BELT-V 1/
79 Super PULLEY-IDLER756-0365PULLEY-IDLER
80 Super PIN:CLVS:.25 DIA x.50711-0701PIN:CLVS:.25 DIA x.50
81 Super PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
82 734-0974WHEEL
83 Super SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
84 738-0455SCR:SHLDR:.623 x 1.41:3/8-16
85 710-0617BOLT-RD HD RIB NECK
87 738-0633SPINDLE-BLADE
