Super 12-96 N 131-659F (1991) Frame, Seat, Fuel tank Ricambi

SEAT LIFT BRACKET-PHOS & O

Articolo numero:
17239A
Posizione:
53
DINNORM:
17239A
Modell Year:
Super 12-96 N / 1991
9.35 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

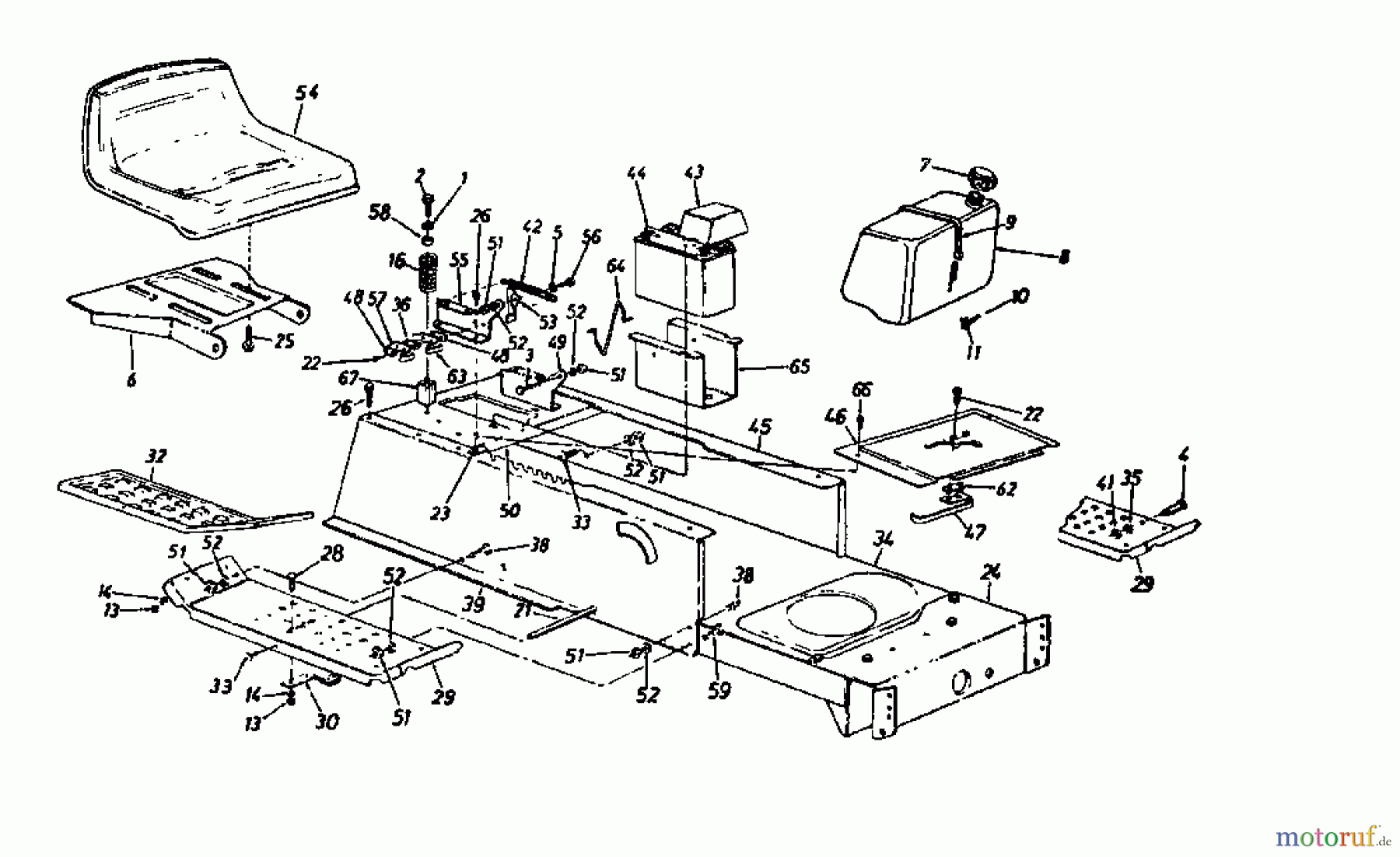

Super Lawn tractors Super 12-96 N 131-659F (1991) Frame, Seat, Fuel tank
PosizioneArticolo numeroDescrizione
1 726-0159BCAP .625"
2 710-1208SCREW:TT:5/16-18:3.500HXINDWSH
3 738-0155BOLT:SHLDR:.435 x.160:5/16-18
4 738-0145SCREW-SHLD
5 736-0141WASH:SPR:.440 x.750 x.015
6 15607D
7 751-3071
8 751-0553TANK:FUEL:1.25 GALLON
9 Super TIE:CBL:30.66 LG726-0209TIE:CBL:30.66 LG
10 Super GAS LINE 15" LG.751-0535-15GAS LINE 15" LG.
11 Super CLAMP HOSE: .490 DIA726-0205CLAMP HOSE: .490 DIA
13 712-0287NUT:HEX:1/4-20:GR2
14 Super WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
16 732-0672
21 738-0526RUNNING BOARD ROD .500 DIA X 2
22 Super SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
23 726-0139SPEED NUT 10Z U-TYPE
24 17621
25 Super SCR:TT:3/8-16:.750 HXINDWSH710-0623SCR:TT:3/8-16:.750 HXINDWSH
26 Super SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
28 Super FLAT HEADED SCREW710-0134FLAT HEADED SCREW
29 17770BOARD-RUNNING
32 731-0910PAD-RH FOOT
32 731-0909PAD-LH FOOT
33 710-0323SCREW
34 17620B
35 Super WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
36 726-0278INSULATING PLATE
38 710-0118HHCS:5/16-18:.75:GR2:STD
39 17622AFRAME ASSY-UPPER-RH
41 712-0798NUT:HEX:3/8-16:GR2
42 732-0581USE 732-0581B
43 731-1200USE 731-0891A
44 725-1633BATTERY 12 V 14 AH
45 17623USE 783-0043
46 17286COVER-HARD TOP
47 725-0759Switch
48 726-0279INSULATING PLATE
49 17951SUPPORT-SEAT BRKT-LH
50 17953PLATE-HITCH
51 712-0267NUT:HEX:5/16-18:GR2
52 Super WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
53 17239ASEAT LIFT BRACKET-PHOS & O
54 757-0348SEAT-MED BACK BLACK
55 17950BRACKET R.H.
56 Super SCR:SHLDR:.437 x .268:5/16-18738-0296SCR:SHLDR:.437 x .268:5/16-18
57 Super SW:OUTER SEAT SPRG725-1303SW:OUTER SEAT SPRG
58 722-0160ELASTEMER BUSHING .930 OD X .5
59 Super SCR:TT:5/16-18:0.875:HXINDWSH710-0650SCR:TT:5/16-18:0.875:HXINDWSH
62 726-0222PLATE-INSULATOR NUT
63 Super SW:INNER SEAT SPRG725-1439SW:INNER SEAT SPRG
64 732-0674LF BATTERY BRACKET
65 17952BATTERY BOX W/COVER
66 726-0159BCAP .625"
67 748-0347SPACER-SPRING
