Novotrac NOVOTRAC 110 136-6821 (1986) Dashboard, Engine hood, Fender Ricambi

Articolo numero:
831-0823
Posizione:
72
Modell Year:
NOVOTRAC 110 / 1986
27.09 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

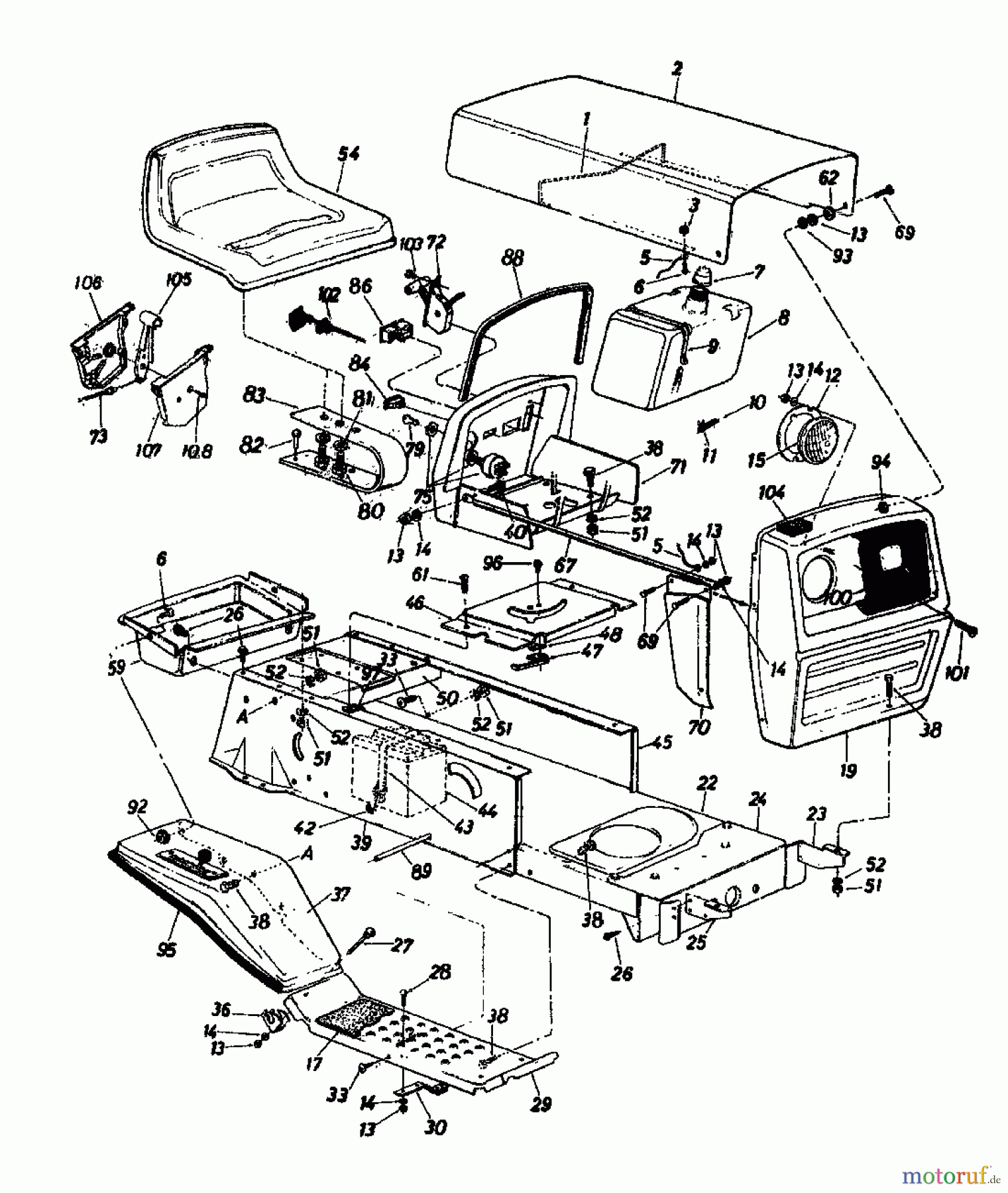

Novotrac Lawn tractors NOVOTRAC 110 136-6821 (1986) Dashboard, Engine hood, Fender
PosizioneArticolo numeroDescrizione
1 732-0414
2 14665
3 712-0272NUT SEMS:#10-24
5 723-0302HOOD STOP X 7.0
6 710-0473SCR:MACH:#10-24:0.500:TRUSPHI
7 723-0333GAUGE-GAS
8 751-0172TANK ASM FUEL 1.3 GAL
9 Novotrac TIE:CBL:30.66 LG726-0209TIE:CBL:30.66 LG
10 751-0173
11 726-0207CLAMP, HOSE
12 09960
13 712-0287NUT:HEX:1/4-20:GR2
14 Novotrac WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
15 725-0222USE 725-1672
19 Novotrac GRILLE14781GRILLE
22 15930RAHMEN,UNTERTEIL
23 13863Frame
24 14619
25 13862SUPPORT DROIT
26 Novotrac SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
27 710-0524SCREW-TRUSS MACH
28 Novotrac FLAT HEADED SCREW710-0134FLAT HEADED SCREW
29 14604
30 761-0192BRAKE ASSY-BLADE
33 710-0323SCREW
36 14671PLATE
37 16197
38 710-0118HHCS:5/16-18:.75:GR2:STD
39 14602
40 710-0258HHCS:1/4-20:.625:GR2:STD
42 747-0475BATTERY STRAP
43 731-0718STRAP-RUBBER
44 725-0514
45 14603
46 16433
47 725-0759Switch
48 726-0222PLATE-INSULATOR NUT
50 14607PLATE-HITCH
51 712-0267NUT:HEX:5/16-18:GR2
52 Novotrac WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
54 757-0285SEAT
59 731-0561TRAY-TOOL
61 710-0351SCR:B:#10-16:0.5":PANPHI
62 736-0173WASH:FL:.28ID:.74OD:.063
67 749-0517ROD-SUPPORT
69 710-0255SCREW
70 14748USE 14748A
71 16184Instrument panel
72 831-0692
72 831-0823
73 Novotrac CABLE746-0501CABLE
75 725-0267SW:IGN:5 PIN
79 Novotrac KEY:IGN:STD725-0201KEY:IGN:STD
80 710-0865SCREW-HEX
81 736-0921WASHER:LOCK:1/2:REGULAR DUTY
82 Novotrac HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
83 732-0458SPRING-SEAT
84 Novotrac SW:ROCKER725-0634SW:ROCKER
86 725-0925SQUARE AMMETER
88 731-0511EDGE GUARD
89 738-0526RUNNING BOARD ROD .500 DIA X 2
92 712-0272NUT SEMS:#10-24
93 735-0144WASHER-RUBBER
94 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
95 731-0516731-0516
96 Novotrac SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
97 726-0139SPEED NUT 10Z U-TYPE
100 731-0465BEZEL-HEADLAMP
101 Novotrac SCR:F:#8-32:0.375 HXINDWSH710-0148SCR:F:#8-32:0.375 HXINDWSH
102 746-0615
103 710-0779
104 722-0157STRIP-FOAM
105 731-0832
106 731-0796
107 731-0797
108 Novotrac HEX. SCREW B:#10-16:0440:HEX710-0919HEX. SCREW B:#10-16:0440:HEX
