LABEL WARNING DRIVE BELT

Articolo numero:
R+A16337
Posizione:
51
DINNORM:
R+A16337
Modell Year:
Self-Propelled / 2008 Self-Propelled / 2007 Self-Propelled / 2007 Self-Propelled / 2007 Self-Propelled / 2008 Self-Propelled / 2008 Self-Propelled / 2008 Pro Cut 50 SPMNCKS / 2011 Pro Cut 50 SPMNC / 2008 Pro Cut 50 SPMNCKS / 2009 Pro Cut 50 SPMNC / 2008
non più disponibile

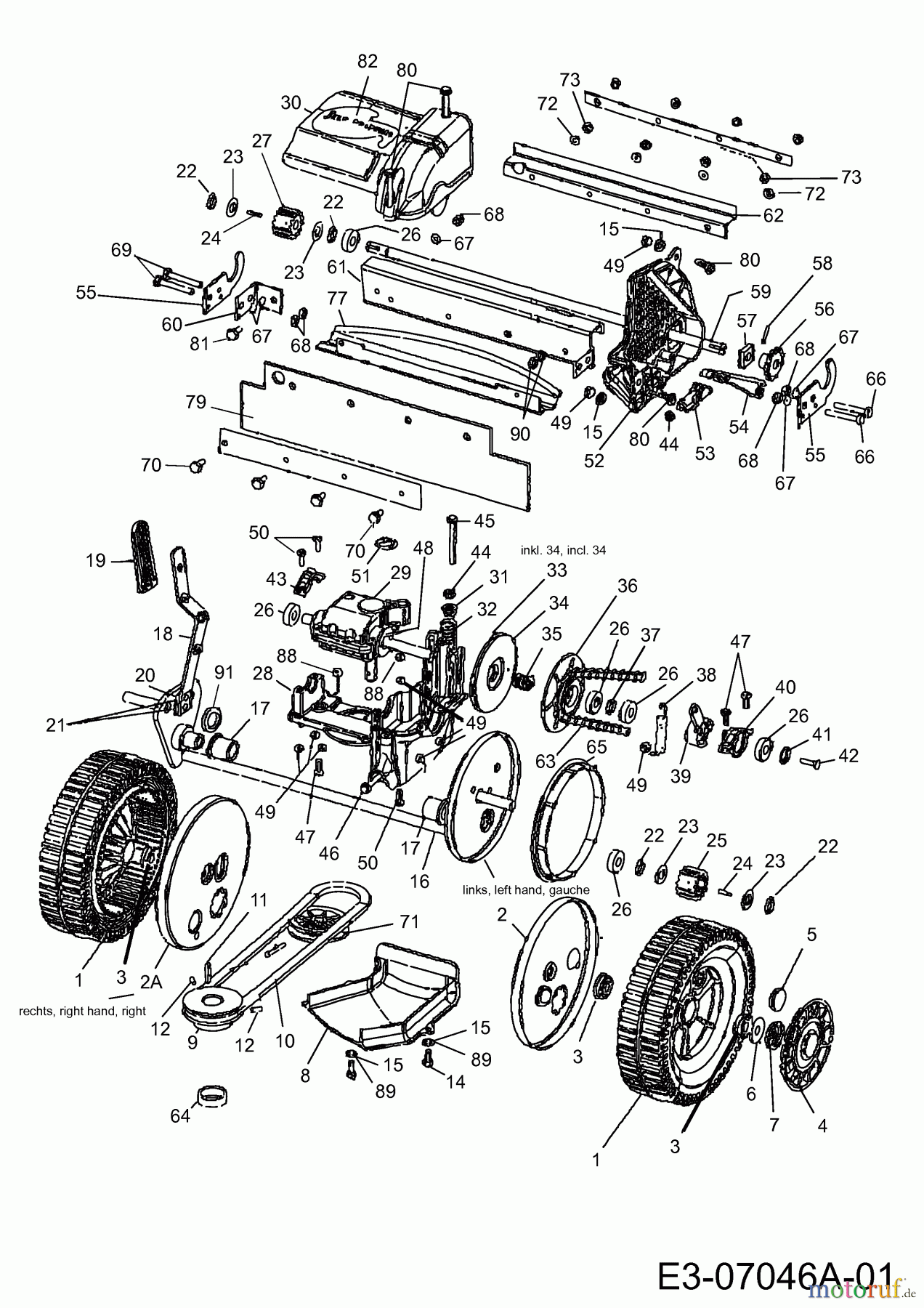

Petrol mower self propelled Pro Cut 50 SPMNC 861M83 (2011) Gear box, Rear wheels
PosizioneArticolo numeroDescrizione
1 R+A10624WHEEL ASSY 8" SP (MOD 60)
2 R+A03381BACK PLATE 20" L.H
2A R+A03380BACK PLATE 20" R.H
3 R+A03353BEARING WHEEL DOM/MOD 50
4 R+A03414HUB CAP (CHROME)
5 R+A3521047PLUG
6 R+A373109WASHER
7 R+A03092RATCH PLATE DOM
8 R+A16075BELT COVER 20/22"
9 R+A16065PULLEY-HYDRO ENGINE
10 R+A16079PULLEY GEARBOX 20/22"S/PROP
11 R+A02051KEIL CRESCENT
12 R+A04075PLUG,PIPE
15 R+A04038WASHER FLAT
16 R+A10639
17 R+A16294BUSHING-CUTTERHEAD
18 R+A10284LEVER H/ADJ 01698/50
19 R+A03250GRIP (DOM)
20 R+A03336PLATE
21 R+A02118RIVET 3/4 X 1/4
22 R+A02090RING-SNAP
23 R+A03373PAWL RETAINER MOD 60
24 R+A03372PAWL MOD 60
25 R+A03370GEAR-15T PINION LH 21"COMM
26 R+A03361SLEEVE-BEARING
27 R+A03371GEAR-15T PINION RH 21"COMM
28 R+A16131DRIVE FRAME
29 R+A10640GEARBOX 20/22"
30 R+A16063FRAME COVER
31 R+A16061CAP SPRING
32 R+A16064SPRING GEARBOX
33 R+A10636CLUTCH PLATE ASSY 61/80
34 R+A03390LINING CLUTCH MOD 60/9664
35 R+A16322CLUTCH SPRING
36 R+A10170CLUTCH PLATE W/O LINING 60-80
37 R+A16056WASHER, THRUST
38 R+A16413SPRING CAM LEVER NEW DEC 2005
39 R+A16057WEIGHT, ACR
40 R+A16060BEARING RETAIN * CAM
41 R+A16139THRUST CAP 61/80
42 R+A04165SCREW M6X12 CSK
43 R+A16062BEARING CUP
44 R+A02111NUT
45 R+A04162SCREW M6X60
46 R+A04161SCREW M6 X 70
47 R+A04091SCREW M5X16
48 R+A16414ROLL PIN GEARBOX DRIVE SHAFT
49 R+A04163NUT NYLOC M5
50 R+A04160SCREW M5-40
51 R+A16337LABEL WARNING DRIVE BELT
52 R+A16066CHAIN CASE 20/22" S.PROP.
53 R+A16069WEDGE TENSIONER 20"/22"
54 R+A16068TENSIONER CHAINSAW
55 R+A16071AXLE SUPPORTS 61/80
56 R+A16072SPROCKET
57 R+A03394SEAL FELT MOD 60
58 R+A02069ROLL PIN 3/4 X 1/8
59 R+A16058
60 R+A03391BRACKET STONE GUARD MOUNT 60
61 R+A03383GUARD STONE MOD 60
62 R+A03393SHIELD DRIVE SHAFT MOD 60
63 R+A16078CHAIN 20"/22"
64 R+A16182SPACER ENG PULLEY 20"
65 R+A03382SEAL WHEEL DUST (6012)
66 R+A02081SETSCREW
67 R+A02027
68 R+A02001NUT 1/4 UNC HEX STD
69 R+A02146Bolt
70 R+A02078SETSCREW 1/4X1/2 UNC HX
71 R+A16077BELT COG/WEDGE MOD.20"
72 R+A02027
73 R+A02001NUT 1/4 UNC HEX STD
77 R+A03604SIDE SHEET
79 R+A03883LIFTER, VALVE
80 R+A04158Screw
81 R+A02078SETSCREW 1/4X1/2 UNC HX
82 R+A16239LABEL S.PROP COVER
88 A04169
89 R+A02234WASHER SHAKEPROOF EXT.97365
90 R+A02235Nut
91 R+A04013WASHER
