Ryobi Akku RY18LMH37A Ricambi

BATTERY BOX

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
5131042836
Posizione:
1052
5.88 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.
4000475164 5133004583

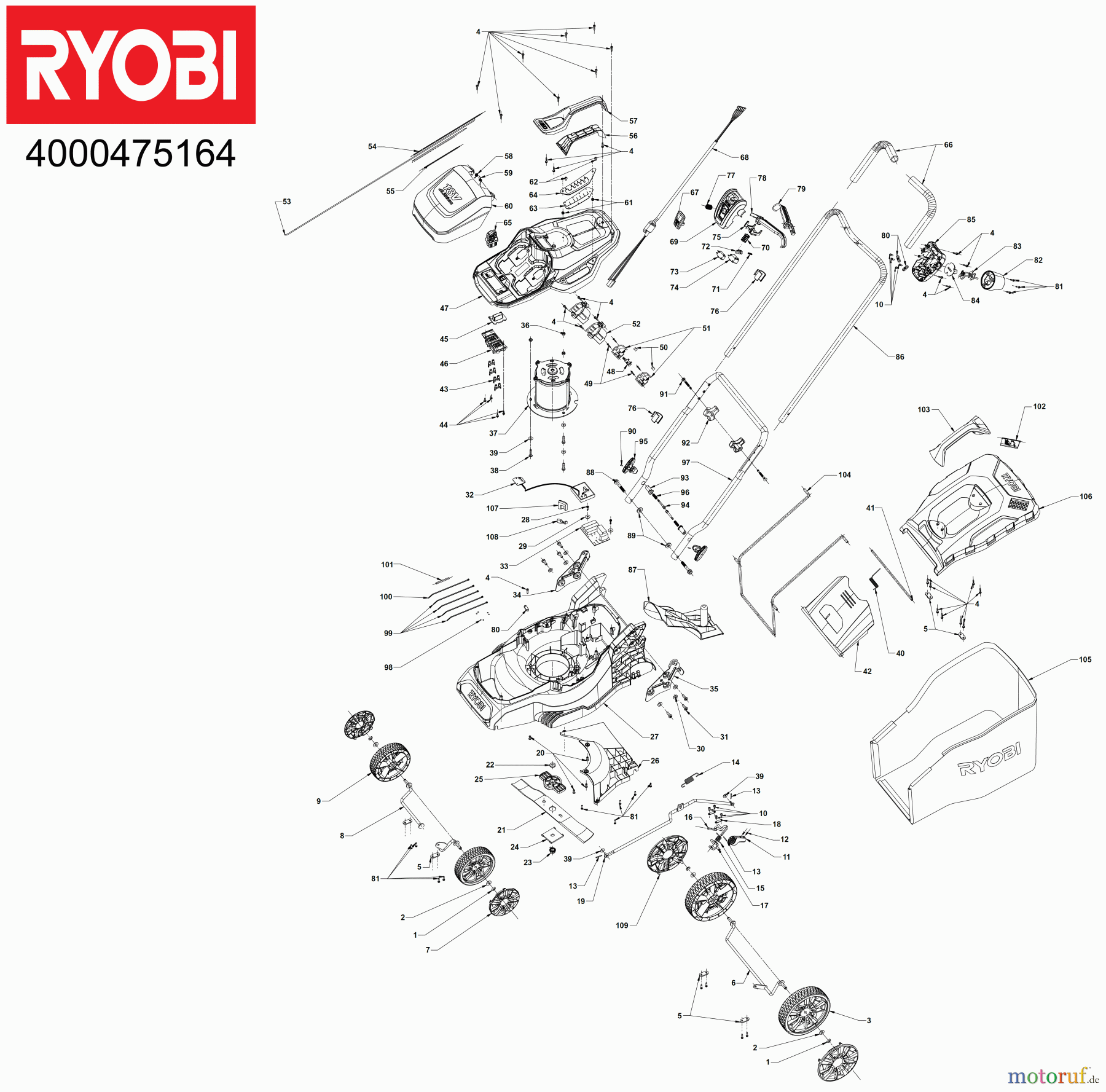

Ryobi Rasenmäher Akku RY18LMH37A Seite 1
PosizioneArticolo numeroDescrizione
1001 1000063920PART NOT DEATAILED
1002 5131035664WASHER 5131035664
1003 5131042803WHEEL 5131042803
1004 5131035603SCREW 5131035603
1005 1000063920PART NOT DEATAILED
1006 5131042804AXLE 5131042804
1007 5131042805COVER 5131042805
1008 5131042807AXLE 5131042807
1009 5131042806WHEEL 5131042806
1010 5131035593SCREW 5131035593
1011 5131042811HANDLE 5131042811
1012 5131035668SCREW 5131035668
1013 5131035642PIN 5131035642
1014 5131042810SPRING 5131042810
1015 5131042815SPRING 5131042815
1016 5131042812SETTING BOW 5131042812
1017 5131042814BRACKET 5131042814
1018 5131042813CHAIN CLAMP BODY 5131042813
1019 5131042809CONNECTOR 5131042809
1020 1000063920PART NOT DEATAILED
1021 5132004638RAC435 L.MOWER REPLACEMENT BLADE
1022 5131000000FLAT WASHER 12,3X20X2MM
1023 5131035663NUT 5131035663
1024 Ryobi BLADE RETAINER 51310363035131036303BLADE RETAINER 5131036303
1025 5131036302BLADE HOLDER 5131036302
1026 5131042808DEFLECTOR 5131042808
1027 1000063920PART NOT DEATAILED
1028 5131044609SCREW 5131044609
1029 5131011791WASHER 5131011791
1030 5131042816WASHER 5131042816
1031 4931461539SCREW 4931461539
1032 5131042858ELECTRONIC 5131042858
1033 5131042859ELECTRONIC 5131042859
1034 5131042819HOLDING BRACKET 5131042819
1035 5131042817HOLDING BRACKET 5131042817
1036 5131035639NUT 5131035639
1037 5131042860MOTOR 5131042860
1038 5131035657SCREW 5131035657
1039 5131035656WASHER 5131035656
1040 5131042825SPRING 5131042825
1041 5131042861LATCH BAR 5131042861
1042 5131042823DOOR 5131042823
1043 5131036294KEY FEMALE TERMINAL 5131036294
1044 5131036253SCREW 5131036253
1045 5131042862SLIDER 5131042862
1046 5131042863PLUG SOCKET 5131042863
1047 5131042864HOUSING 5131042864
1048 Ryobi CONTACT 51310357145131035714CONTACT 5131035714
1049 1000063920PART NOT DEATAILED
1050 5131036300RUBBER CUSHION FOR BATTERY CLIP 5131036300
1051 5131042837ADAPTER SHANK 5131042837
1052 5131042836BATTERY BOX
1053 5131035628WIRE 5131035628
1054 5131036313LEAD WIRE BLACK 280MM
1055 5131036312LEAD WIRE YELLOW 150MM
1056 5131042834CHAIN CLAMP BODY 5131042834
1057 5131042835HOLDING GRIP 5131042835
1058 5131042829SPRING 5131042829
1059 5131042830SPRING 5131042830
1060 5131042828SERVICING LID 5131042828
1061 5131011814NUT 5131011814
1062 1000063920PART NOT DEATAILED
1063 5131042832RUBBER PLATE 5131042832
1064 5131042833ADJUSTER 5131042833
1065 5131036316KEY ASSY FOR DOUBLE POLES RED 5131036316
1066 5131042865FOAM RUBBER 5131042865
1067 5131042866PUSH-BUTTON 5131042866
1068 5131042867WIRE 5131042867
1069 5131042868HOUSING CAP 5131042868
1070 5131036410SPRING 5131036410
1071 5131034745SPRING 5131034745
1072 5131042869SLIDER 5131042869
1073 5131037283SWITCH 5131037283
1074 5131042870SWITCH 5131042870
1075 5131042871SLIDER 5131042871
1076 5131035765CLAMP 5131035765
1077 Ryobi SPRING 51310402065131040206SPRING 5131040206
1078 Ryobi OPERATING HANDLE 51310428485131042848OPERATING HANDLE 5131042848
1079 Ryobi OPERATING HANDLE 51310428495131042849OPERATING HANDLE 5131042849
1080 5131035646CLIP 5131035646
1081 5131041367SCREW 5131041367
1082 5131042872ACCEPTANCE 5131042872
1083 5131042873PLUG SOCKET 5131042873
1084 5131042874CLAMP 5131042874
1085 5131042875HOUSING BOTTOM 5131042875
1086 5131042845HANDLE 5131042845
1087 5131042838MULCH COVER 5131042838
1088 1000063920PART NOT DEATAILED
1089 5131040216WASHER 5131040216
1090 5131040245PIN 5131040245
1091 5131042844SCREW 5131042844
1092 5131042846WINGED SCREW 5131042846
1093 5131042842SLEEVE 5131042842
1094 5131042841PIN 5131042841
1095 Ryobi TURNING KNOB 51310335515131033551TURNING KNOB 5131033551
1096 5131033550SPRING 5131033550
1097 5131042840HANDLE 5131042840
1098 1000063920PART NOT DEATAILED
1099 1000063920PART NOT DEATAILED
1100 5131000000CLAMP
1101 5131034675CONNECTION 5131034675
1102 5131042852INDICATOR SET 5131042852
1103 5131035681HANDLE 5131035681
1104 5131042854FRAME 5131042854
1105 5131042855GRASS-CATCHING BAG 5131042855
1106 5131042853COVER 5131042853
1107 5131042826RUBBER SLEEVE 5131042826
1108 5131042822RUBBER SLEEVE 5131042822
1109 5131042802COVER 5131042802
