Robomow RT700 22BTDABB619 (2022) Robotic lawnmower parts Ricambi

Name: HARNESS GSM
Price: 39.38 EUR

HARNESS GSM

Articolo numero:

725-17150

Posizione:

Modell Year:

RT700 / 2022 RT700 / 2302

Description:

not shown

39.38 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

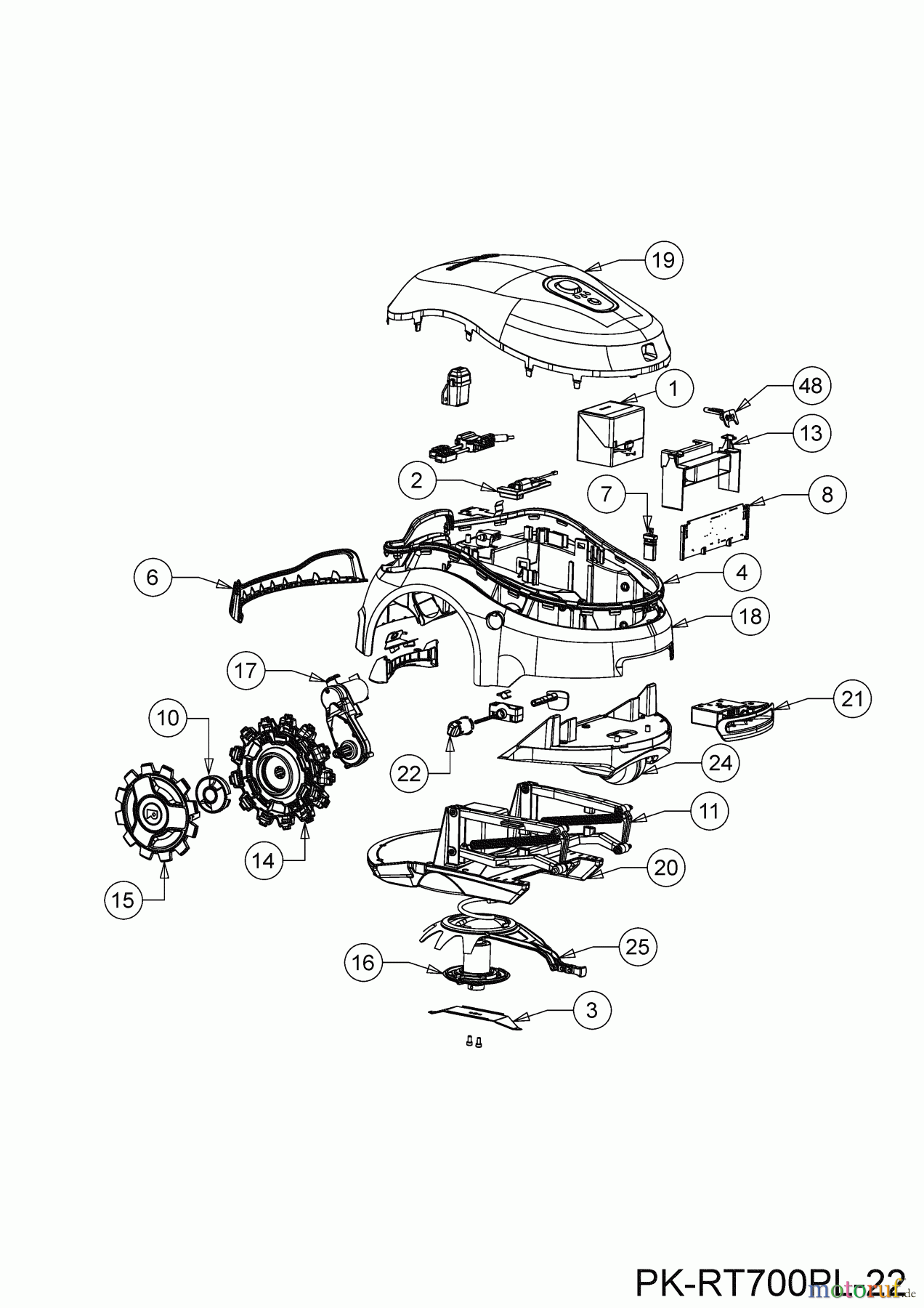

Posizione	Articolo numero	Descrizione
1	BAT9102A	LI-ION BATTERY 4,3 AH
2	753-11291
3	MRK9100A-ET	1 BLADE KIT
4	721-06881A	SEAL CHASSIS RT
6	731-24933	BUMPER R
7	753-11292	PCBA SLIPPAGE BOARD
8	753-11293	MAIN BOARD RT
10	753-11239	SERVICE KIT LOOK DRIVE
11	INJ9022A-01	MOWING ARM LONG PIN RX
13	INJ9067A	BATTERY LOCKER LI-ION
14	753-11225	SERVICE KIT DRIVE WHEEL RT
15	731-26251A	HUBCAP
16	753-11226	SERVICE KIT MOW ENGINE
17	753-11294	MTR ASSY. DRIVE RT
18	622-00742A
19	622-00740	COVER ASSY. RT
20	622-00745	MOWER DECK ASSY RT
21	622-00746	NOZZLE ASSY RT
22	622-00747	MOWING HEIGHT ADJUSTMENT ASSY
24	622-00719	WHEEL RR ASSY.
25	753-11228	SERVICE KIT MULCH CLEANER
27	RNG6011A	WASHER A4X9X0,8 DIN 125
28	RNG9002A	WASHER M4X14 BN 735
29	SCR5005B	SCREW K40X30 PT WN 1451 ZP
30	SCR5009B	SCREW K4X20 WN 1451-ZP TOREX
31	SCR6005A	TORX WN1451 K40 L12
32	SCR9002A	SCREW M5X10 DIN 912
33	745-18645	EJOT K40x35 WN 1451 THORX
34	SCR5009B	SCREW K4X20 WN 1451-ZP TOREX
36	WSB9001D	HARNESS MOWING MOTOR
37	725-17150	HARNESS GSM
38	777D36133	LABEL
39	777I29515	LBL:RDR:DECK HGT ADJ:LUV BAG
48	753-11230	SERVICE KIT KEY
49	710-11680	SCREW K0X20
51	753-11288	GSM MODUL
52	753-11289
53	725-18191	HARNESS GSM
54	725-18305
