Cub Cadet LT3 PS107 13AJ79DS603 (2022) Mowing deck G (42"/107cm) Ricambi

SPCR:SHLDR:IDLR PIVOT

Articolo numero:
748-05037B
Posizione:
42
Modell Year:
LT3 PS107 / 2204
11.97 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

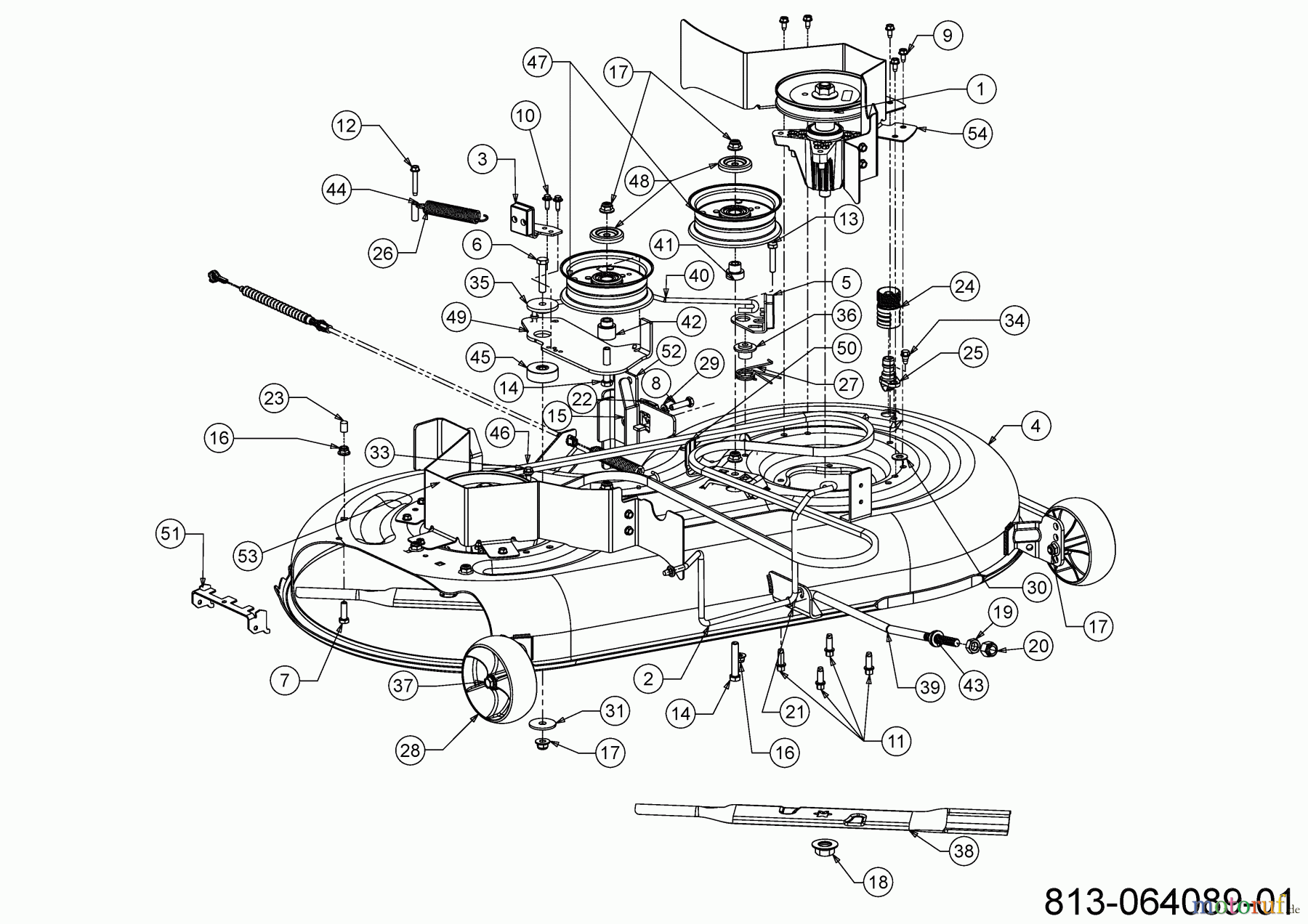

Cub Cadet Lawn tractors LT3 PS107 13AJ79DS603 (2022) Mowing deck G (42
PosizioneArticolo numeroDescrizione
1 618-06991SPINDLE ASM
2 683-04443637ROD-BELT KEEPER
3 683-05182BBRAKE ASM:DECK:RH
4 683-05184C-S
5 683-05396BRAKE ASM:DECK:LH
6 Cub Cadet HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
7 Cub Cadet HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
8 Cub Cadet HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
9 Cub Cadet SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
10 710-06133SCR:CF:M6x1:0.63:HXACRN
11 Cub Cadet SCR:TT:5/16-18:0.88:HXINDWSH710-06322SCR:TT:5/16-18:0.88:HXINDWSH
12 Cub Cadet SCR:TT:1/4-20:1.50:HXINDWSH710-0778SCR:TT:1/4-20:1.50:HXINDWSH
13 710-0805AHHCS:5/16-18:1.50:GR5:FTHD
14 710-3096HHCS:3/8-16:2.00:GR8:STD
15 712-0144NUT:WELD:5/16-18
16 Cub Cadet NUT:HEXFLGLK:5/16-18:GRN5:NYL712-04063NUT:HEXFLGLK:5/16-18:GRN5:NYL
17 Cub Cadet NUT:HEXFLGLK:3/8-16:GRN5:NYLON712-04065NUT:HEXFLGLK:3/8-16:GRN5:NYLON
18 Cub Cadet NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
19 712-3048NUT:JAM:1/2-13:GR5
20 Cub Cadet NUT:HEXLK:1/2-13:GRN8:NYLON712-3083NUT:HEXLK:1/2-13:GRN8:NYLON
21 Cub Cadet PIN COTTER:BOW - TIE 91714-04043PIN COTTER:BOW - TIE 91
22 Cub Cadet GEAR:DECK:ADJUSTMENT717-04074GEAR:DECK:ADJUSTMENT
23 720-05010CAP:VINYL: .290 x .500
24 721-04041ADAPER:WATER NOZZLE
25 731-07487NOZ:DECK WSH
26 732-04629SPR:EXTN:HOOK:.750 X 4.77
27 732-05151ASPR:TORSN:BRAKE:LH
28 Cub Cadet WHEEL:DECK:BALL:5.0 DIA734-06305AWHEEL:DECK:BALL:5.0 DIA
29 Cub Cadet WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
30 Cub Cadet WASH:FLAT:0.396X0.885X0.060736-0300WASH:FLAT:0.396X0.885X0.060
31 736-3039WASH:FLAT:.406 x 1.5 x .105
32 736-3078WASH:FLAT:.344 x 1.00 x 063:HD
33 Cub Cadet SCR:SHLDR:0.370X0.108:TT738-04184ASCR:SHLDR:0.370X0.108:TT
34 Cub Cadet SCR:SHLDR:0.348x0.183:TT738-04278SCR:SHLDR:0.348x0.183:TT
35 738-05082SPCR:SHLDR:0.380X0.971X0.200
36 738-05272SPCR:SHLDR:DBL:.750 x .135
37 738-06694SCREW-SHOULDER
38 742-04312-LBLADE:CUT:21,23 LG LO-LIFT
39 747-05141BROD:LIFT:DECK:FRT:13.0
40 747-06538ROD BRAKE PUSH
41 Cub Cadet SPCR:SHLDR:0.383X0.667X0.446748-05029ASPCR:SHLDR:0.383X0.667X0.446
42 748-05037BSPCR:SHLDR:IDLR PIVOT
43 748-06584CUP:PIVOT:DECK LIFT
44 Cub Cadet SPCR:0.255 X 0.376 X 1.030 LG750-0566ASPCR:0.255 X 0.376 X 1.030 LG
45 750-06184SPCR:.385 ID x 1.75 OD x .585
46 Cub Cadet BELT:V:A:96.5:ARAM:C2754-04060CBELT:V:A:96.5:ARAM:C2
47 Cub Cadet PUL:IDLR:4.50" DIA756-05034APUL:IDLR:4.50" DIA
48 Cub Cadet CAP:PULLEY:HD783-08389CAP:PULLEY:HD
49 783-08654CBRACKET IDLER
50 783-08690A-SKEEPR:BELT
51 783-08924ABRKT:STOP:CHUTE:DUAL
52 783-12788
53 783-13883
54 783-13884
